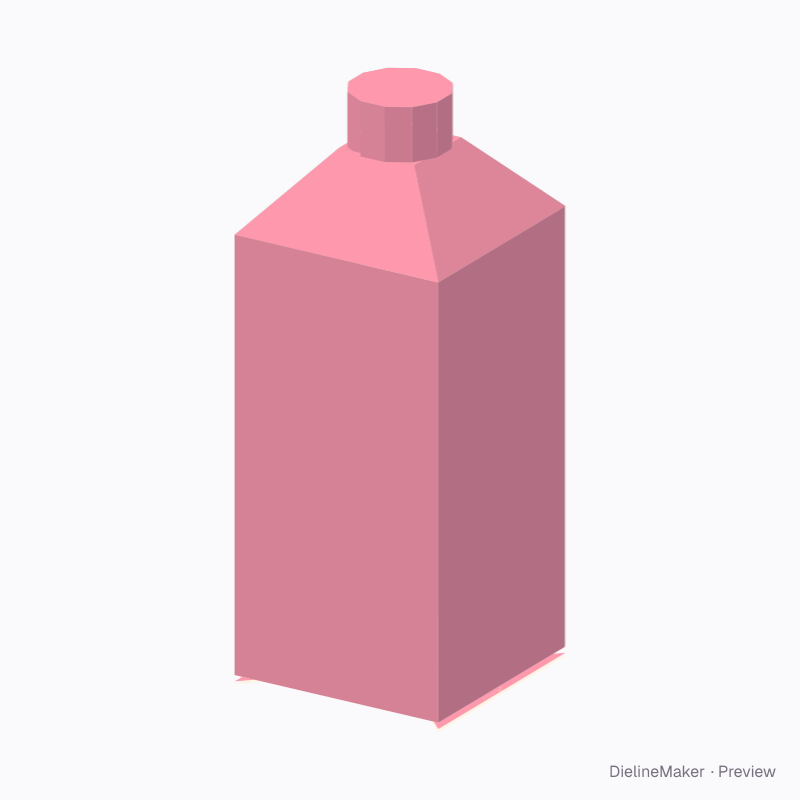

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BOTTLE-TOP-CARTON-01Food
Bottle-top carton 500 ml dieline
A rectangular carton body with a folded, fin-sealed base, topped by a moulded shoulder that narrows to a round neck and screw cap. Print the sleeve here; the plastic top is shown for presentation and is specified by the filling-system supplier. A ready-sized preset of the bottle-top liquid carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside63 × 63 × 125 mm
Outside63.9 × 63.9 × 125.9 mm
Flat blank265.8 × 166.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BOTTLE-TOP-CARTON-01
- Inside size
- Length 63 · Width 63 · Body height 125 mm
- Size range
- Length 50–150 · Width 40–120 · Body height 80–300 mm
- Manufacturing
- 63.5 × 63.5 × 125.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Carton sleeve and folded base, Moulded shoulder, Screw cap
- Board area
- 0.051 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PESBS 300Food kraft PESBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BOTTLE-TOP-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.45 mm for Food SBS, PE-coated 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontCarton sleeve and folded base | 63.5 × 125.5 | L + T × H + T |
| Left sideCarton sleeve and folded base | 63.5 × 125.5 | W + T × H + T |
| BackCarton sleeve and folded base | 63.5 × 125.5 | L + T × H + T |
| Right sideCarton sleeve and folded base | 63 × 125.5 | W × H + T |
| Glue flapCarton sleeve and folded base | 12 × 125.5 | – × H + T |
| Bottom (front half)Carton sleeve and folded base | 63.5 × 31.7 | – |
| Bottom finCarton sleeve and folded base | 63.5 × 9 | – |
| Bottom (back half)Carton sleeve and folded base | 63.5 × 31.7 | – |
| Bottom ear foldCarton sleeve and folded base | 44.9 × 22.4 | – |
| Bottom ear fold ×3Carton sleeve and folded base | 22.4 × 44.9 | – |
| Bottom ear fin ×3Carton sleeve and folded base | 31.7 × 9 | – |
| Bottom ear finCarton sleeve and folded base | 31.7 × 9 | – |
| Neck plateMoulded shoulder | 23.4 × 23.4 | – |
| Shoulder (front)Moulded shoulder | 23.4 × 29.9 | – |
| Shoulder (right)Moulded shoulder | 29.9 × 23.4 | – |
| Shoulder (back)Moulded shoulder | 23.4 × 29.9 | – |
4 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Shoulder heightmm
- Cap diametermm
- Cap colour4 options
The bottle-top liquid carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bottle-top carton 500 ml yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
