DM-TRIANGULAR-FRIES-CONE-01Food
Pointed triangular fries cone dieline

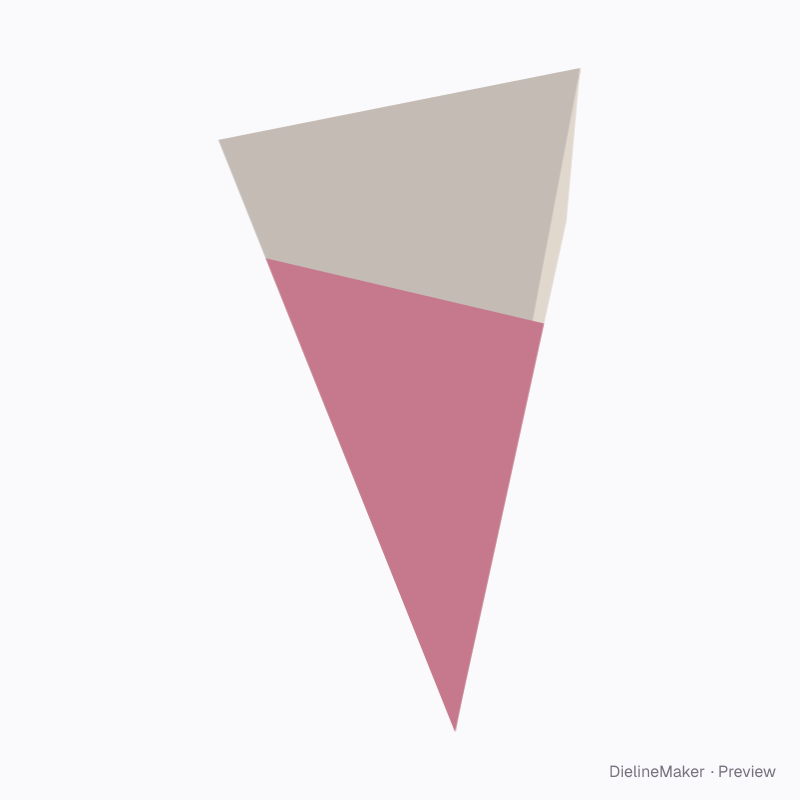

A pointed serving cone of three flat triangular faces meeting at the bottom point, with an open triangular mouth and a lower front for easy access. One blank with a glued back seam. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 95 × 170 mm
Outside110 × 95 × 170 mm
Flat blank181.5 × 275.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TRIANGULAR-FRIES-CONE-01
- Inside size
- Mouth width 110 · Mouth depth 95 · Height 170 mm
- Size range
- Mouth width 50–250 · Mouth depth 40–250 · Height 60–350 mm
- Manufacturing
- 110 × 95 × 170 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.027 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- Food kraft, PE-lined 320 g · 0.5 mm caliper
- Board options
- Food kraft PEKraft 350SBS 350SBS 18 pt
- Good for

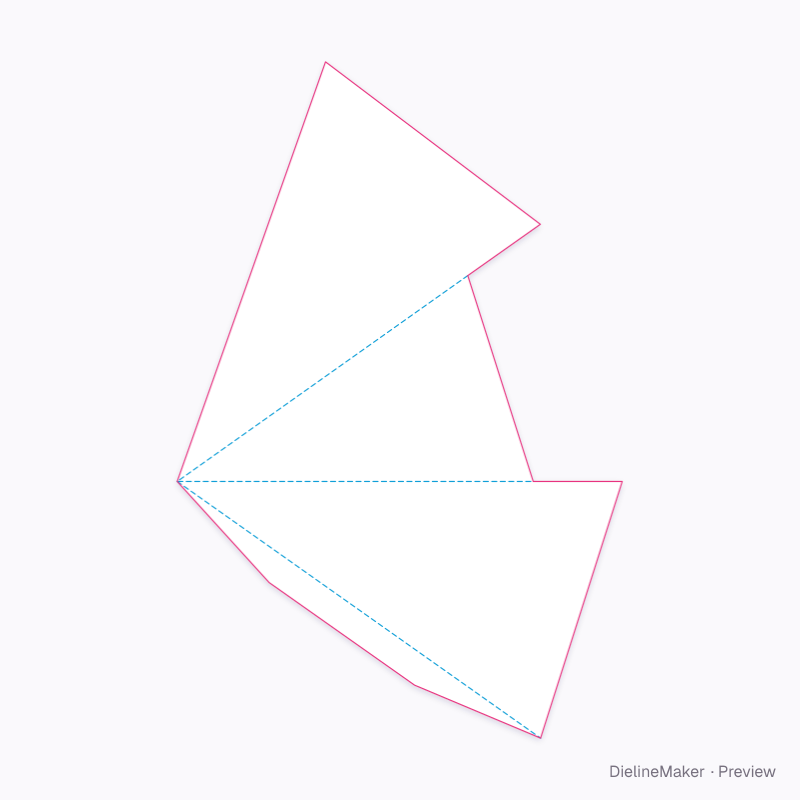

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
