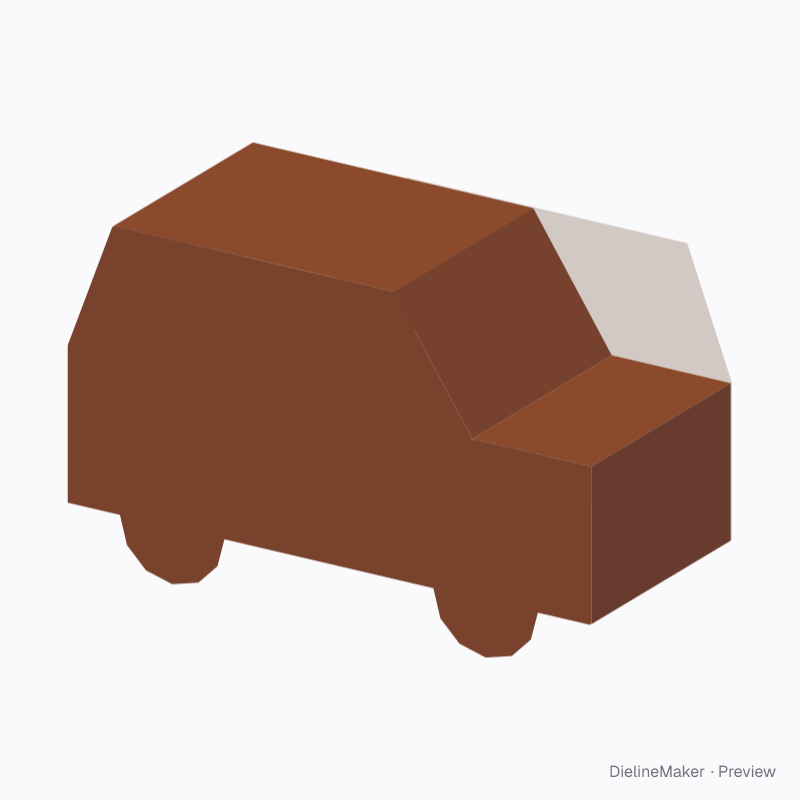

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAR-SHAPED-CARTON-01Shapes
Hatchback car favour box dieline
A vehicle-shaped gift carton: two car-profile side faces with sloping windscreen and rear window, joined by a creased band that follows the profile. Semicircular wheels are retained below the floor line. A ready-sized preset of the car-shaped carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 60 × 70 mm
Outside141 × 61 × 84.5 mm
Flat blank407.5 × 76 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAR-SHAPED-CARTON-01
- Inside size
- Length 140 · Width 60 · Height 70 mm
- Size range
- Length 80–500 · Width 30–250 · Height 40–300 mm
- Manufacturing
- 140.5 × 60 × 70.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Left car side, Right car side, Profile band (roof, screens, bonnet, bumpers, floor)
- Board area
- 0.048 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for

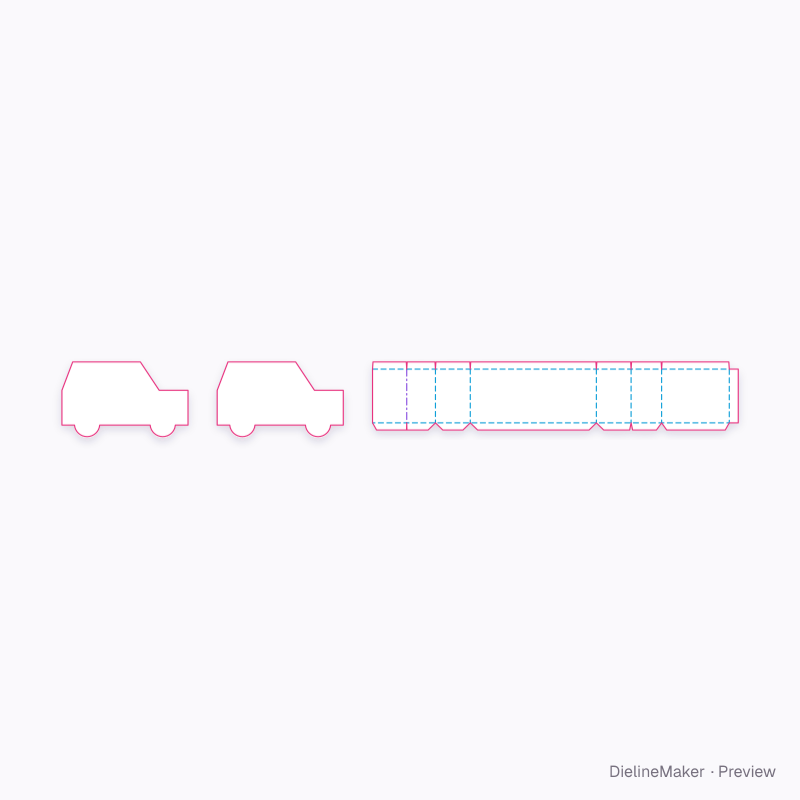

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CAR-SHAPED-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Car side faceLeft car side | 140.5 × 84.5 | L + T × – |
| Car side faceRight car side | 140.5 × 84.5 | L + T × – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 38.1 × 60 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 38.1 × 8 | – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 32 × 60 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 32 × 8 | – |
| Base wall ×2Profile band (roof, screens, bonnet, bumpers, floor) | 38.8 × 60 | – × W |
| Cap bonding tab ×2Profile band (roof, screens, bonnet, bumpers, floor) | 38.8 × 8 | – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 140.5 × 60 | L + T × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 140.5 × 8 | L + T × – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 33.9 × 60 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 33.9 × 8 | – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 75.4 × 60 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 75.4 × 8 | – |
| Wall glue seamProfile band (roof, screens, bonnet, bumpers, floor) | 10 × 60 | – × W |
| Back-face bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 38.1 × 8 | – |
5 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Bonnet / boot heightmm
- Bonnet lengthmm
- Boot lengthmm
- Windscreen slope runmm
- Rear window slope runmm
- Retained wheelson / off
- Wheel diametermm
- Face bonding tabsmm
The car-shaped carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hatchback car favour box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
