Parametric structureShapes
Trapezoid box dieline
A tuck-end carton that tapers toward the top: trapezoid front and back, sloping sides, tucks at both ends. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 60 × 100 mm
Outside121 × 61 × 101 mm
Flat blank362.6 × 284.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Base length 120 · Depth 60 · Height 100 mm
- Size range
- Base length 40–400 · Depth 20–250 · Height 30–400 mm
- Manufacturing
- 120.5 × 60.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.056 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

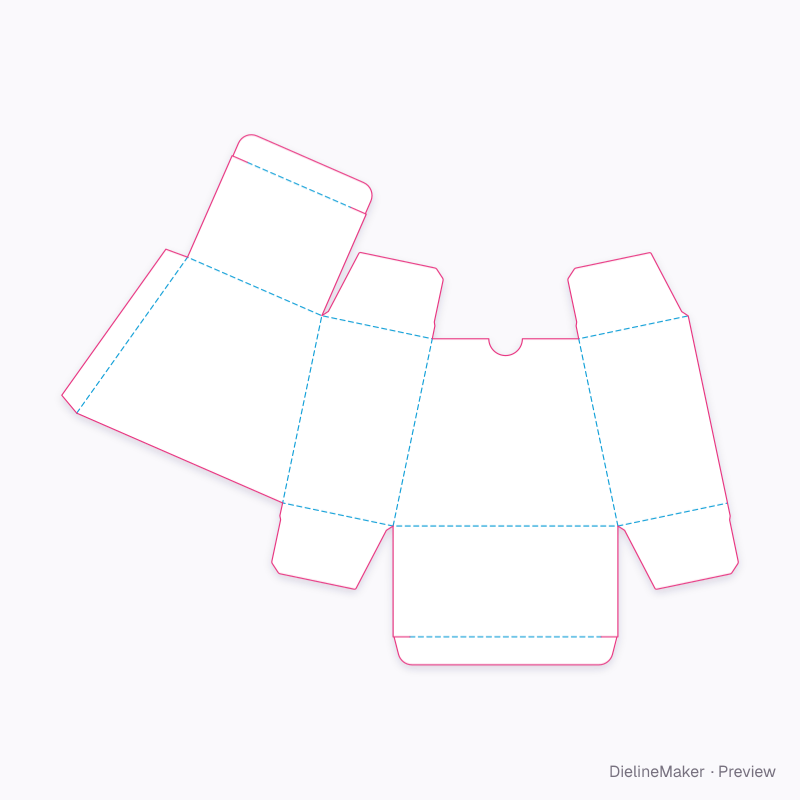

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 120.5 × 100.5 | L + T × H + T |
| Left side | 60.5 × 102.7 | W + T × √((H + T)² + run²) |
| Back | 118 × 102.7 | – |
| Right side | 60 × 102.7 | W × √((H + T)² + run²) |
| Glue flap | 12 × 102.7 | – |
| Top closure | 78.5 × 59.5 | – × W − T |
| Tuck | 77.5 × 15 | – |
| Top dust flap | 60.5 × 37.5 | W + T × – |
| Top dust flap | 60 × 37.5 | W × – |
| Bottom closure | 120.5 × 59.5 | L + T × W − T |
| Tuck | 119.5 × 15 | L − T × – |
| Bottom dust flap | 60.5 × 37.5 | W + T × – |
| Bottom dust flap | 60 × 37.5 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Top lengthmm
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off

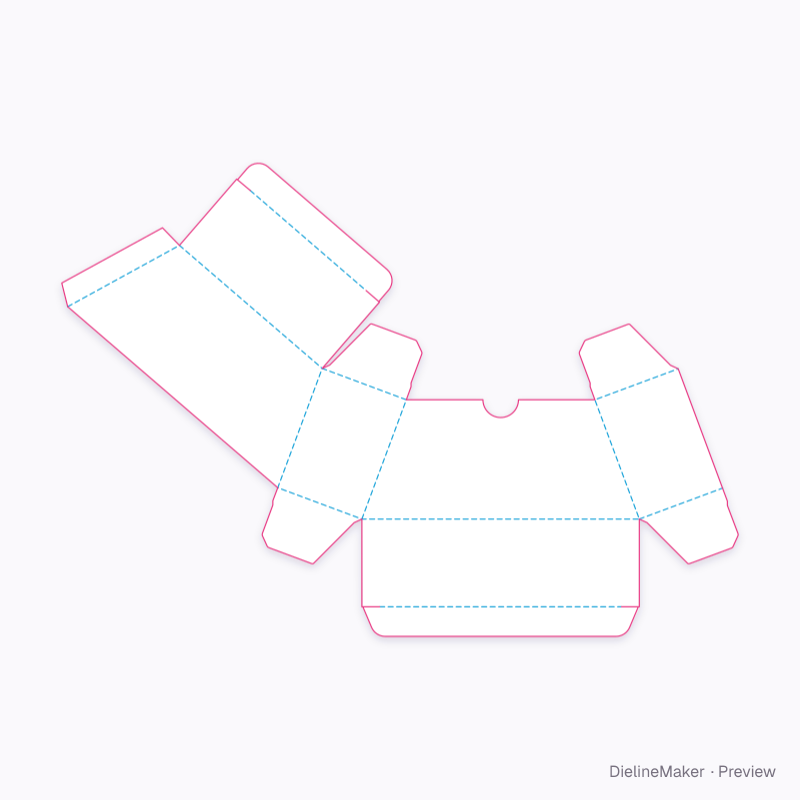

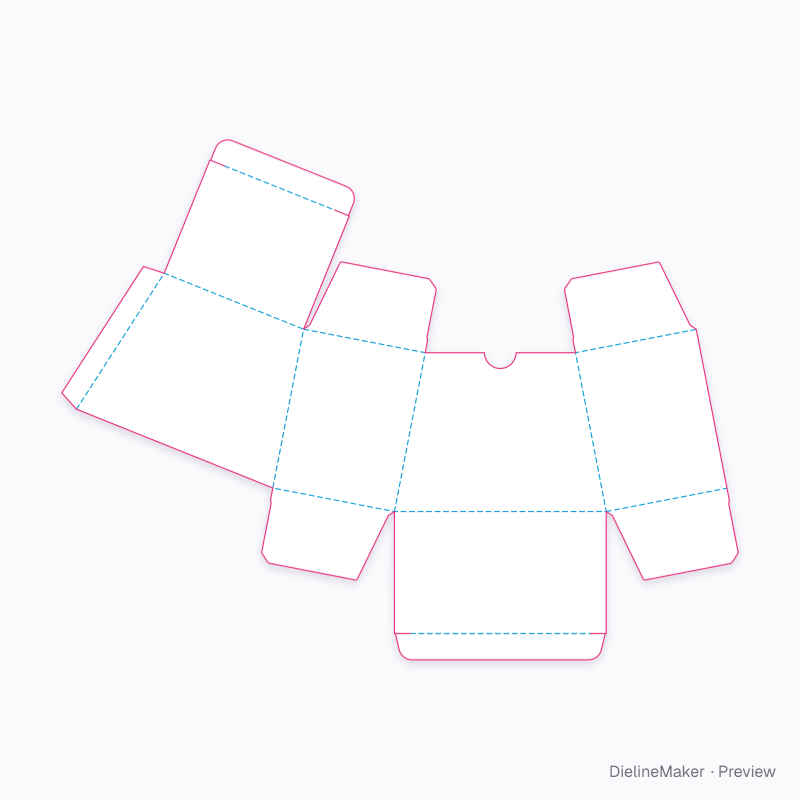

Ready-sized trapezoid box presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

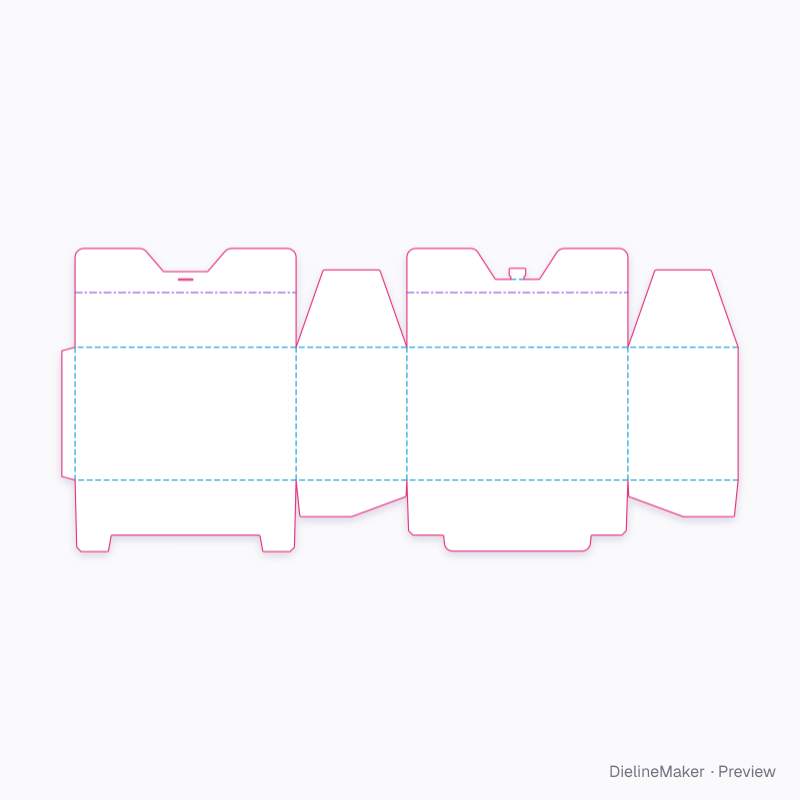

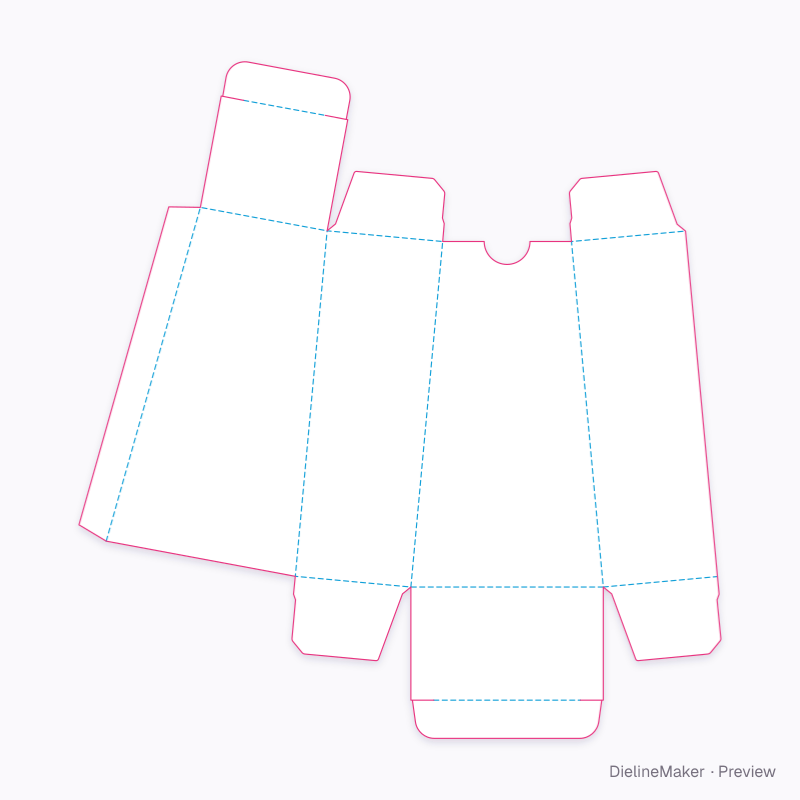

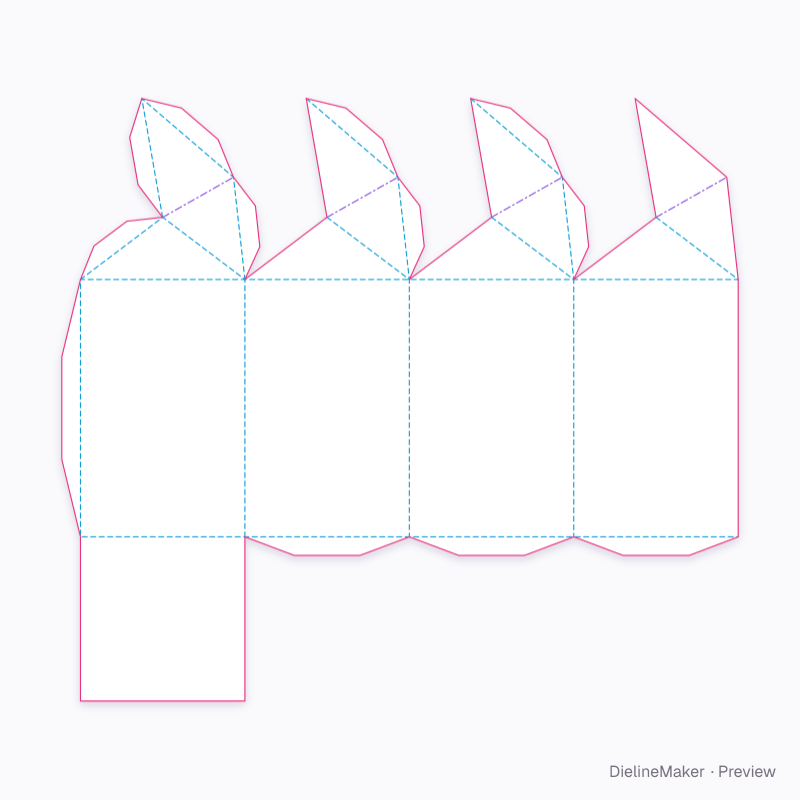

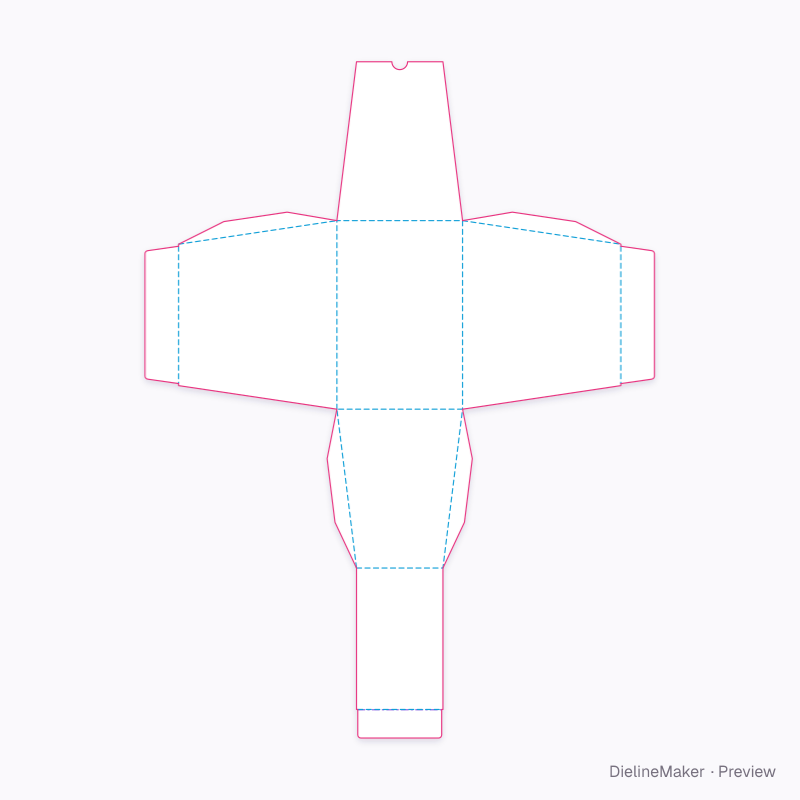

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this trapezoid box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
