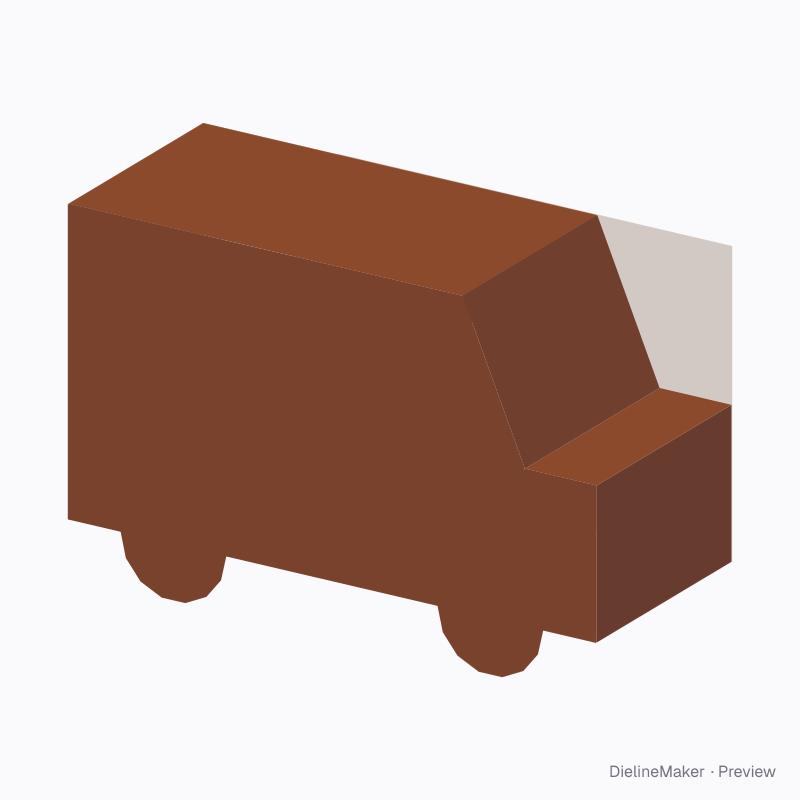

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CAR-SHAPED-CARTON-01Shapes
Van-shaped box dieline
A vehicle-shaped gift carton: two car-profile side faces with sloping windscreen and rear window, joined by a creased band that follows the profile. Semicircular wheels are retained below the floor line. A ready-sized preset of the car-shaped carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 90 × 120 mm
Outside221 × 91 × 142.6 mm
Flat blank671.4 × 106 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CAR-SHAPED-CARTON-01
- Inside size
- Length 220 · Width 90 · Height 120 mm
- Size range
- Length 80–500 · Width 30–250 · Height 40–300 mm
- Manufacturing
- 220.5 × 90 × 120.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Left car side, Right car side, Profile band (roof, screens, bonnet, bumpers, floor)
- Board area
- 0.122 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CAR-SHAPED-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Car side faceLeft car side | 220.5 × 142.5 | L + T × – |
| Car side faceRight car side | 220.5 × 142.5 | L + T × – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 65.9 × 90 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 65.9 × 8 | – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 30 × 90 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 30 × 8 | – |
| Base wall ×2Profile band (roof, screens, bonnet, bumpers, floor) | 60 × 90 | – × W |
| Cap bonding tab ×2Profile band (roof, screens, bonnet, bumpers, floor) | 60 × 8 | – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 220.5 × 90 | L + T × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 220.5 × 8 | L + T × – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 60.5 × 90 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 60.5 × 8 | – |
| Base wallProfile band (roof, screens, bonnet, bumpers, floor) | 164.5 × 90 | – × W |
| Cap bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 164.5 × 8 | – |
| Wall glue seamProfile band (roof, screens, bonnet, bumpers, floor) | 10 × 90 | – × W |
| Back-face bonding tabProfile band (roof, screens, bonnet, bumpers, floor) | 65.9 × 8 | – |
5 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Bonnet / boot heightmm
- Bonnet lengthmm
- Boot lengthmm
- Windscreen slope runmm
- Rear window slope runmm
- Retained wheelson / off
- Wheel diametermm
- Face bonding tabsmm
The car-shaped carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this van-shaped box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
