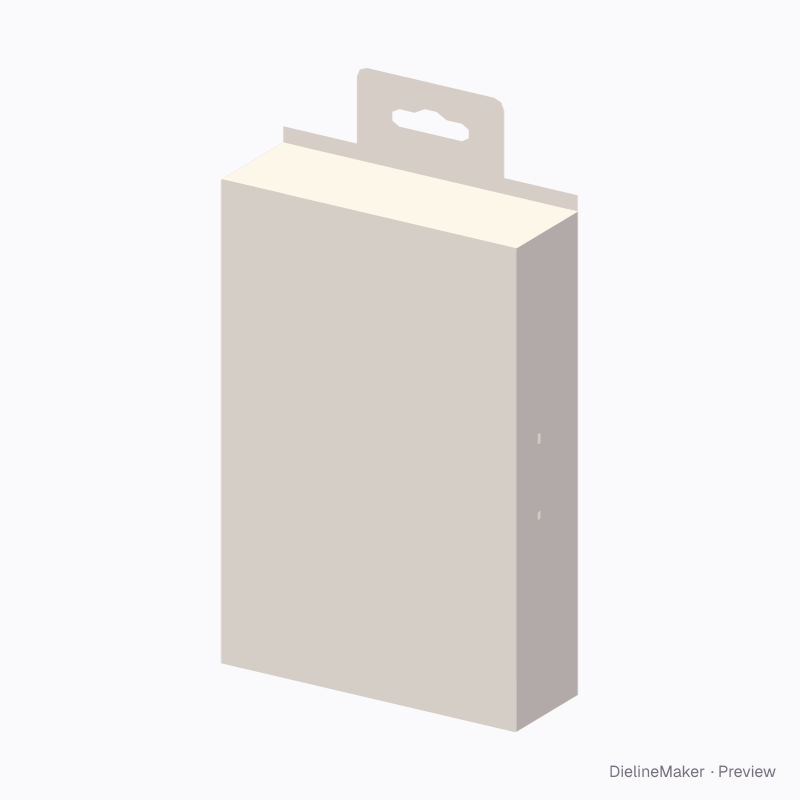

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PRESENTATION-LEAF-01Tuck end
Hanging window reveal carton dieline
A windowed tuck carton with a book-opening cover and a single-ply Euro-slot tab above the back. A ready-sized preset of the window carton with presentation leaf — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 40 × 180 mm
Outside121.2 × 41.2 × 181.2 mm
Flat blank471.3 × 290 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PRESENTATION-LEAF-01
- Inside size
- Length 120 · Depth 40 · Height 180 mm
- Size range
- Length 50–300 · Depth 25–200 · Height 60–400 mm
- Manufacturing
- 120.6 × 40.6 × 180.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.102 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for

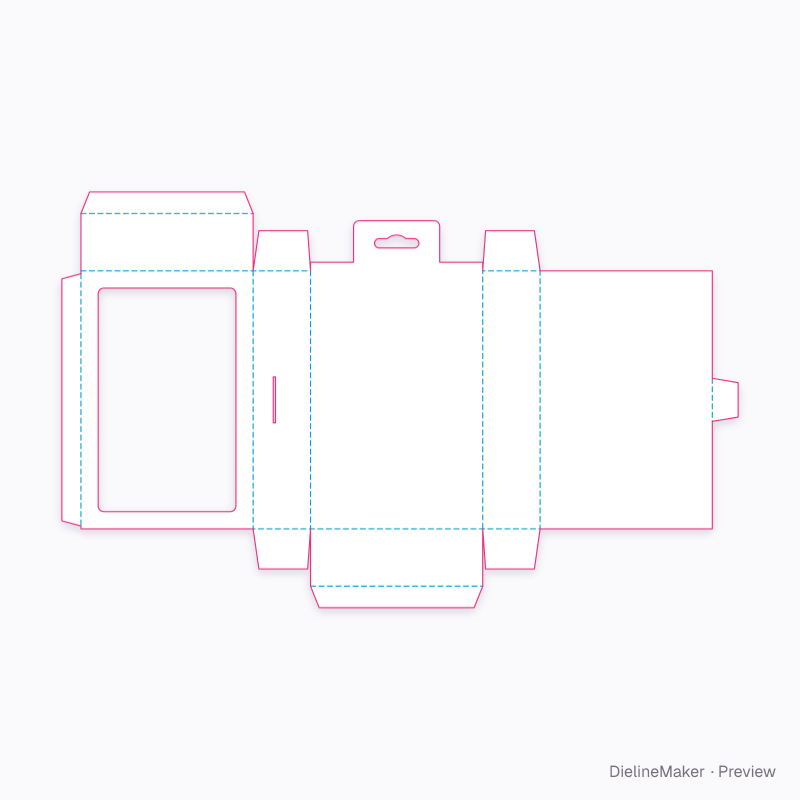

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The hanging window reveal carton erects in 7 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upRight side, Back with hanging tab, Left side
- 2Fold the glue flap and glue the seamGlue flap
- 3Fold the dust flaps inDust flap, Tuck and 3 more
- 4Close the lidTop lid, Bottom lid
- 5Tuck the flaps inTuck
- 6Close the end flapsPresentation leaf
- 7Lock the tabsLocking tongue
How the blank is sized
Score-to-score panel sizes of this DM-PRESENTATION-LEAF-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front frame | 120 × 180 | L × H |
| Right side | 40 × 180 | W × H |
| Glue flap | 13.3 × 176 | – |
| Top lid | 120 × 40 | L × W |
| Back with hanging tab | 120 × 180 | L × H |
| Dust flap ×4 | 40 × 28 | W × – |
| Tuck ×2 | 120 × 15 | L × – |
| Left side | 40 × 180 | W × H |
| Bottom lid | 120 × 40 | L × W |
| Presentation leaf | 120 × 180 | L × H |
| Locking tongue | 18 × 30 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Window frame widthmm
- Locking tonguescount
- Tuck depthmm
- Hanging tabon / off
- Header heightmm
