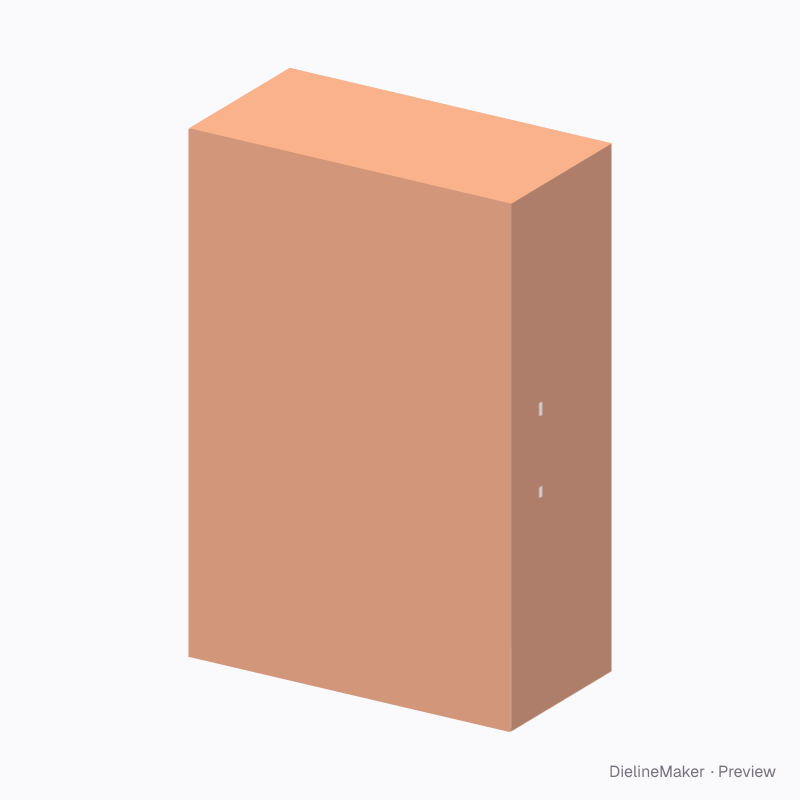

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PRESENTATION-LEAF-01Tuck end
Cosmetic leaf carton 100×50×150 dieline
A windowed tuck-end carton with a full-height presentation leaf that opens like a book cover and locks with tongues. A ready-sized preset of the window carton with presentation leaf — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 50 × 150 mm
Outside101 × 51 × 151 mm
Flat blank432 × 280 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PRESENTATION-LEAF-01
- Inside size
- Length 100 · Depth 50 · Height 150 mm
- Size range
- Length 50–300 · Depth 25–200 · Height 60–400 mm
- Manufacturing
- 100.5 × 50.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.082 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-PRESENTATION-LEAF-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front frame | 100 × 150 | L × H |
| Right side | 50 × 150 | W × H |
| Glue flap | 14 × 146 | – |
| Back | 100 × 150 | L × H |
| Dust flap ×4 | 50 × 35 | W × – |
| Left side | 50 × 150 | W × H |
| Top lid | 100 × 50 | L × W |
| Bottom lid | 100 × 50 | L × W |
| Presentation leaf | 100 × 150 | L × H |
| Tuck ×2 | 100 × 15 | L × – |
| Locking tongue | 18 × 25 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Window frame widthmm
- Locking tonguescount
- Tuck depthmm
