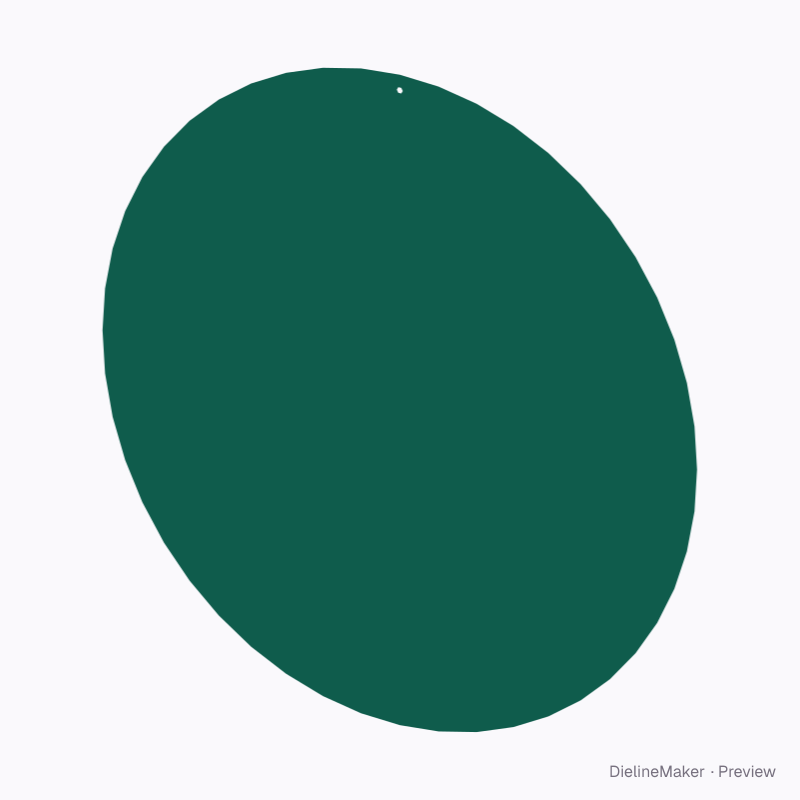

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Round ceiling dangler 500 mm dieline
A 500 mm disc on micro-flute, stiff enough not to curl. A ready-sized preset of the ceiling dangler — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside500 × 500 mm
Outside500 × 500 mm
Flat blank500 × 500 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 500 · Height 500 mm
- Size range
- Width 150–1000 · Height 150–1000 mm
- Manufacturing
- 500 × 500 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.196 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- F-flute micro corrugated · 0.9 mm caliper
- Board options
- FBB 400SBS 350F-fluteE-flute WKraft 350PET 0.3SBS 18 pt
- Good for
The flat dieline

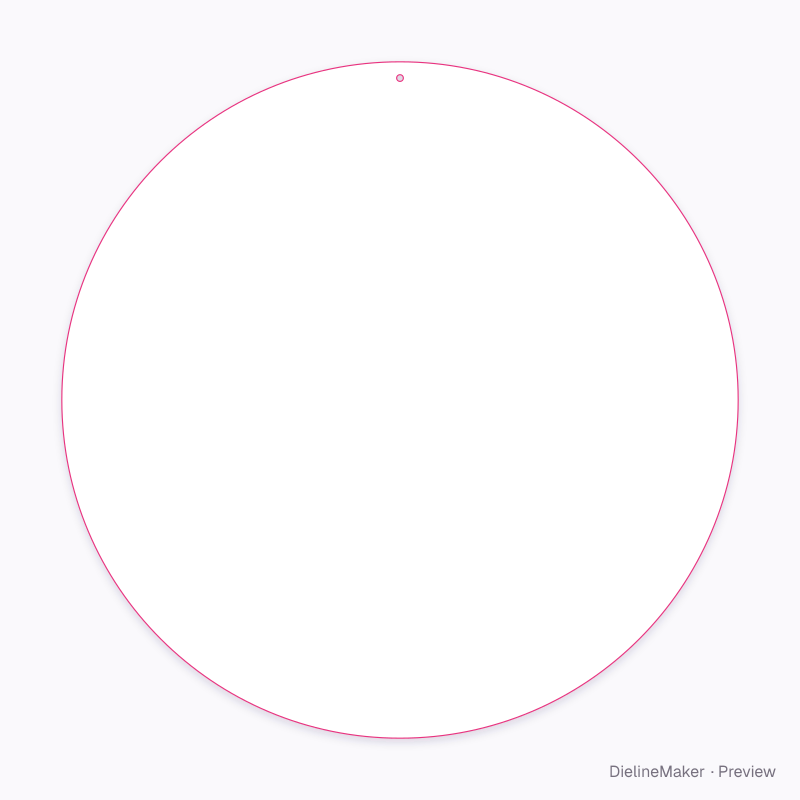

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
