Preview image

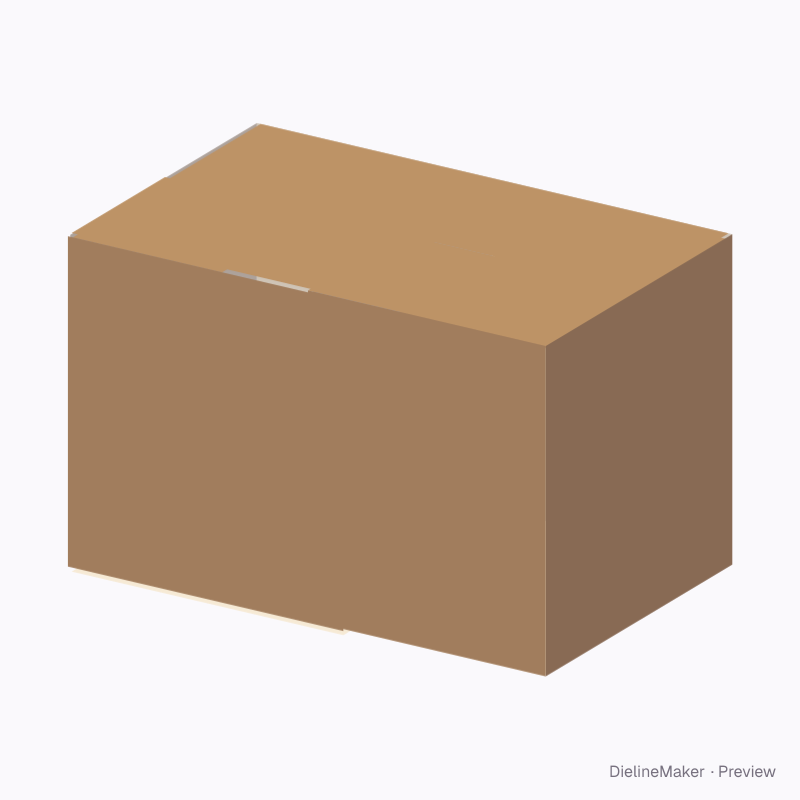

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0228Shipping
Two-cell shipper 400×250×250 dieline
Two products side by side, kept apart by the built-in partition. A ready-sized preset of the slotted box with integral partition — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 250 × 250 mm
Outside406.4 × 259.6 × 269.2 mm
Flat blank1626.8 × 509.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0228
- Inside size
- Length 400 · Width 250 · Height 250 mm
- Size range
- Length 160–1200 · Width 80–1000 · Height 60–1000 mm
- Manufacturing
- 403.2 × 253.2 × 256.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.749 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0228 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front (half) | 201.6 × 256.4 | – |
| Left side | 253.2 × 256.4 | – |
| Back | 403.2 × 256.4 | L + T × – |
| Right side | 253.2 × 256.4 | – |
| Front (half, joint) | 233.6 × 256.4 | – |
| Partition | 250 × 250 | – |
| Partition glue tab | 32 × 250 | – |
| Bottom outer flap | 198.4 × 126.6 | – |
| Bottom inner flap ×2 | 246.8 × 126.6 | – |
| Bottom outer flap | 396.8 × 126.6 | L − T × – |
| Bottom outer flap | 230.4 × 126.6 | – |
| Top outer flap | 198.4 × 126.6 | – |
| Top inner flap ×2 | 246.8 × 126.6 | – |
| Top outer flap | 396.8 × 126.6 | L − T × – |
| Top outer flap | 230.4 × 126.6 | – |
