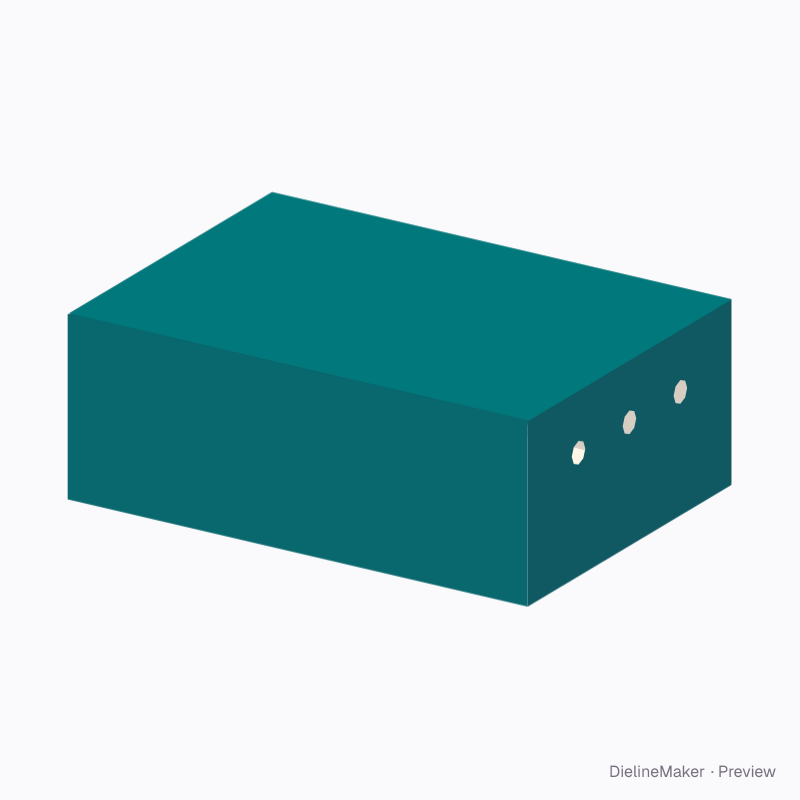

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Rice meal takeaway box — Fried chicken box dieline
Editable 190 × 135 × 70 mm starting point using fried chicken box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the fried chicken box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside190 × 135 × 70 mm
Outside190.9 × 135.9 × 70.9 mm
Flat blank663.4 × 302.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 190 · Width 135 · Height 70 mm
- Size range
- Length 100–350 · Width 60–250 · Height 40–150 mm
- Manufacturing
- 190.4 × 135.4 × 70.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.136 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Food SBS, PE-coated 300 g · 0.45 mm caliper
- Board options
- Food SBS PEFood kraft PESBS 350Kraft 350E-flute WE-flute KSBS 18 pt
- Good for

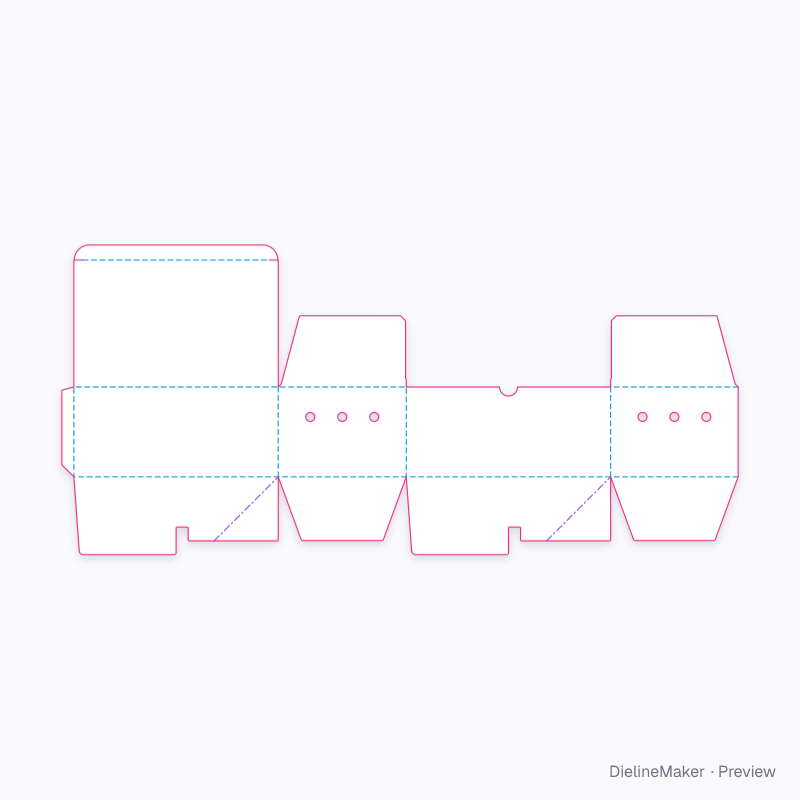

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.45 mm for Food SBS, PE-coated 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 190.4 × 70.5 | L + T × H + T |
| Left side | 135.4 × 70.5 | W + T × H + T |
| Back | 190.4 × 70.5 | L + T × H + T |
| Right side | 135 × 70.5 | W × H + T |
| Glue flap | 12 × 70.5 | – × H + T |
| Top closure | 190.4 × 134.6 | L + T × W − T |
| Top tuck | 189.6 × 15 | L − T × – |
| Top dust flap | 135.4 × 75 | W + T × – |
| Top dust flap | 135 × 75 | W × – |
| Crash-lock flap (back) | 190.4 × 82.2 | L + T × – |
| Glued web | 47.5 × 95.8 | – |
| Bottom side flap | 135.4 × 67.5 | W + T × – |
| Crash-lock flap (front) | 190.4 × 82.2 | L + T × – |
| Glued web | 95.8 × 47.5 | – |
| Bottom side flap | 135 × 67.5 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Vents per endcount
- Vent diametermm
- Bottom2 options
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Notch radiusmm

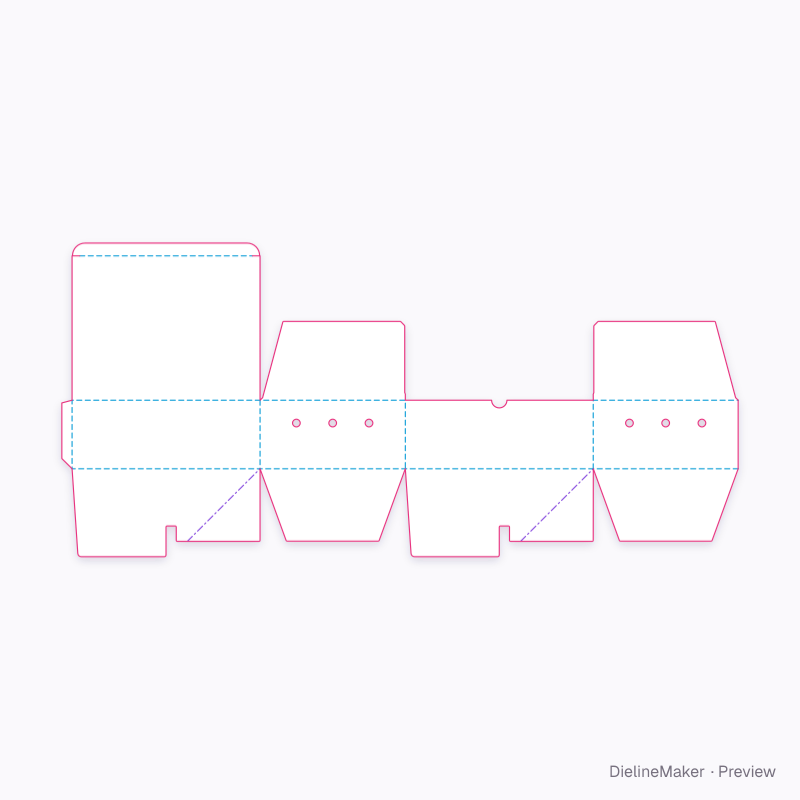

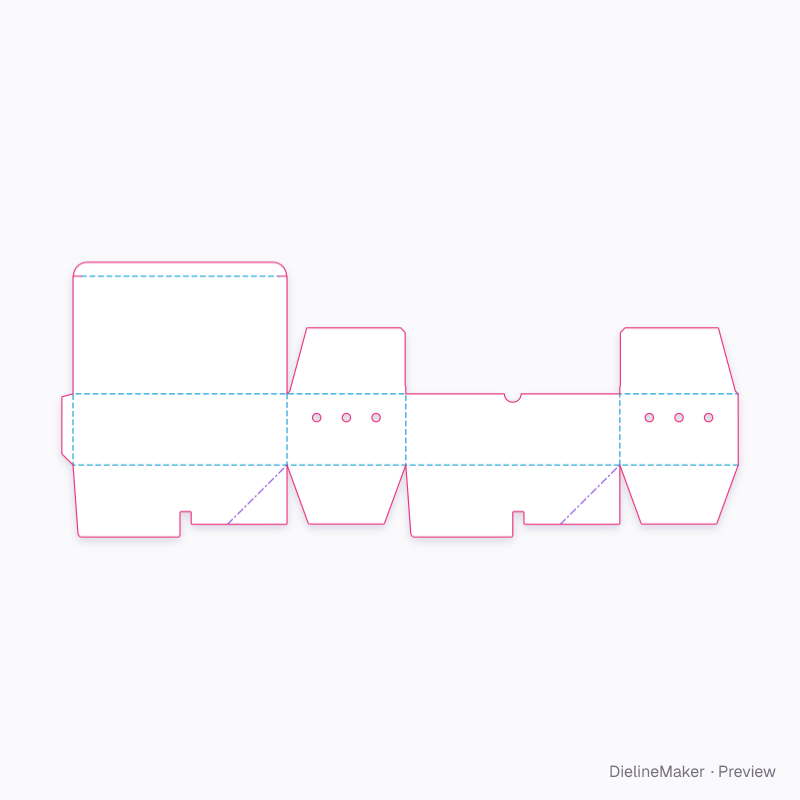

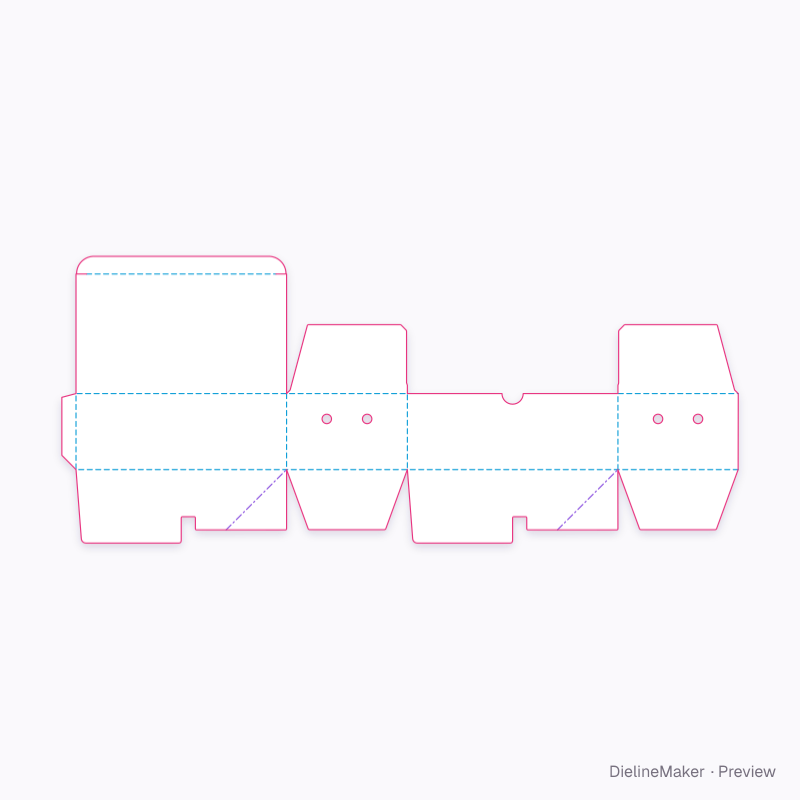

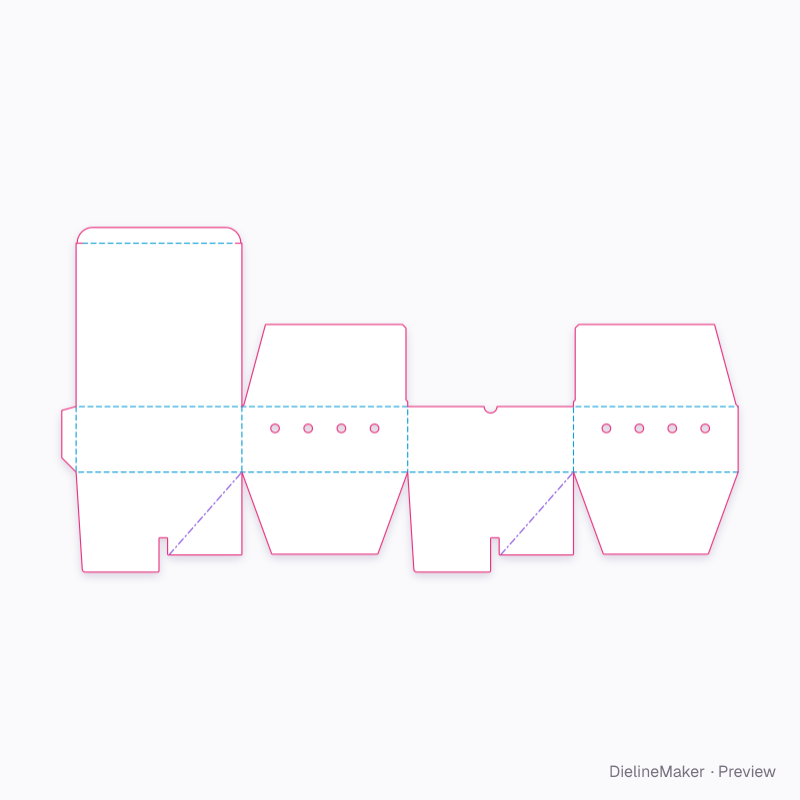

The fried chicken box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this rice meal takeaway box — fried chicken box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
