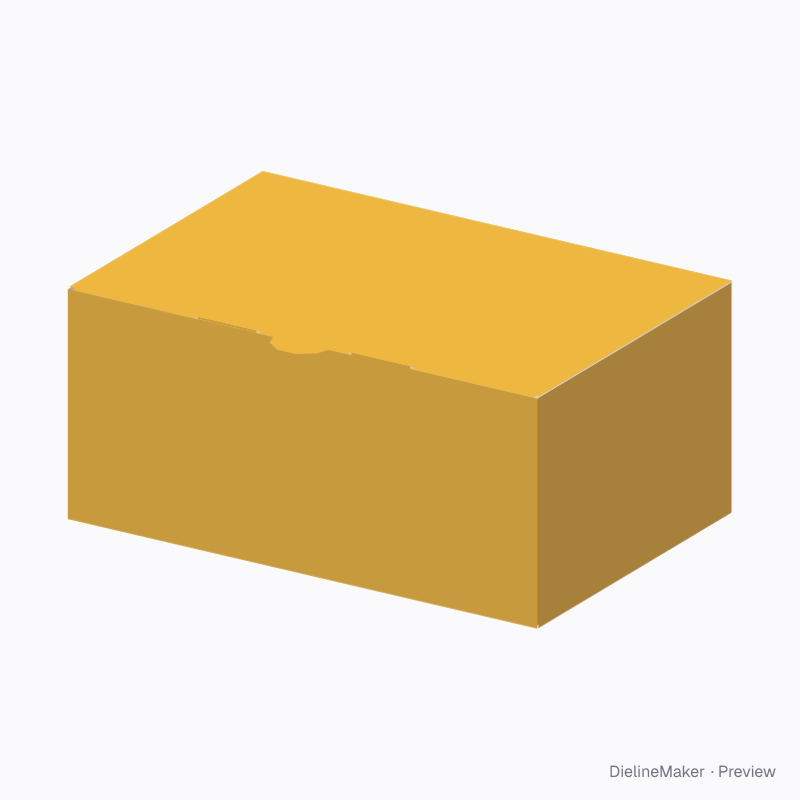

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureFood
Egg carton dieline
A one-piece paperboard egg box: the front wall rolls down into a cradle with one die-cut cell per egg, and the lid locks into the front with tabs. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 100 × 68 mm
Outside151.8 × 100.9 × 68.9 mm
Flat blank287.4 × 531.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 150 · Width 100 · Height 68 mm
- Size range
- Length 60–400 · Width 40–250 · Height 30–120 mm
- Manufacturing
- 151.4 × 100.5 × 68.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.102 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350GD2 350FBB 400SBS 300F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 151.4 × 100.5 | L + 3T × W + T |
| Front | 151.4 × 68 | L + 3T × H |
| Front roll | 148.5 × 1.9 | – |
| Front (inside) | 148.5 × 51.5 | – |
| Egg cradle | 148.5 × 97.1 | L − T − 1 × cradle |
| Cradle leg | 148.5 × 16 | – |
| Cradle foot | 148.5 × 14 | – |
| Back | 151.4 × 68.5 | L + 3T × H + T |
| Front corner ear ×2 | 40.2 × 67.1 | – × H − 2T |
| Back corner ear ×2 | 40.2 × 67.1 | – × H − 2T |
| Left end | 68 × 99.5 | W − T × H |
| Right end | 68 × 99.5 | W − T × H |
| Lid | 151.4 × 109.2 | L + 3T × W + T − roll/2 |
| Lock tab ×2 | 18.9 × 14 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Eggs alongcount
- Rowscount
- Egg sizemm
- Lock tabscount
- Pull tabon / off
- Windowon / off

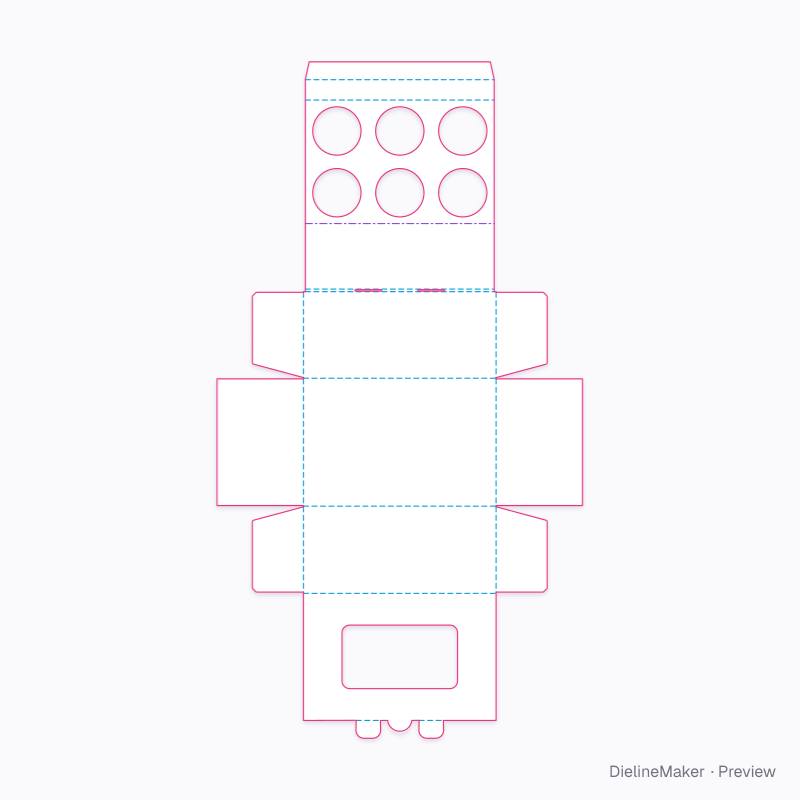

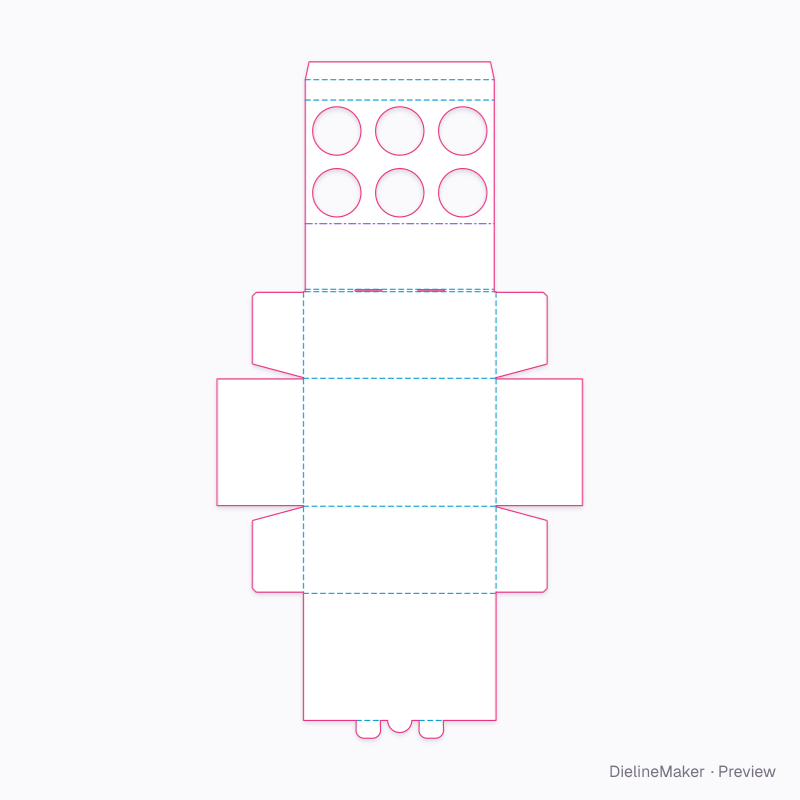

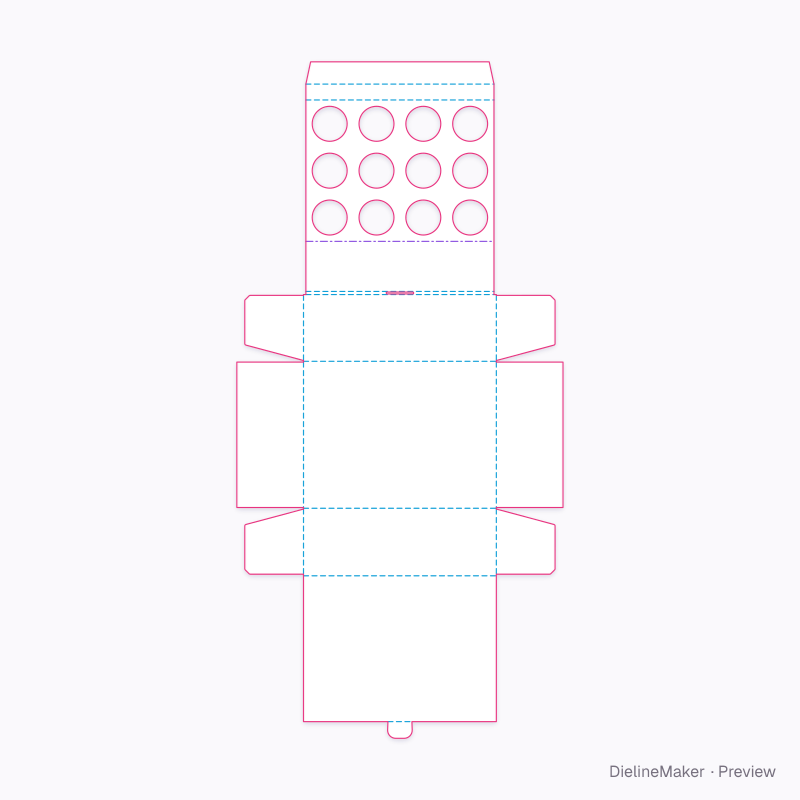

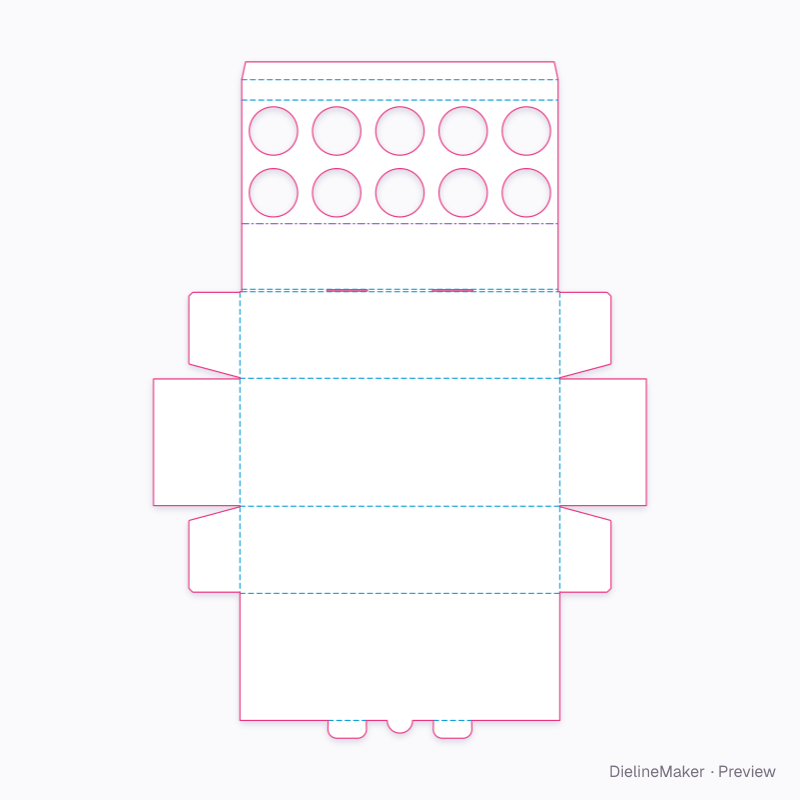

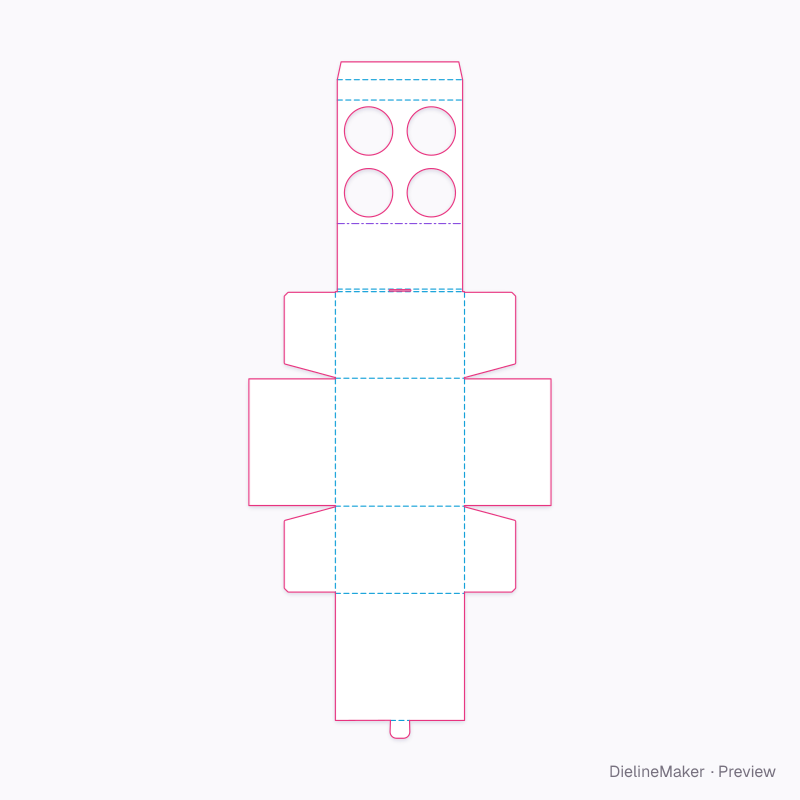

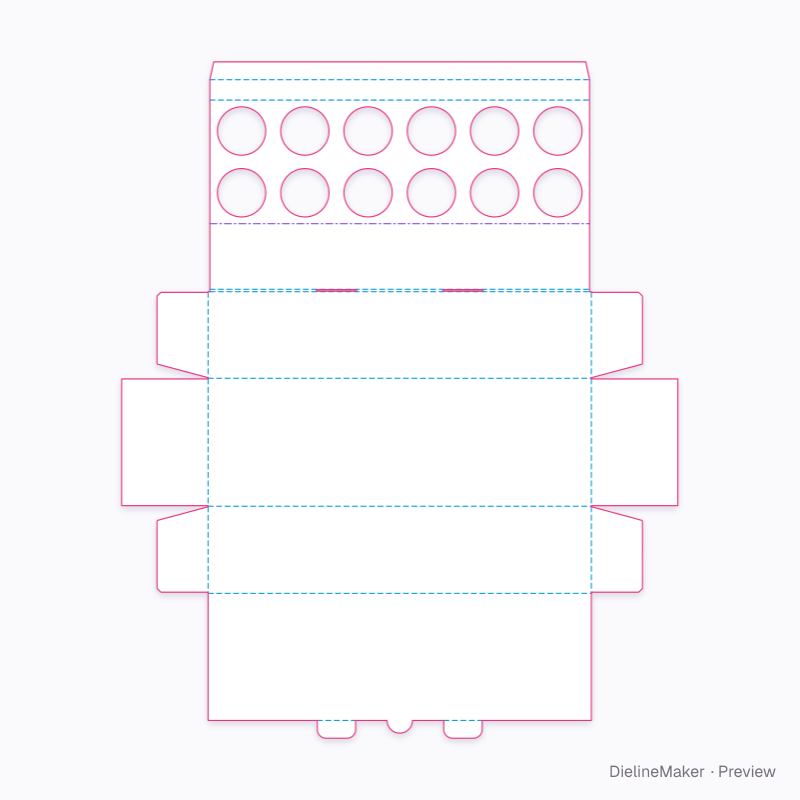

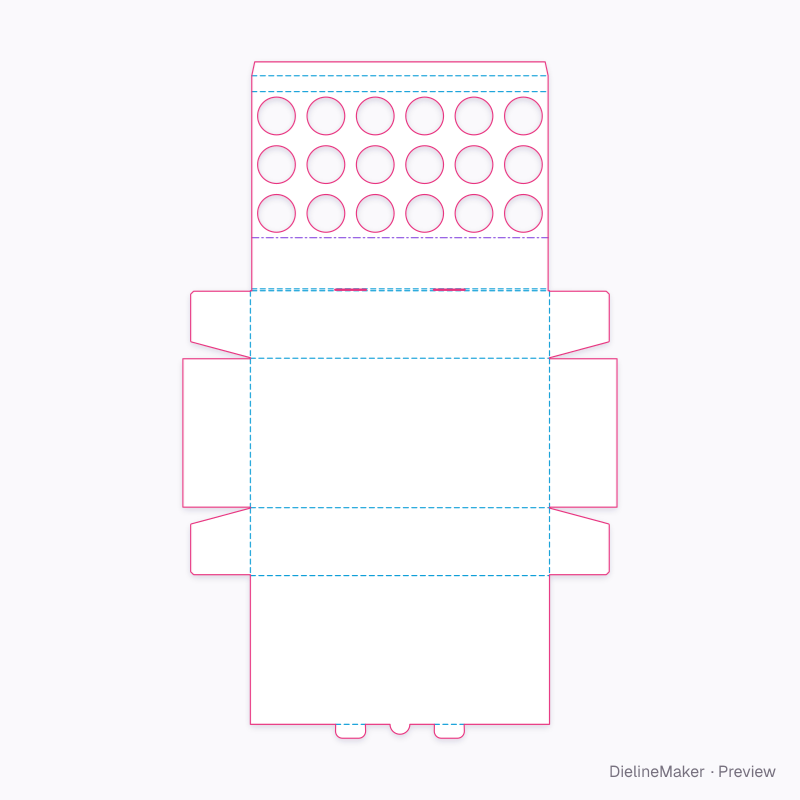

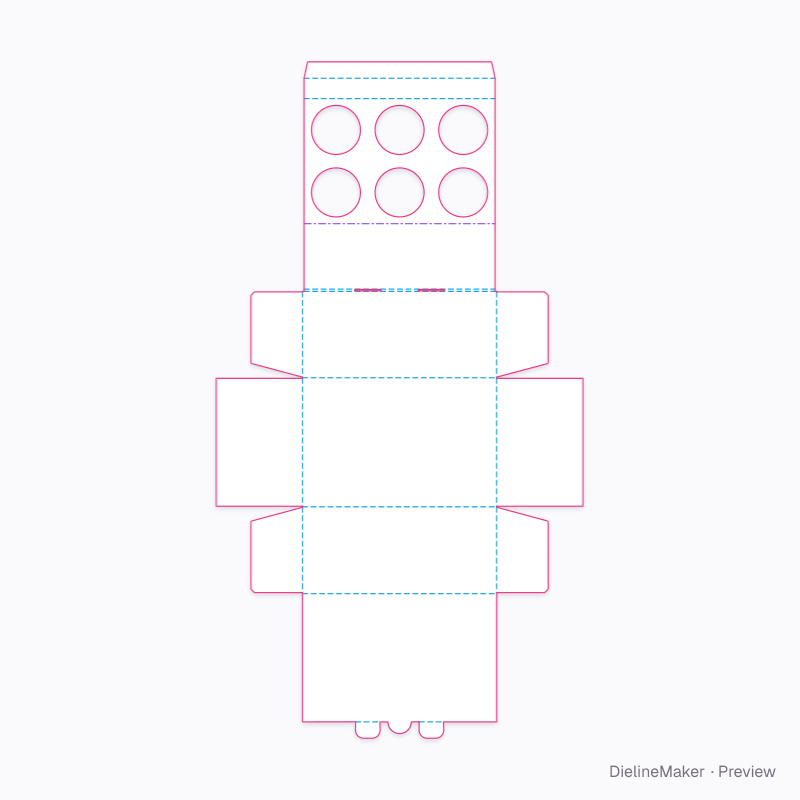

Ready-sized egg carton presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this egg carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
