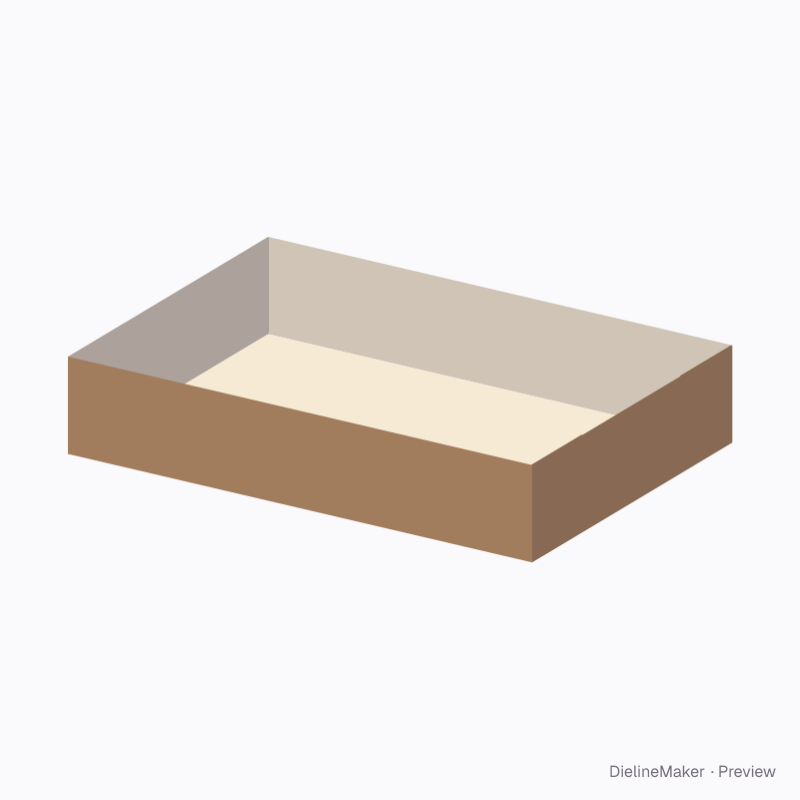

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-COLLAPSIBLE-TRAY-IN-FOLD-01Trays & lids
In-fold collapsible tray dieline
In-fold collapsible tray. A ready-sized preset of the collapsible glued-corner trays — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 50 mm
Outside262.5 × 181 × 50.5 mm
Flat blank362 × 281 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-COLLAPSIBLE-TRAY-IN-FOLD-01
- Inside size
- Inside length 260 · Inside width 180 · Inside height 50 mm
- Size range
- Inside length 60–600 · Inside width 40–450 · Inside height 15–150 mm
- Manufacturing
- 261.5 × 180.5 × 50.3 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.101 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

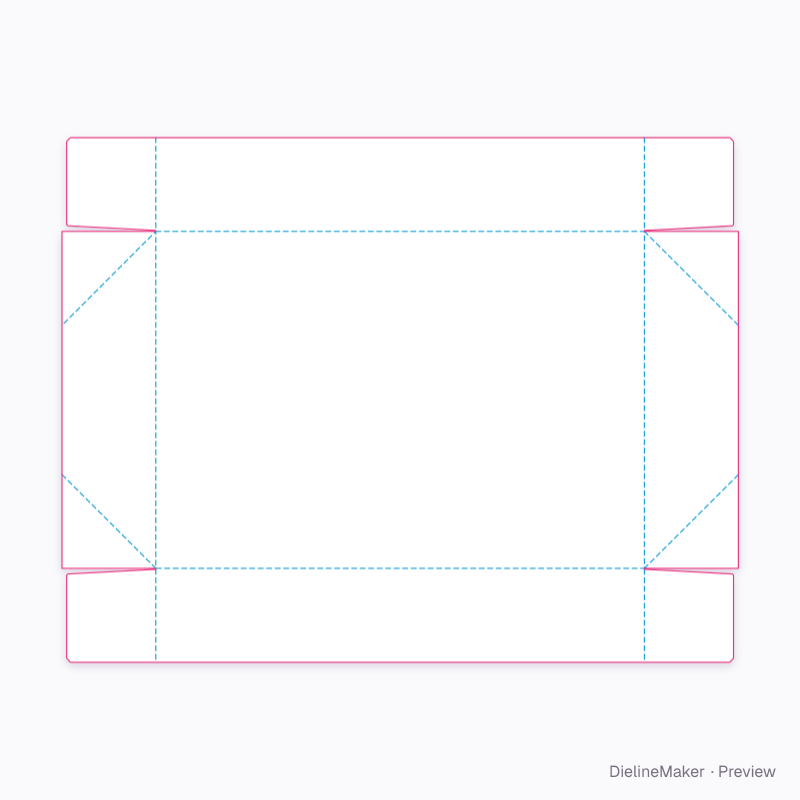

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-COLLAPSIBLE-TRAY-IN-FOLD-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Tray floor | 261.5 × 180.5 | – × W + T |
| Long wall ×2 | 261.5 × 50.3 | – × H + T/2 |
| End wall ×2 | 50.3 × 180.5 | H + T/2 × W + T |
| Glued corner flap ×4 | 47.7 × 49.8 | – × H − T/2 |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Construction4 options
The collapsible glued-corner trays family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this in-fold collapsible tray yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
