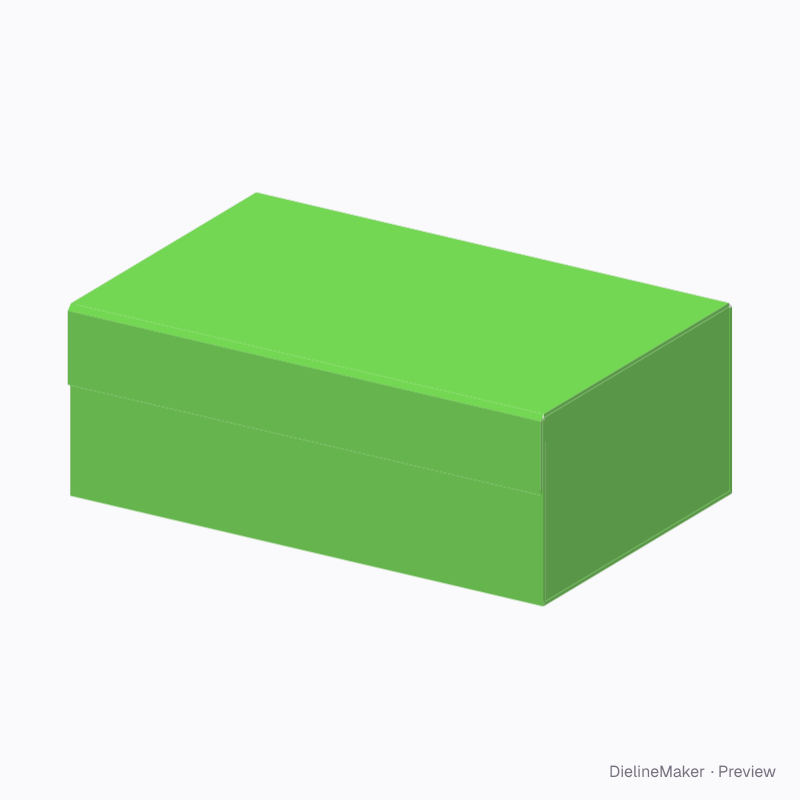

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Collapsible shoe box dieline
Rigid shoe box with a magnetic flap that ships and stores flat. A ready-sized preset of the collapsible magnetic box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside330 × 210 × 120 mm
Outside335.3 × 217.3 × 124.6 mm
Flat blank370 × 1002.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 330 · Depth 210 · Height 120 mm
- Size range
- Length 80–500 · Depth 60–400 · Height 30–200 mm
- Manufacturing
- 332.7 × 213.7 × 122.3 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Cover wrap, Left side wrap, Right side wrap, Tray board, Lid board, Flap board, Left side board, Right side board
- Board area
- 0.754 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Kiss cut
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseCover wrap | 335.3 × 214.3 | L + 2Tb + 2p + 2s × W + 2Tb + 2p |
| Front wallCover wrap | 335.3 × 121.7 | L + 2Tb + 2p + 2s × H + Tb + p − c |
| Back wallCover wrap | 335.3 × 121.1 | L + 2Tb + 2p + 2s × H + 2Tb + 4p − j/√2 |
| Lid hingeCover wrap | 335.3 × 5 | – × j |
| LidCover wrap | 335.3 × 210.2 | L + 2Tb + 2p + 2s × W + 3Tb + 5p + 2c − √2·j |
| Flap hingeCover wrap | 335.3 × 5 | – × j |
| Front flapCover wrap | 335.3 × 48 | L + 2Tb + 2p + 2s × F |
| Front top rimCover wrap | 335.3 × 2.3 | – |
| Front top turn-inCover wrap | 330.7 × 15 | – |
| Front left rimCover wrap | 2.3 × 121.7 | – |
| Front left turn-inCover wrap | 15 × 103.7 | – |
| Front right rimCover wrap | 2.3 × 121.7 | – |
| Front right turn-inCover wrap | 15 × 103.7 | – |
| Base left rimCover wrap | 2.3 × 214.3 | – |
| Base left turn-inCover wrap | 15 × 209.7 | – |
| Base right rimCover wrap | 2.3 × 214.3 | – |
45 more panels are listed in the editor’s structure step.
