DM-COLLAPSING-CARRIER-01Carriers

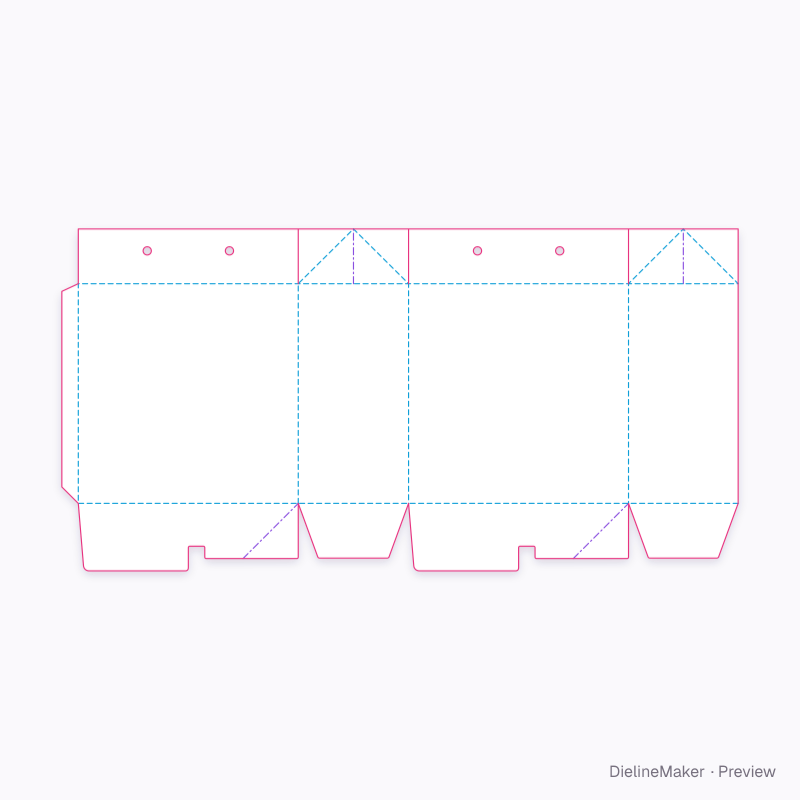

Carrier with collapsing gusset walls dieline
A crash-bottom carton whose narrow walls cross-fold inward so the front and back carry panels meet and tie through paired holes. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside160 × 80 × 160 mm
Outside161 × 81 × 161 mm
Flat blank493.5 × 249.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-COLLAPSING-CARRIER-01
- Inside size
- Length 160 · Width 80 · Height 160 mm
- Size range
- Length 60–400 · Width 30–200 · Height 60–400 mm
- Manufacturing
- 160.5 × 80.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.118 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-COLLAPSING-CARRIER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 160.5 × 160.5 | L + T × H + T |
| Left side | 80.5 × 160.5 | W + T × H + T |
| Back | 160.5 × 160.5 | L + T × H + T |
| Right side | 80 × 160.5 | W × H + T |
| Glue flap | 12 × 160.5 | – |
| Crash-lock flap (back) | 160.5 × 49.3 | – |
| Glued web ×2 | 56.9 × 28 | – |
| Bottom side flap | 80.5 × 40 | W + T × – |
| Crash-lock flap (front) | 160.5 × 49.3 | – |
| Bottom side flap | 80 × 40 | W × – |
| Carry panel ×2 | 160.5 × 40 | – |
| Collapsing gusset band | 80.5 × 40 | W + T × – |
| Collapsing gusset band | 80 × 40 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Carry hole diametermm
Ready-sized carrier with collapsing gusset walls presets
The same structure with sizes, boards and options set for a use.
- Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this carrier with collapsing gusset walls yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
