Parametric structureCarriers
Curved-base carry carton dieline
A curved-bottom gift carrier made from two shaped faces and a continuous U-shaped side band. The band has bonding tabs for both faces; the arched tops contain aligned carry holes. This is a hand-glued three-piece construction. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 65 × 220 mm
Outside181 × 66 × 221 mm
Flat blank569.1 × 81 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Body width 180 · Inside depth 65 · Body height 220 mm
- Size range
- Body width 80–400 · Inside depth 20–150 · Body height 80–500 mm
- Manufacturing
- 180.5 × 65.5 × 220.5 mm score to score · inside vs outside sizes
- Parts
- 3 parts — Front curved carry face, Back curved carry face, U-shaped curved side and base band
- Board area
- 0.131 m² · about 11 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350SBS 18 pt
- Good for

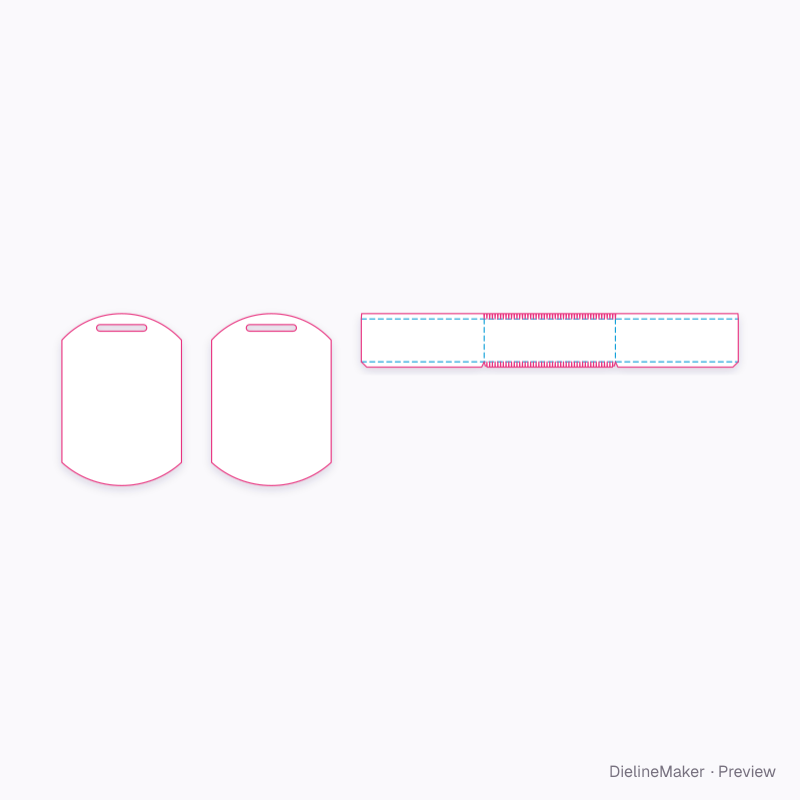

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Shaped carry faceFront curved carry face | 180.5 × 260.3 | L + T × – |
| Shaped carry faceBack curved carry face | 180.5 × 260.3 | L + T × – |
| Base wall ×2U-shaped curved side and base band | 185.5 × 65 | – × W |
| Cap bonding tab ×2U-shaped curved side and base band | 185.5 × 8 | – |
| Base wall ×48U-shaped curved side and base band | 4.1 × 65 | – × W |
| Cap bonding tab ×2U-shaped curved side and base band | 4.1 × 6.2 | – |
| Cap bonding tab ×46U-shaped curved side and base band | 4.1 × 8 | – |
| Back-face bonding tab ×2U-shaped curved side and base band | 185.5 × 8 | – |
| Back-face bonding tab ×48U-shaped curved side and base band | 4.1 × 8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Bottom curve depthmm
- Carry crown heightmm
- Face bonding tabsmm

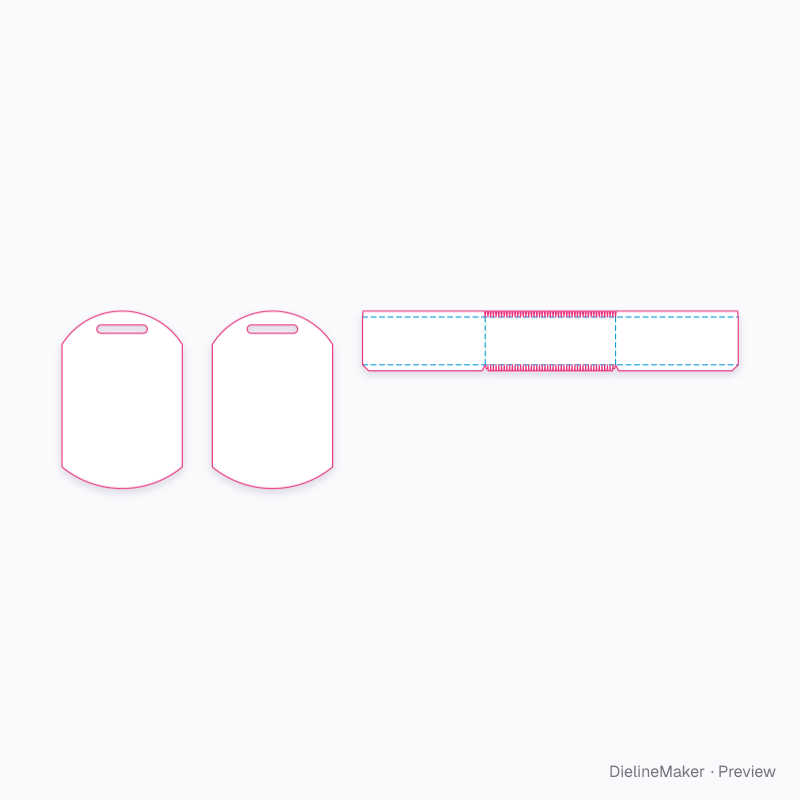

Ready-sized curved-base carry carton presets
