The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0242Shipping
Returning bridge header dieline
Corrugated case with hanging header, with construction-specific folds and closures on a corrugated tube. A ready-sized preset of the corrugated case with hanging header — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 280 × 240 mm
Outside403.2 × 283.2 × 316.4 mm
Flat blank1384.8 × 790.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0242
- Inside size
- Length 400 · Width 280 · Height 240 mm
- Size range
- Length 120–1200 · Width 80–800 · Height 70–1000 mm
- Manufacturing
- 401.6 × 281.6 × 243.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.804 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

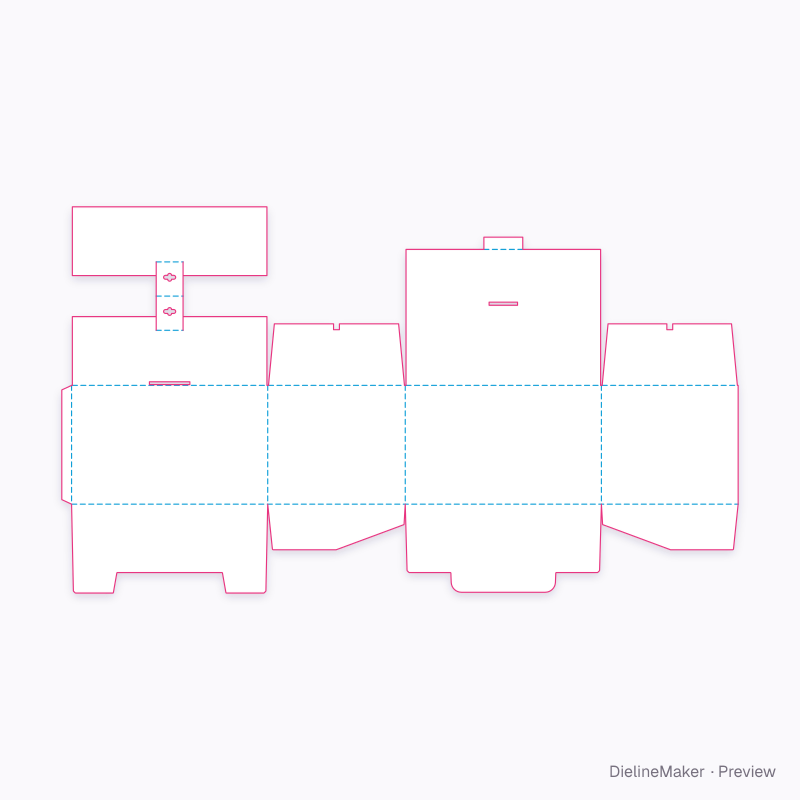

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0242 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 401.6 × 243.2 | L + T × H + 2T |
| Left side | 281.6 × 243.2 | W + T × H + 2T |
| Back | 401.6 × 243.2 | L + T × H + 2T |
| Right side | 280 × 243.2 | W × H + 2T |
| Glue flap | 20 × 243.2 | – × H + 2T |
| Snap end | 281.6 × 93.3 | W + T × – |
| Snap end | 280 × 93.3 | W × – |
| Snap bottom | 401.6 × 182 | L + T × – |
| Snap tuck | 401.6 × 180.4 | L + T × – |
| header base | 398.4 × 140.8 | L − T × – |
| header | 55 × 70 | – |
| header return | 55 × 70 | – |
| header anchor | 55 × 112.8 | – |
| top | 398.4 × 278.4 | L − T × W − T |
| top lock tab | 79.7 × 25 | – |
| top left | 278.4 × 126 | W − T × – |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction3 options
- Handle / header heightmm

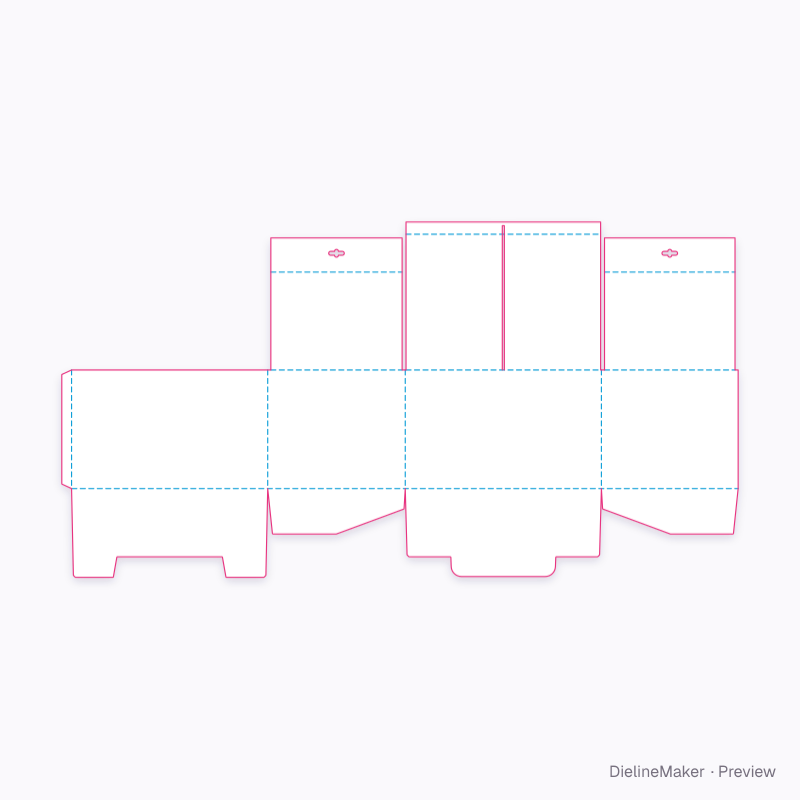

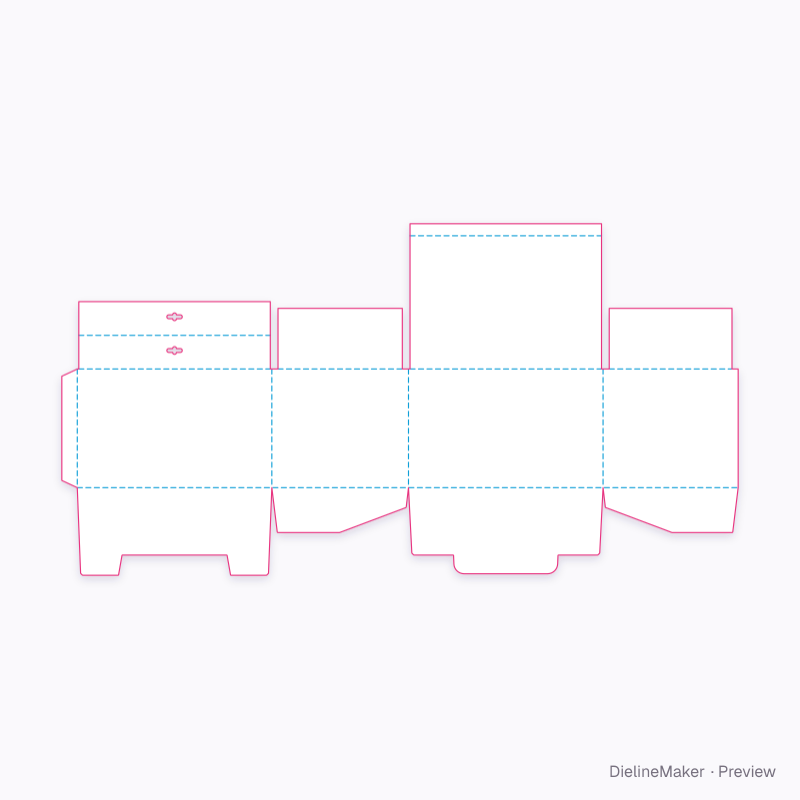

The corrugated case with hanging header family
