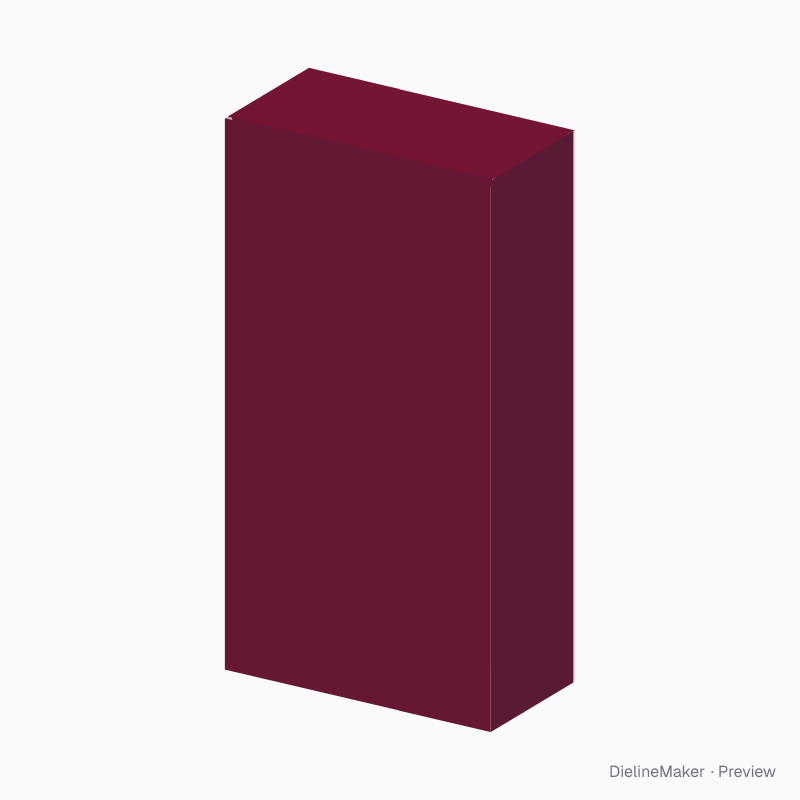

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0211Shipping
Two-bottle wine box 180×90×340 dieline
Kraft gift box for two 750 ml bottles side by side. A ready-sized preset of the corrugated tuck-end box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 90 × 340 mm
Outside183.2 × 93.2 × 346.4 mm
Flat blank564.8 × 550 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0211
- Inside size
- Length 180 · Width 90 · Height 340 mm
- Size range
- Length 80–800 · Width 50–600 · Height 60–900 mm
- Manufacturing
- 181.6 × 91.6 × 343.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.247 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0211 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 181.6 × 343.2 | L + T × H + 2T |
| Left side | 91.6 × 343.2 | W + T × H + 2T |
| Back | 181.6 × 343.2 | L + T × H + 2T |
| Right side | 90 × 343.2 | W × H + 2T |
| Glue flap | 20 × 343.2 | – × H + 2T |
| Bottom closure | 181.6 × 88.4 | L + T × W − T |
| Bottom tuck | 178.4 × 15 | L − T × – |
| Bottom dust flap ×2 | 84.2 × 52.5 | – |
| Top closure | 181.6 × 88.4 | L + T × W − T |
| Top tuck | 178.4 × 15 | L − T × – |
| Top dust flap | 84.2 × 52.5 | – |
| Top dust flap | 82.6 × 52.5 | – |
