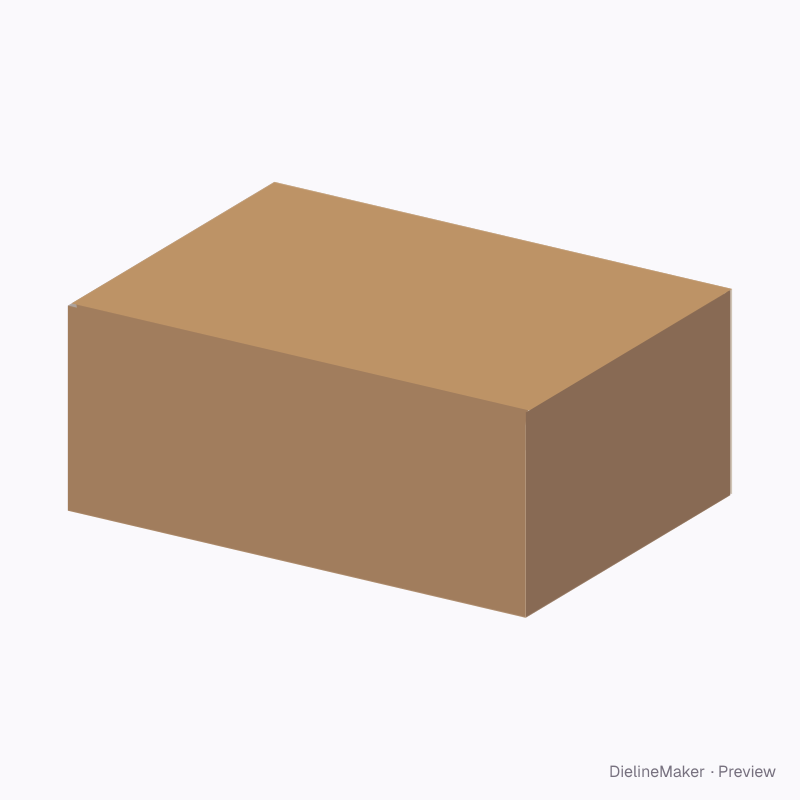

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0211Shipping
Reclosable e-commerce box 250×180×100 dieline
Opens from the top, refills from the bottom and goes back as a return. A ready-sized preset of the corrugated tuck-end box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 180 × 100 mm
Outside253.2 × 183.2 × 106.4 mm
Flat blank884.8 × 503.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0211
- Inside size
- Length 250 · Width 180 · Height 100 mm
- Size range
- Length 80–800 · Width 50–600 · Height 60–900 mm
- Manufacturing
- 251.6 × 181.6 × 103.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.255 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0211 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 251.6 × 103.2 | L + T × H + 2T |
| Left side | 181.6 × 103.2 | W + T × H + 2T |
| Back | 251.6 × 103.2 | L + T × H + 2T |
| Right side | 180 × 103.2 | W × H + 2T |
| Glue flap | 20 × 103.2 | – × H + 2T |
| Bottom closure | 251.6 × 178.4 | L + T × W − T |
| Bottom tuck | 248.4 × 21.6 | L − T × – |
| Bottom dust flap ×2 | 174.2 × 100.8 | – |
| Top closure | 251.6 × 178.4 | L + T × W − T |
| Top tuck | 248.4 × 21.6 | L − T × – |
| Top dust flap | 174.2 × 100.8 | – |
| Top dust flap | 172.6 × 100.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
