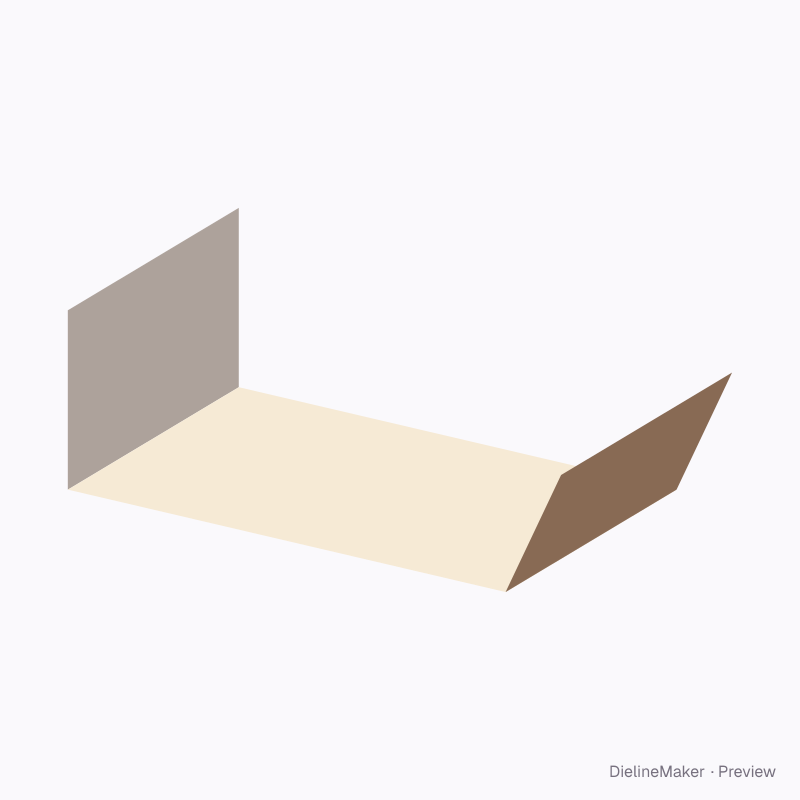

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0122Shipping
Creased channel sheet 400×250×150 dieline
A short, wide channel sheet with a steeper open wall. A ready-sized preset of the creased corrugated sheet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 250 × 150 mm
Outside450.7 × 250 × 150 mm
Flat blank670 × 250 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0122
- Inside size
- Length 400 · Width 250 · Leg height 150 mm
- Size range
- Length 50–2500 · Width 20–3000 · Leg height 10–600 mm
- Manufacturing
- 400 × 250 × 150 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.168 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0122 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
