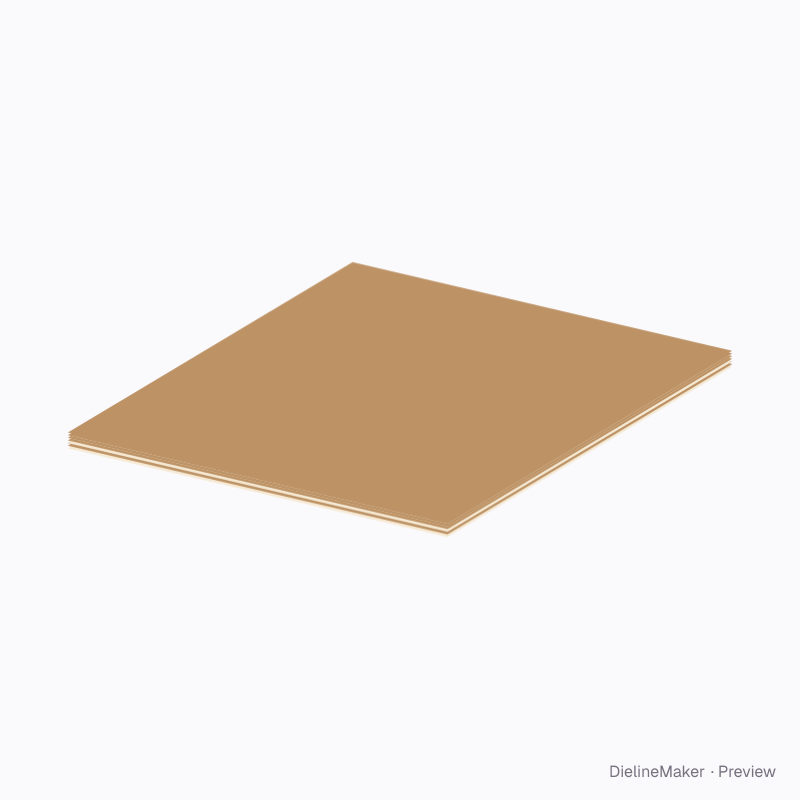

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0130Shipping
Fanfold board 1000 wide dieline
Continuous board zig-zag folded into a stack to feed a box-on-demand machine. A ready-sized preset of the creased corrugated sheet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside1000 × 1200 × 60 mm
Outside1000 × 1200 × 60 mm
Flat blank1000 × 14400 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0130
- Inside size
- Length 1000 · Width 1200 · Leg height 60 mm
- Size range
- Length 50–2500 · Width 20–3000 · Leg height 10–600 mm
- Manufacturing
- 1000 × 1200 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 14.400 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteE-flute KE-flute WEB doubleF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0130 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Ply 1 | 1000 × 1200 | L × W |
| Ply 2 | 1000 × 1200 | L × W |
| Ply 3 | 1000 × 1200 | L × W |
| Ply 4 | 1000 × 1200 | L × W |
| Ply 5 | 1000 × 1200 | L × W |
| Ply 6 | 1000 × 1200 | L × W |
| Ply 7 | 1000 × 1200 | L × W |
| Ply 8 | 1000 × 1200 | L × W |
| Ply 9 | 1000 × 1200 | L × W |
| Ply 10 | 1000 × 1200 | L × W |
| Ply 11 | 1000 × 1200 | L × W |
| Ply 12 | 1000 × 1200 | L × W |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Profile8 options
- Crease direction2 options
- Second wallmm
- Top / lid panelmm
- Flangemm
- Pliescount
The creased corrugated sheet family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this fanfold board 1000 wide yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
