The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CROSS-LEAFLET-01Cards & tags
Rectangular cross-fold card dieline
A plus-shaped die-cut sheet: four wings on the edges of a centre panel fold in onto it, sides first, then top and bottom, closing as a square leaflet with five panels and ten print faces. A ready-sized preset of the cross-shaped fold-in leaflet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 130 mm
Outside90 × 130 mm
Flat blank267 × 387 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CROSS-LEAFLET-01
- Inside size
- Panel width 90 · Panel height 130 mm
- Size range
- Panel width 45–250 · Panel height 45–250 mm
- Manufacturing
- 90 × 130 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.058 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350SBS 18 pt
- Good for

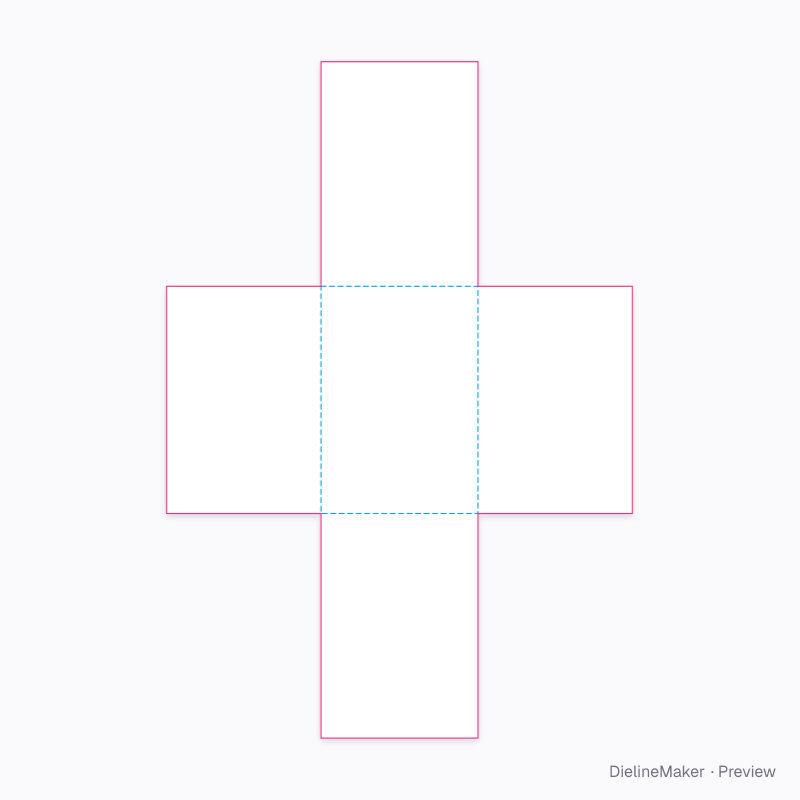

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CROSS-LEAFLET-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.16 mm for Art paper 170 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Centre panel / back cover | 90 × 130 | L × H |
| Left wing | 88.5 × 130 | – × H |
| Right wing | 88.5 × 130 | – × H |
| Top wing | 90 × 128.5 | L × – |
| Bottom wing / front cover | 90 × 128.5 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Wing fold allowancemm
- Cover opening°

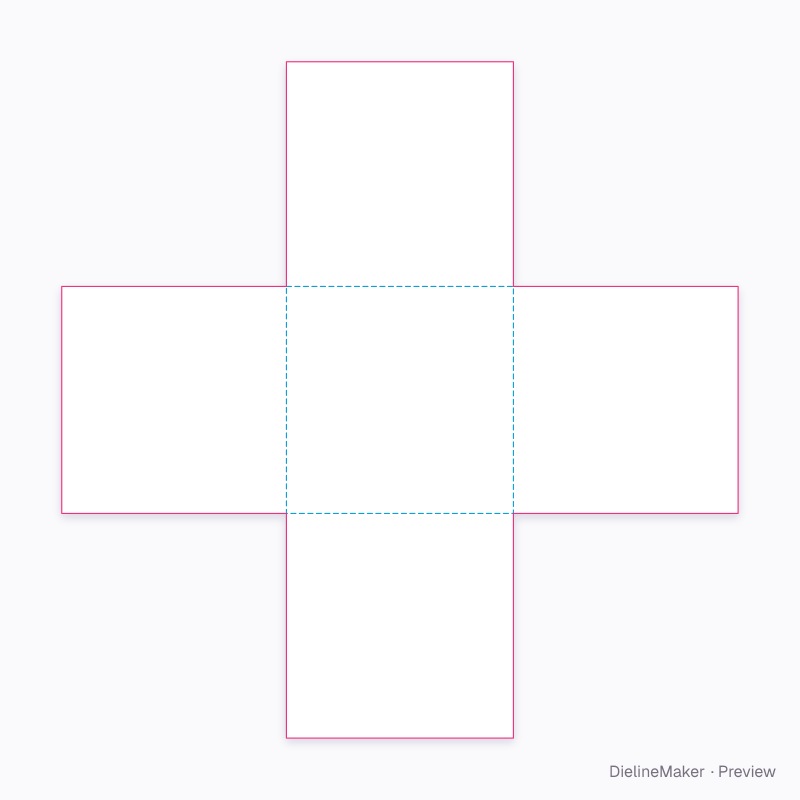

The cross-shaped fold-in leaflet family
The same structure with sizes, boards and options set for a use.
