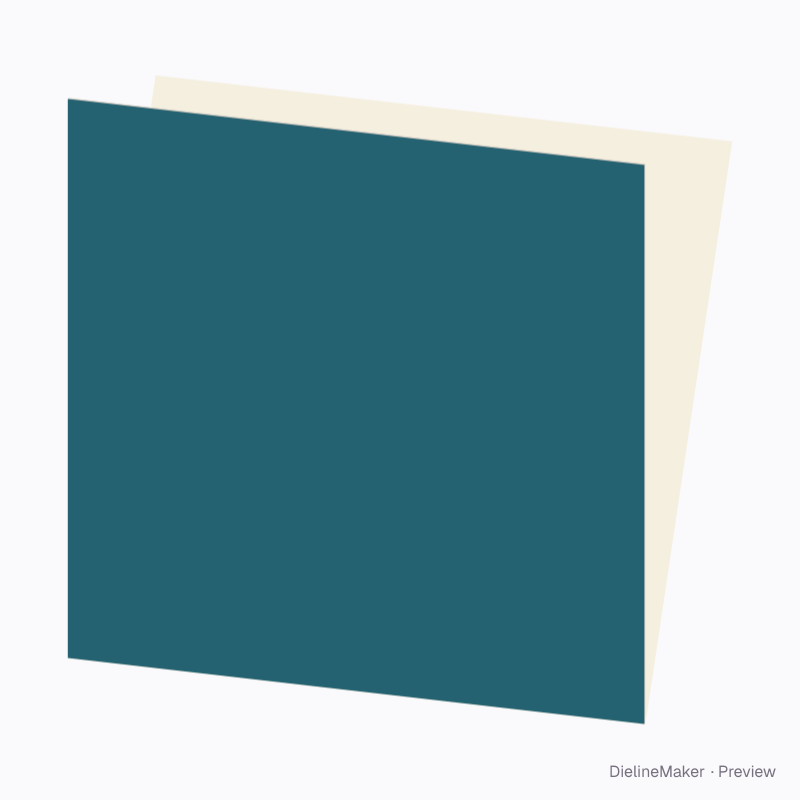

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CROSS-LEAFLET-01Cards & tags
Square cross-fold leaflet 100 mm dieline
A plus-shaped die-cut sheet: four wings on the edges of a centre panel fold in onto it, sides first, then top and bottom, closing as a square leaflet with five panels and ten print faces. A ready-sized preset of the cross-shaped fold-in leaflet — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 mm
Outside100 × 100 mm
Flat blank297 × 297 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CROSS-LEAFLET-01
- Inside size
- Panel width 100 · Panel height 100 mm
- Size range
- Panel width 45–250 · Panel height 45–250 mm
- Manufacturing
- 100 × 100 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.049 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300SBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Wing fold allowancemm
- Cover opening°
The cross-shaped fold-in leaflet family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this square cross-fold leaflet 100 mm yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
