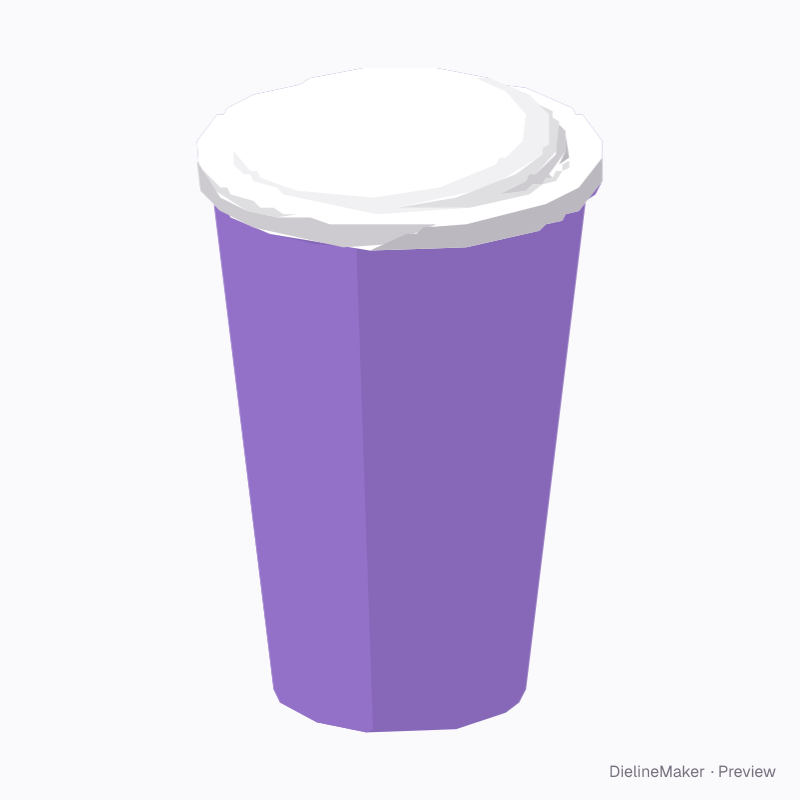

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureLabels
Bubble tea cup 500 ml dieline
Wide-straw cup for milk tea with a clear dome lid. A ready-sized preset of the paper cup — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 95 × 140 mm
OutsideØ 95 × 140 mm
Flat blank297.7 × 170.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Rim diameter 95 · Height 140 mm
- Size range
- Rim diameter 40–160 · Height 30–250 mm
- Manufacturing
- Ø 95 × 140 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.036 m² · about 12 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300Paper 170Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Base diametermm
- Side seammm
- Cup construction3 options
- Paper handle2 options
- Lid3 options
- Lid colour4 options
The paper cup family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this bubble tea cup 500 ml yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
