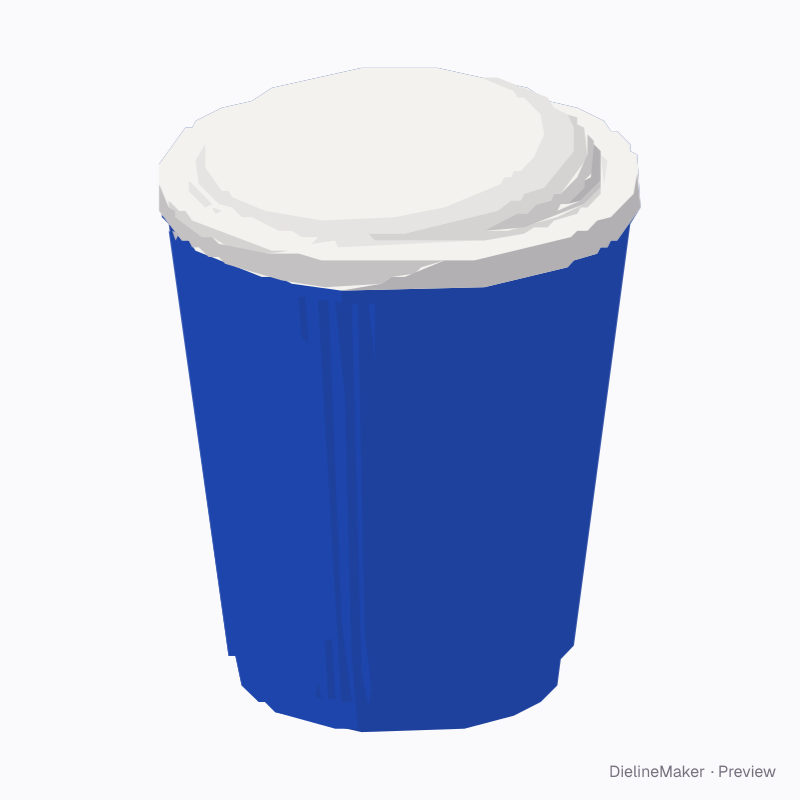

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureLabels
Ripple-wall cup 8 oz dieline
Tapered paper cup with a true annular-sector wall. Add a separate double-wall or ripple outer shell and a folding paper handle. Outer-shell blanks are for converted stock; ripple flute take-up, cup-forming allowances, coating, insulation and handle bond strength need your supplier’s specification. A ready-sized preset of the paper cup — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 80 × 92 mm
OutsideØ 80 × 92 mm
Flat blank250.2 × 122.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Rim diameter 80 · Height 92 mm
- Size range
- Rim diameter 40–160 · Height 30–250 mm
- Manufacturing
- Ø 80 × 92 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Cup wall, Converted ripple outer shell
- Board area
- 0.039 m² · about 18 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
