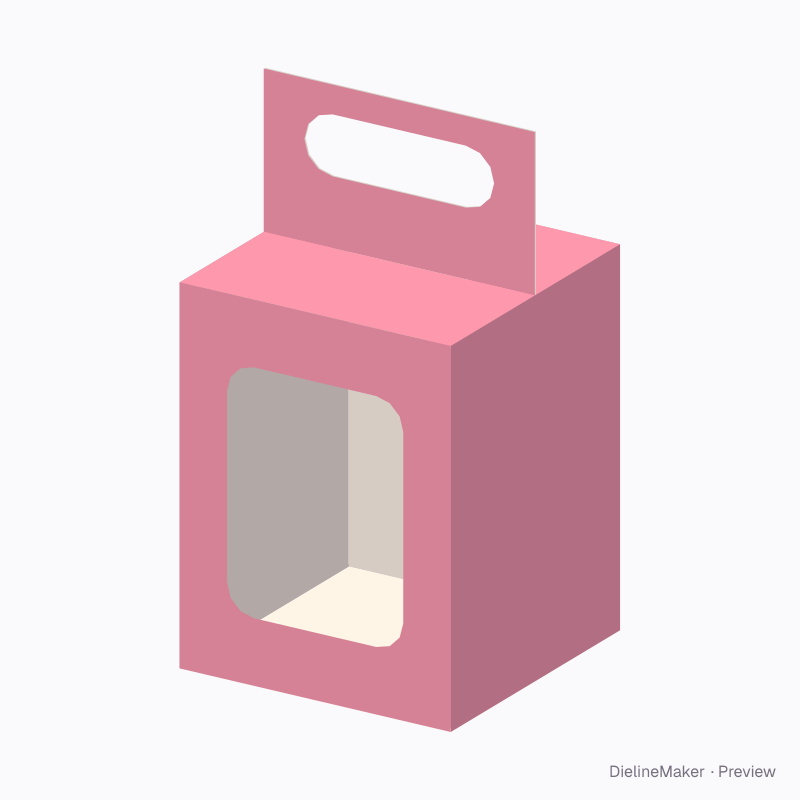

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CUP-CARRY-CARTON-01Carriers
Single-cup carrier with handle dieline
A one-piece carrier for a single dessert or drink cup: a window in the front, the front and back folding over the top into a doubled carry handle, corner-glued ends. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 × 130 mm
Outside101 × 101 × 131 mm
Flat blank410 × 569.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CUP-CARRY-CARTON-01
- Inside size
- Width 100 · Depth 100 · Wall height 130 mm
- Size range
- Width 60–250 · Depth 50–250 · Wall height 50–300 mm
- Manufacturing
- 100.5 × 100.5 × 130.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.094 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WGD2 350SBS 18 pt
- Good for

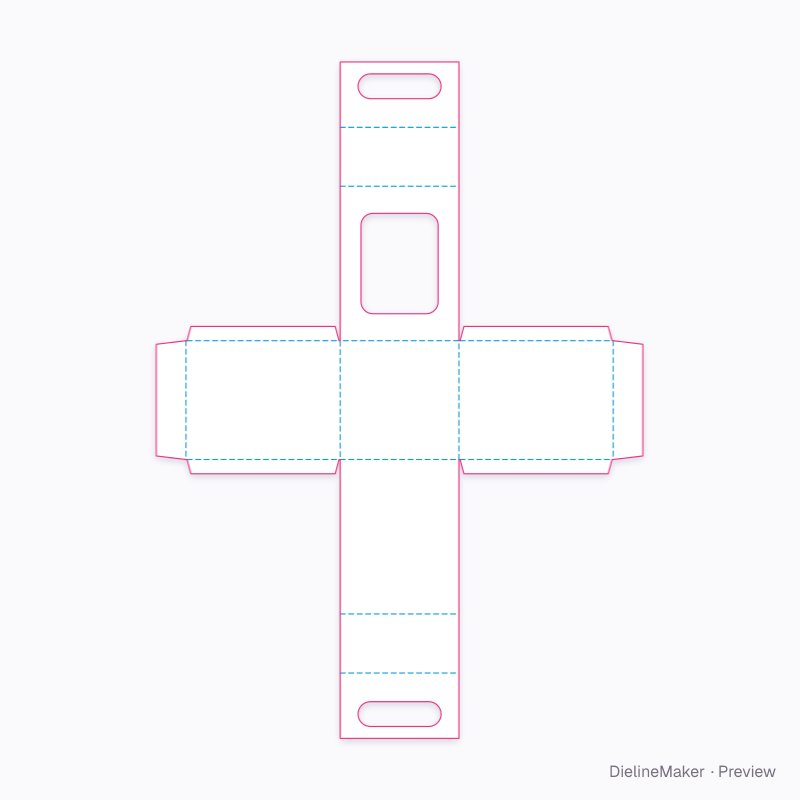

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The single-cup carrier with handle erects in 5 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upFront, Back, End top flap and 1 more
- 2Close the lidFront top, Back top
- 3Raise the handleHandle ply and 1 more
- 4Fold the walls upLeft end, Right end
- 5Fold the glue flap and glue the seamGlue flap and 3 more
How the blank is sized
Score-to-score panel sizes of this DM-CUP-CARRY-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 100 × 100 | – |
| Front | 100 × 130 | – × H |
| Back | 100 × 130 | – × H |
| Left end | 130 × 100 | H × – |
| Right end | 130 × 100 | H × – |
| Front top | 100 × 49.6 | – |
| Back top | 100 × 49.7 | – |
| Glue flap ×4 | 128 × 12 | – |
| End top flap ×2 | 25 × 100 | – |
| Handle ply ×2 | 100 × 55 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Handle heightmm
- Hand hole widthmm
- Front windowon / off
- Window widthmm
- Window heightmm
- Window cornersmm
- End top flapson / off
Ready-sized single-cup carrier with handle presets
The same structure with sizes, boards and options set for a use.

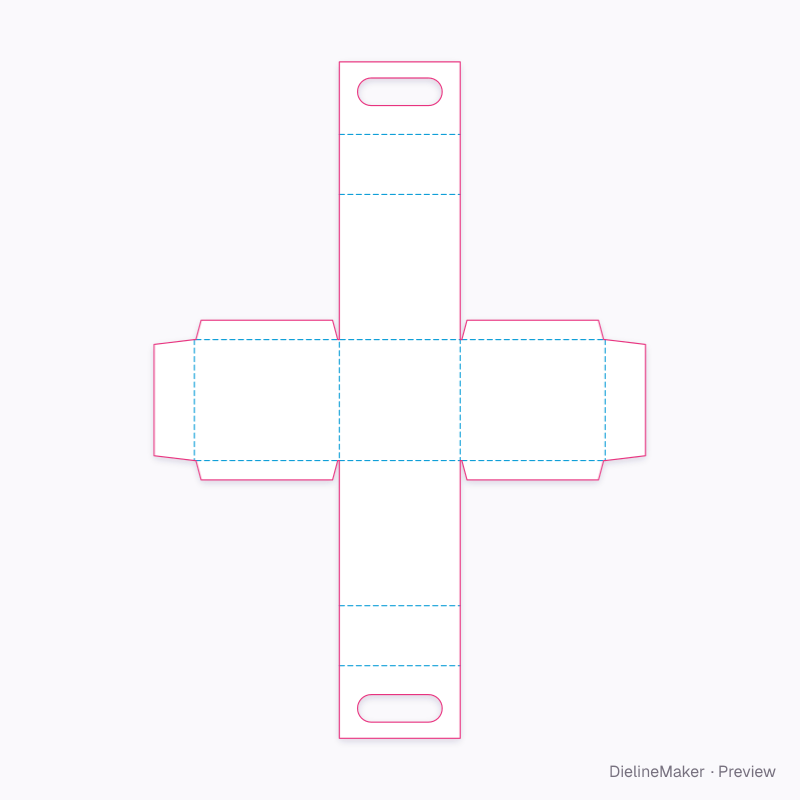

- Preset

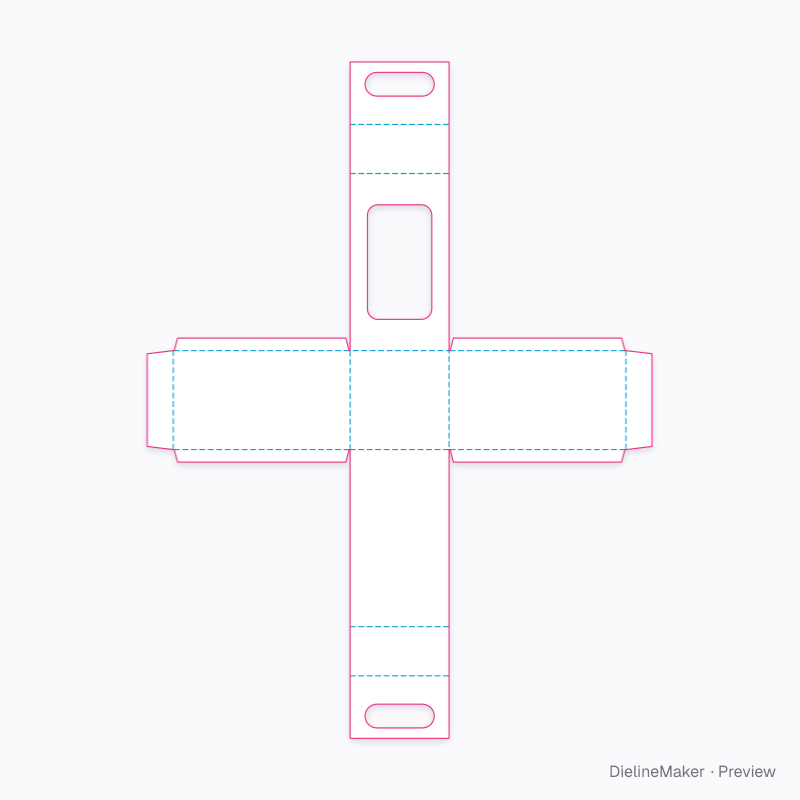

Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the single-cup carrier with handle dieline fit my product?
A one-piece carrier for a single dessert or drink cup: a window in the front, the front and back folding over the top into a doubled carry handle, corner-glued ends. The default dimensions in inside-size mode are Width 100 mm, Depth 100 mm, Wall height 130 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Width 60–250 mm, Depth 50–250 mm, Wall height 50–300 mm. At the default settings, the editor also exposes Handle height, Hand hole width, Front window, Window width, Window height, Window corners and 1 more options. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is SBS white board 350 g (0.5 mm caliper). This structure allows SBS white board 350 g, Folding boxboard 400 g, Kraft board 350 g, E-flute white / kraft, Grey-back duplex 350 g, SBS white board 18 pt. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
