The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-A-FRAME-CUP-CARRIER-01Carriers
A-frame cup carrier dieline
A one-piece tent carrier: a bridge with round cup apertures and two inclined carrying faces that meet at a glued apex with aligned hand slots. Optional U-cut flaps grip the product. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 100 × 160 mm
Outside100 × 100.9 × 160.5 mm
Flat blank100 × 453.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-A-FRAME-CUP-CARRIER-01
- Inside size
- Length 100 · Bridge depth 100 · Height 160 mm
- Size range
- Length 60–400 · Bridge depth 50–300 · Height 60–350 mm
- Manufacturing
- 100 × 100.5 × 160 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.045 m² · about 9 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350FBB 400E-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Cup aperturescount
- Aperture diametermm
- Hand slotson / off
- Slot widthmm
- U-cut retention flapson / off

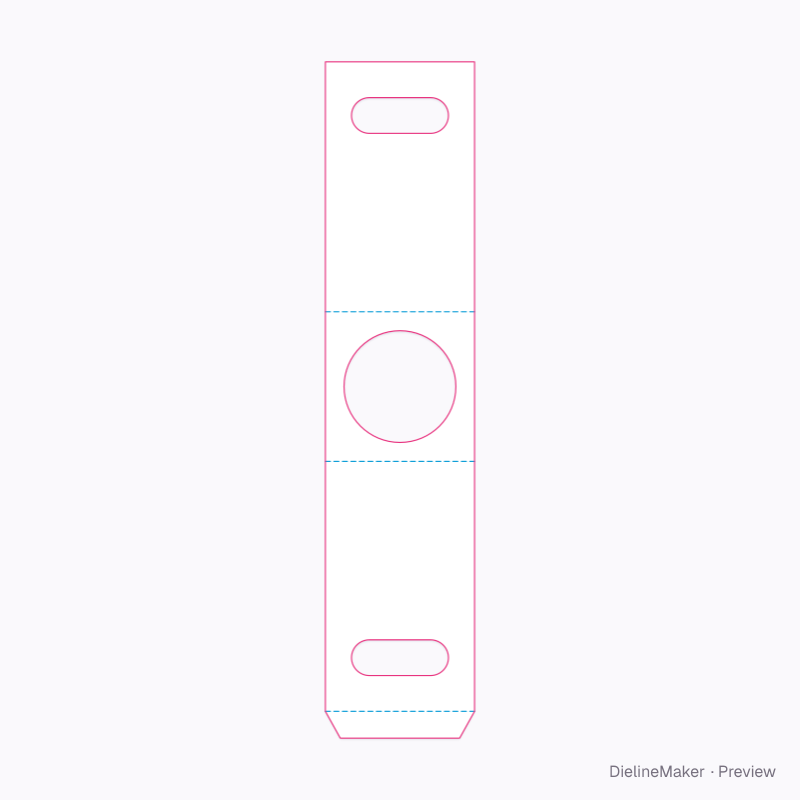

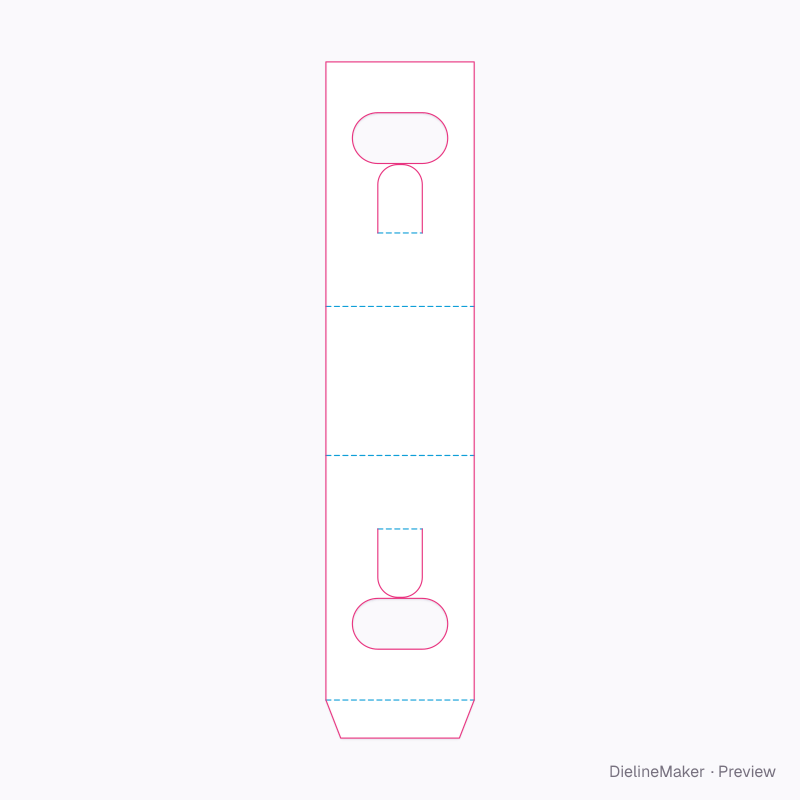

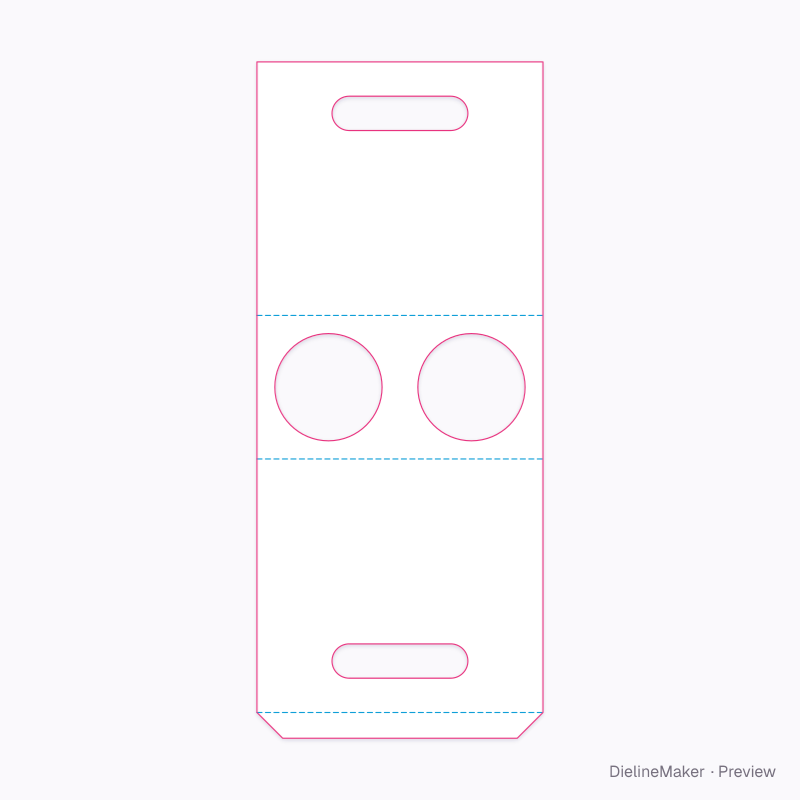

Ready-sized a-frame cup carrier presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this a-frame cup carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
