DM-CURVED-RIM-TRAY-01Trays & lids

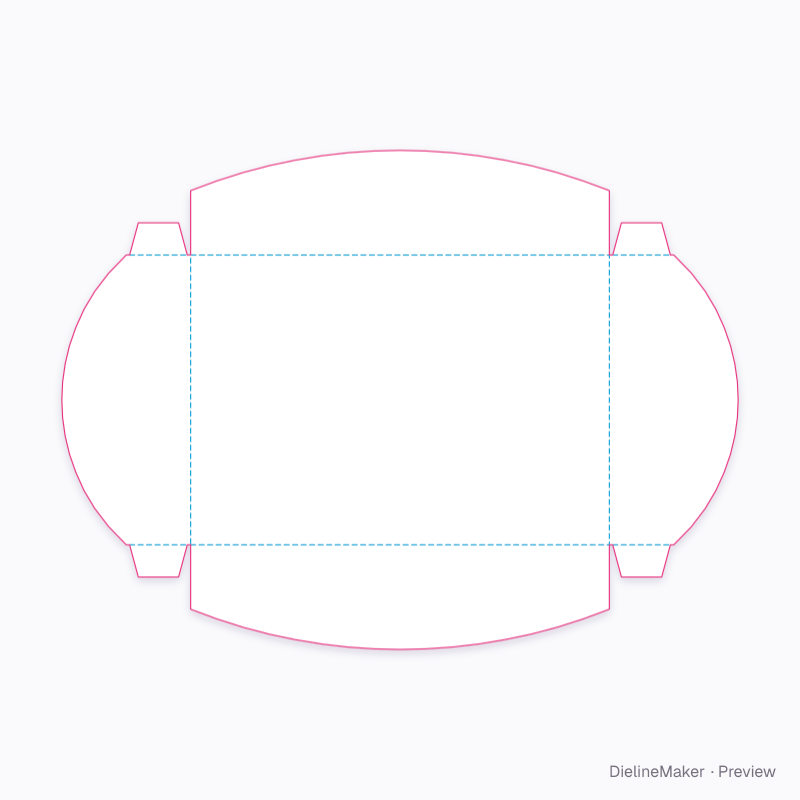

Open tray with curved rims dieline
An open glued tray whose end walls rise into convex curved rims, optionally with curved long walls too. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 150 × 45 mm
Outside221 × 151 × 46 mm
Flat blank385 × 240 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CURVED-RIM-TRAY-01
- Inside size
- Length 220 · Width 150 · Wall height 45 mm
- Size range
- Length 60–500 · Width 40–400 · Wall height 15–200 mm
- Manufacturing
- 220.5 × 150.5 × 45.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.076 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CURVED-RIM-TRAY-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 220 × 150 | L × W |
| Front wall | 220 × 45 | L × H |
| Back wall | 220 × 45 | L × H |
| End wall ×2 | 82.5 × 150 | – × W |
| Glue flap ×4 | 43 × 12 | – |
