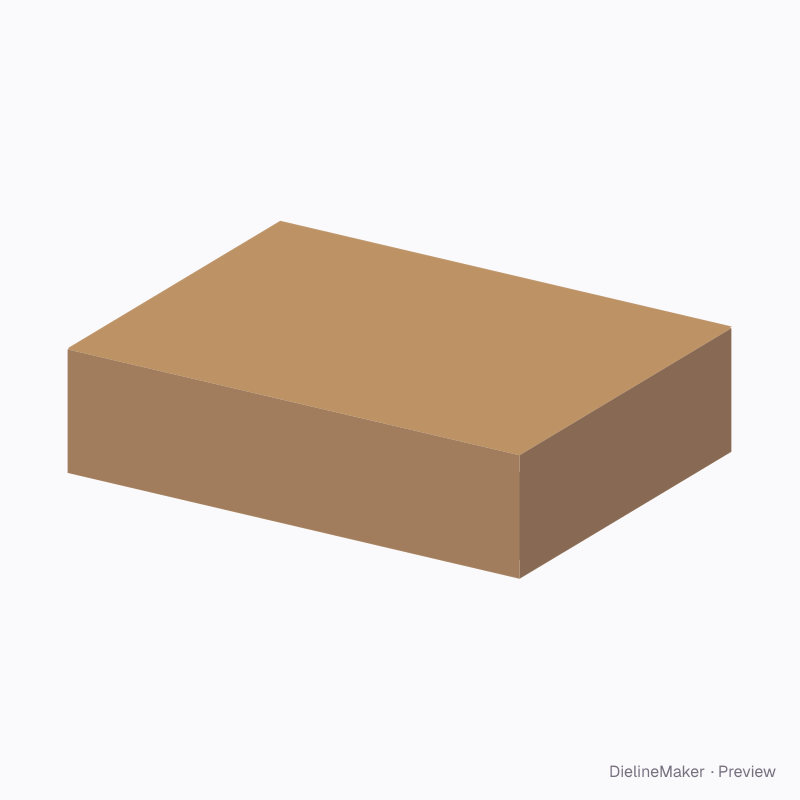

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-RETURN-WINDOW-LID-01Trays & lids
Tray with returned window frame and opposed cover dieline
A glued-corner tray whose lid is a doubled window frame and whose front carries a full cover that closes over it. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 150 × 50 mm
Outside201 × 151 × 51 mm
Flat blank300 × 699.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-RETURN-WINDOW-LID-01
- Inside size
- Length 200 · Width 150 · Height 50 mm
- Size range
- Length 60–450 · Width 50–350 · Height 15–150 mm
- Manufacturing
- 200.5 × 150.5 × 50.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.156 m²
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for

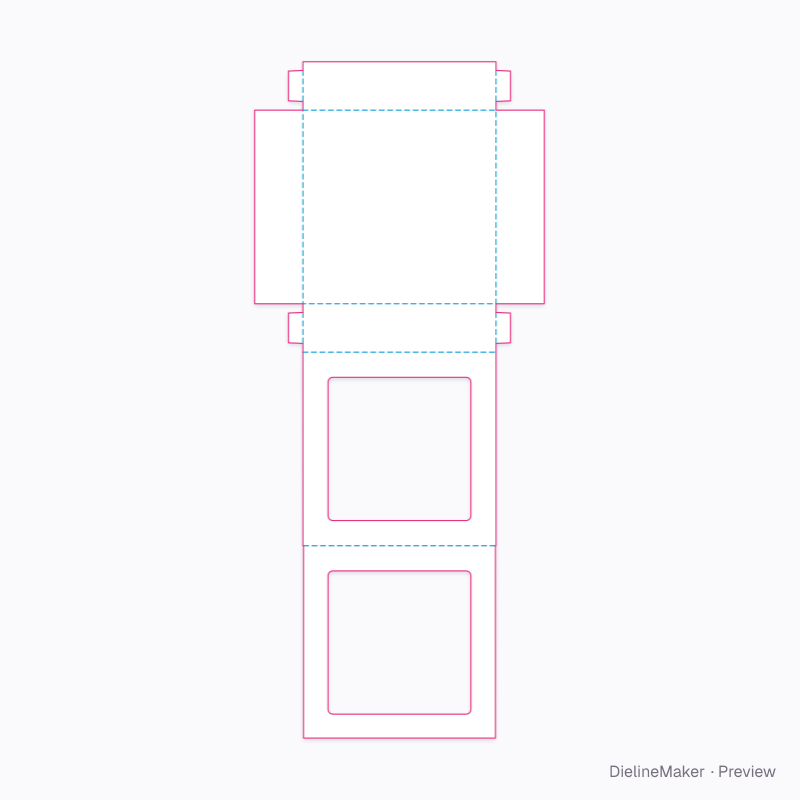

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-RETURN-WINDOW-LID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 200 × 150 | L × W |
| Front wall | 200 × 50 | L × H |
| Back wall | 200 × 50 | L × H |
| Left wall | 50 × 150 | H × W |
| Right wall | 50 × 150 | H × W |
| Corner glue flap ×4 | 12 × 35.6 | – |
| Window lid | 200 × 150 | L × W |
| Window frame return | 199 × 149 | L − 2T × W − 2T |
| Opposed cover | 200 × 150.5 | L × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Window frame widthmm
- Opposed coveron / off

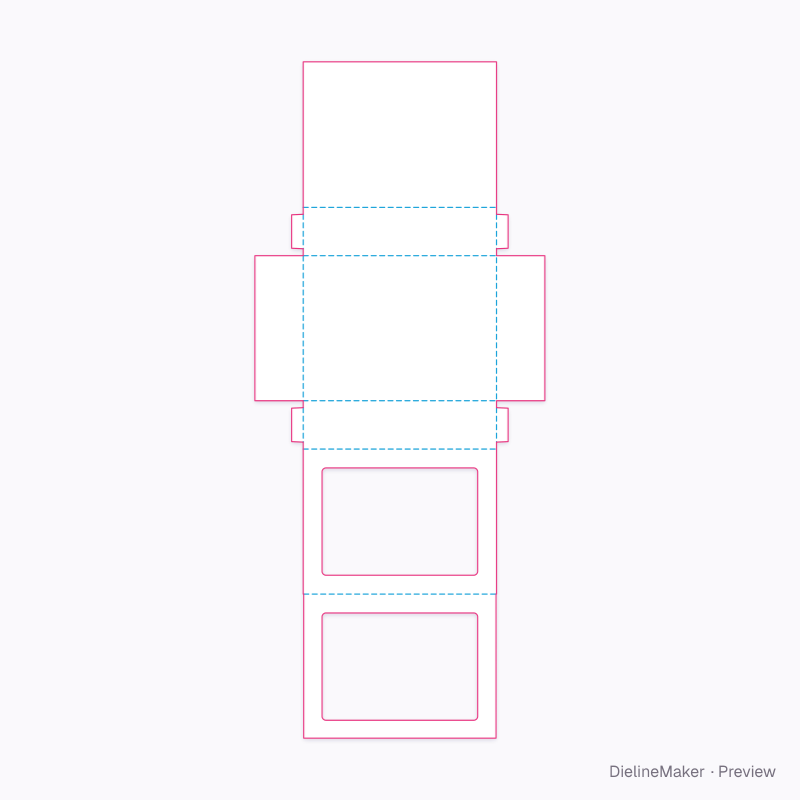

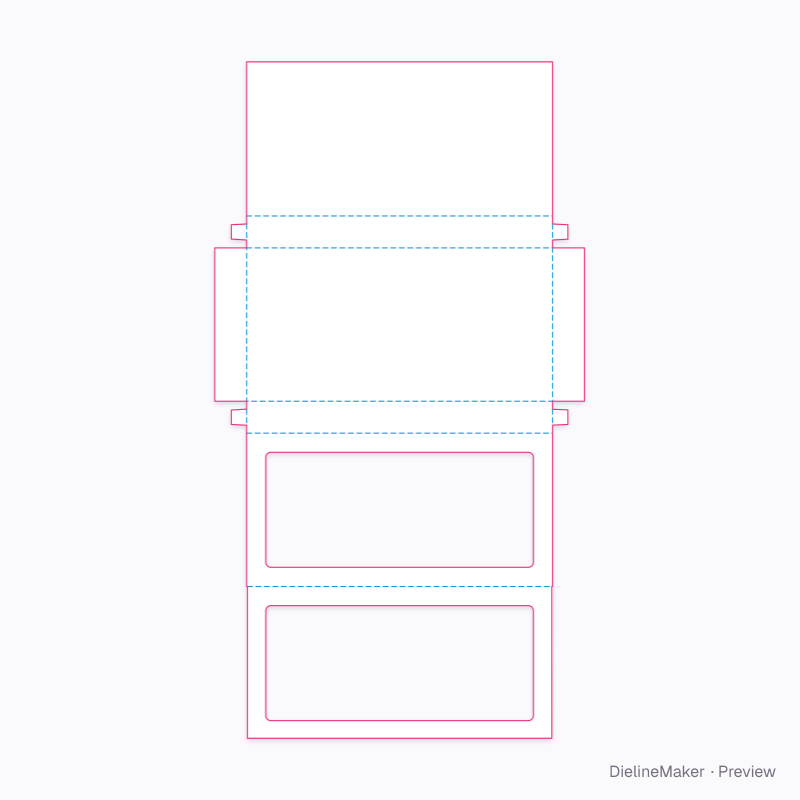

Ready-sized tray with returned window frame and opposed cover presets
The same structure with sizes, boards and options set for a use.
