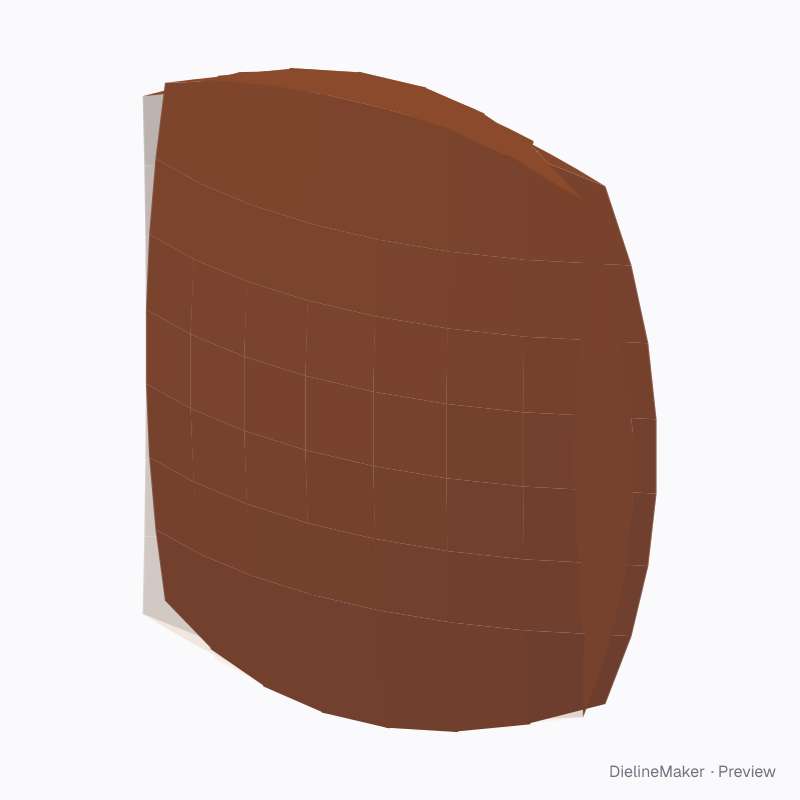

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CUSHION-PILLOW-01Shapes
Square cushion favour box dieline
A square pillow that bulges both ways: two faces on a straight side crease, closed by crescent flaps on curved scores at the top, bottom and free side. 3D preview is a facet approximation. A ready-sized preset of the cushion pillow box (curved scores on three sides) — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 24 × 100 mm
Outside101 × 25 × 101 mm
Flat blank245 × 144.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CUSHION-PILLOW-01
- Inside size
- Face width 100 · Depth 24 · Face height 100 mm
- Size range
- Face width 40–300 · Depth 6–80 · Face height 40–300 mm
- Manufacturing
- 100.5 × 24.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.029 m² · about 16 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350SBS 18 pt
- Good for

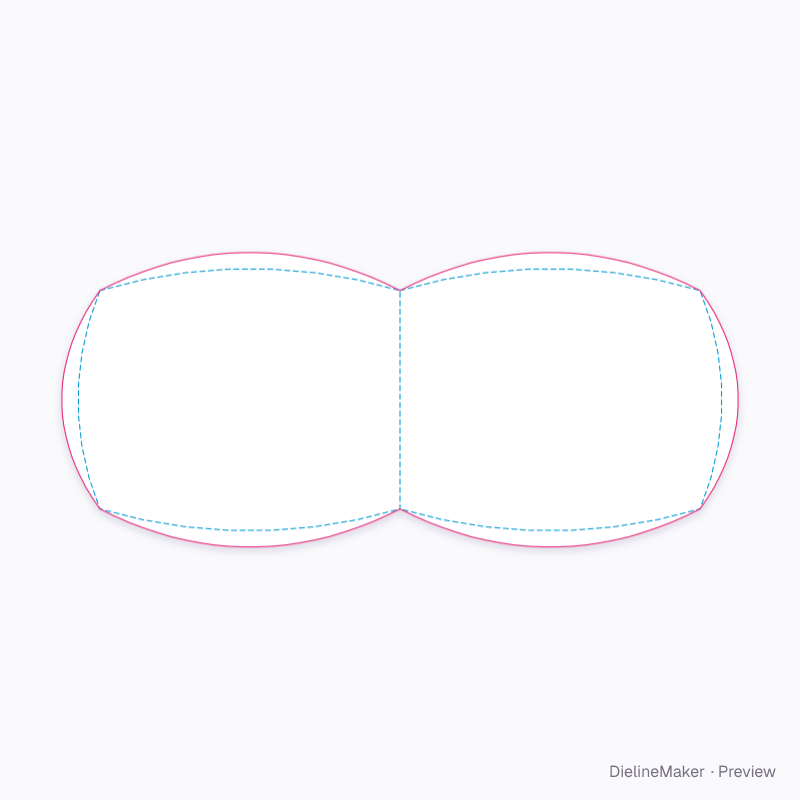

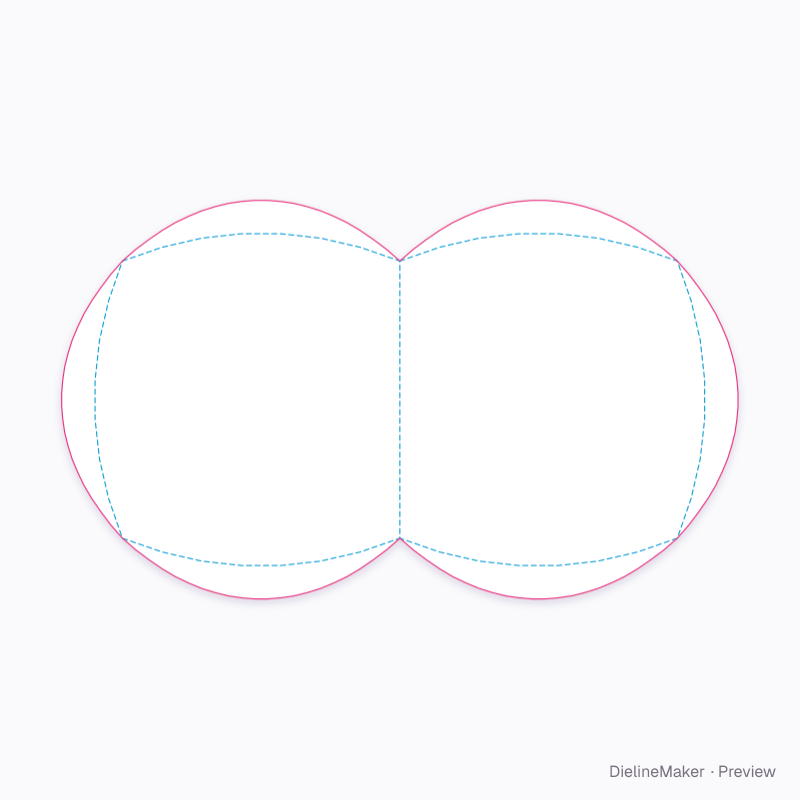

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 1 option; the template and 3D preview follow each change.
- Score curvemm
The cushion pillow box (curved scores on three sides) family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this square cushion favour box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
