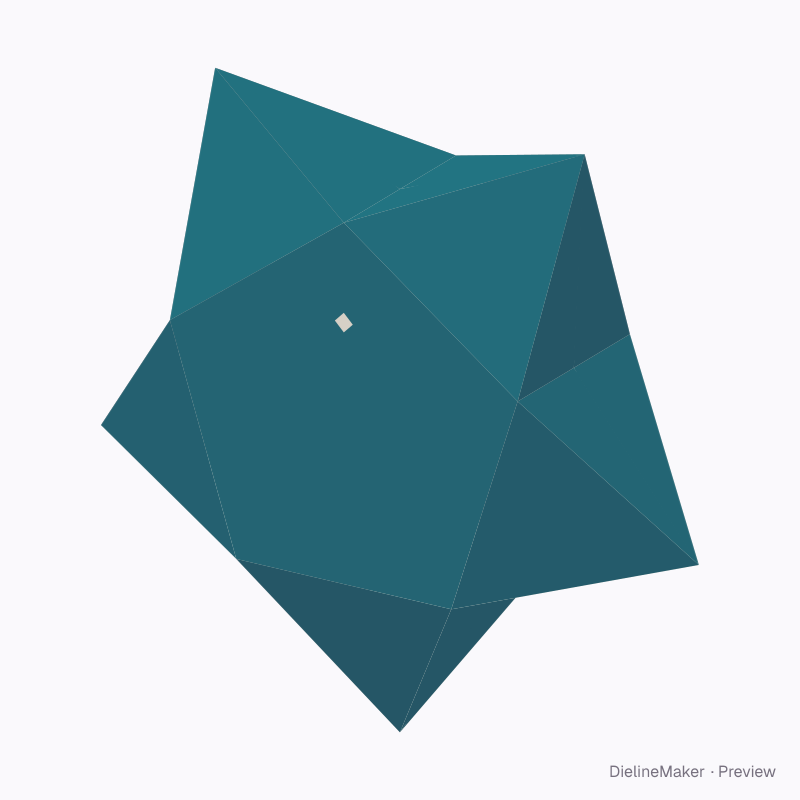

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Origami pillow star box dieline
Two polygon sheets form broad front and back faces, raised star points and an inward-folded rim. The diagonal webs and reverse valley scores are real sheet folds; the halves bond around their star-shaped perimeter. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 140 × 40 mm
OutsideØ 140 × 40 mm
Flat blank143.6 × 139.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Outer point diameter 140 · Front-to-back thickness 40 mm
- Size range
- Outer point diameter 40–600 · Front-to-back thickness 5–200 mm
- Manufacturing
- Ø 140 × 40 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Pillow star front and joining tabs, Pillow star back
- Board area
- 0.028 m² · about 33 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Star pointscount
- Cord hole diametermm
- Perimeter joining tabsmm

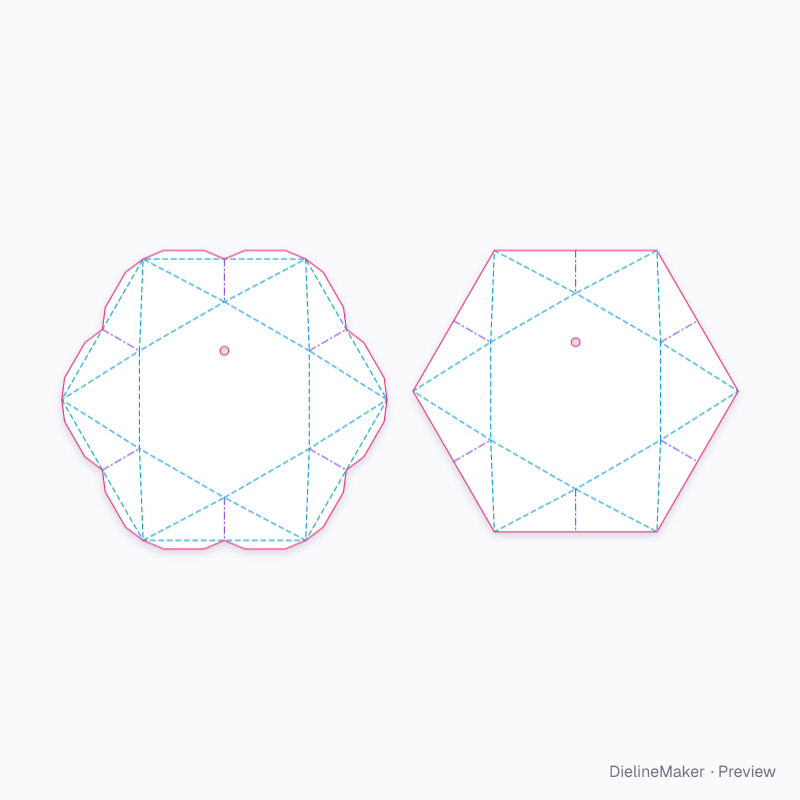

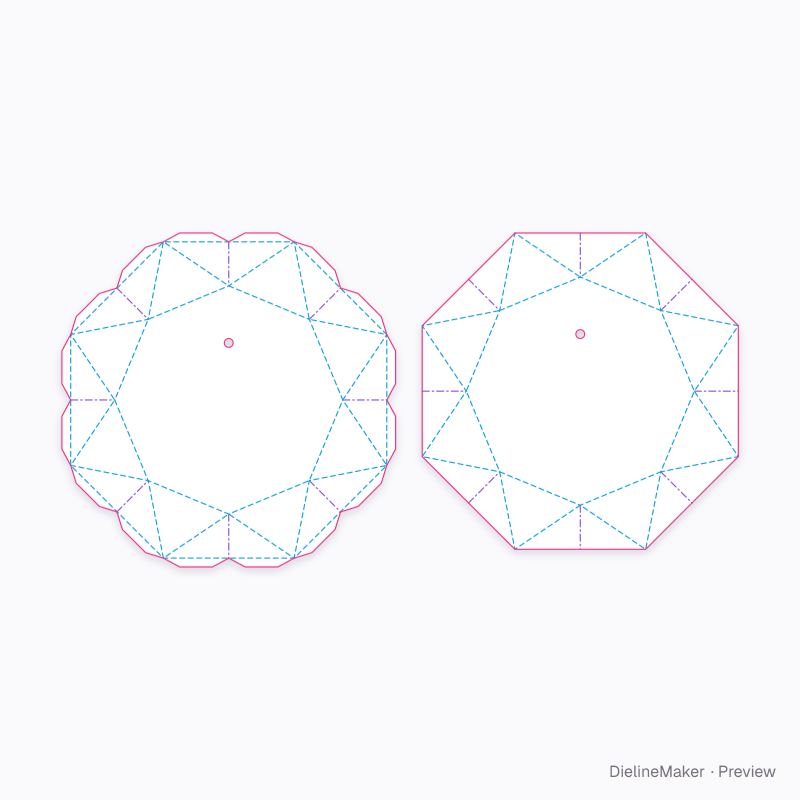

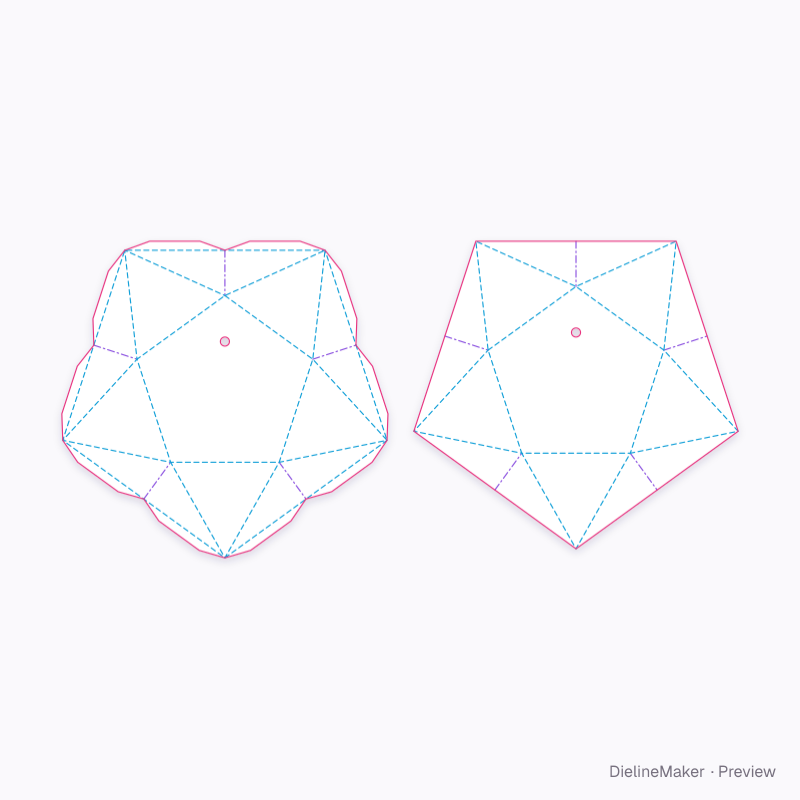

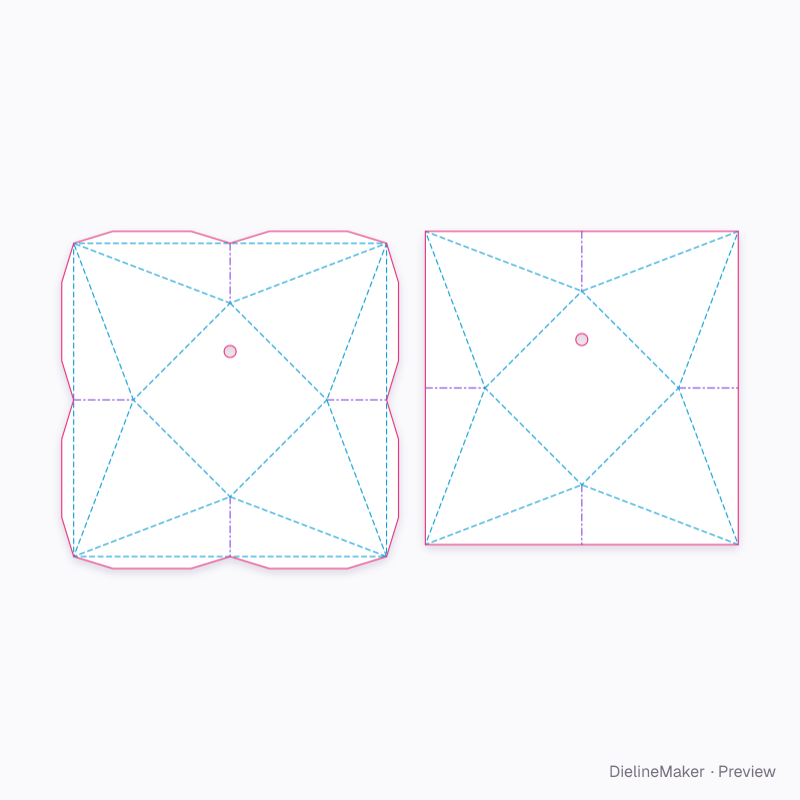

Ready-sized origami pillow star box presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
