Irregular prism tuck tube dieline

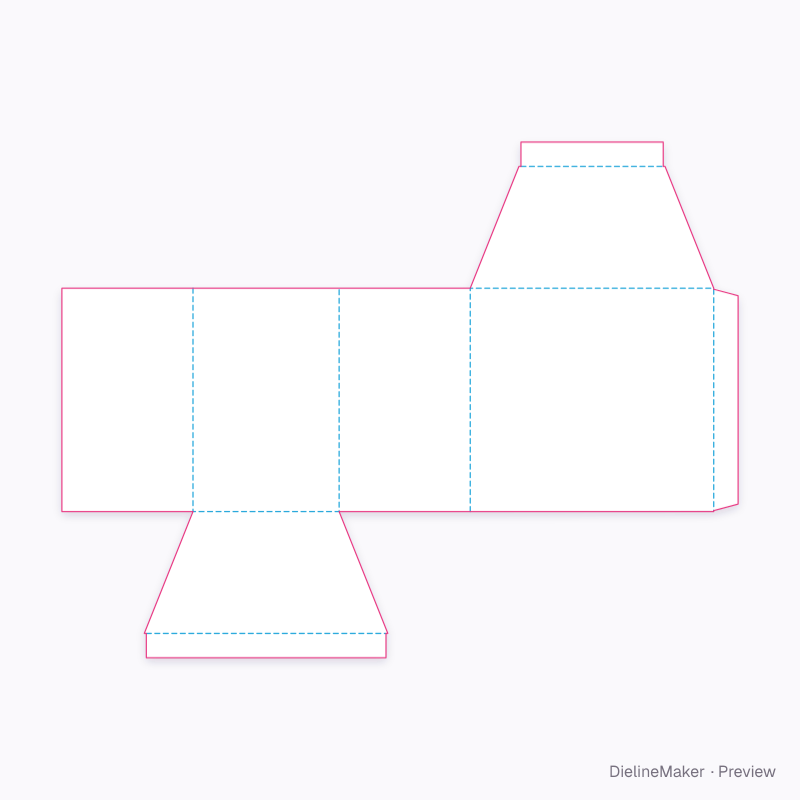

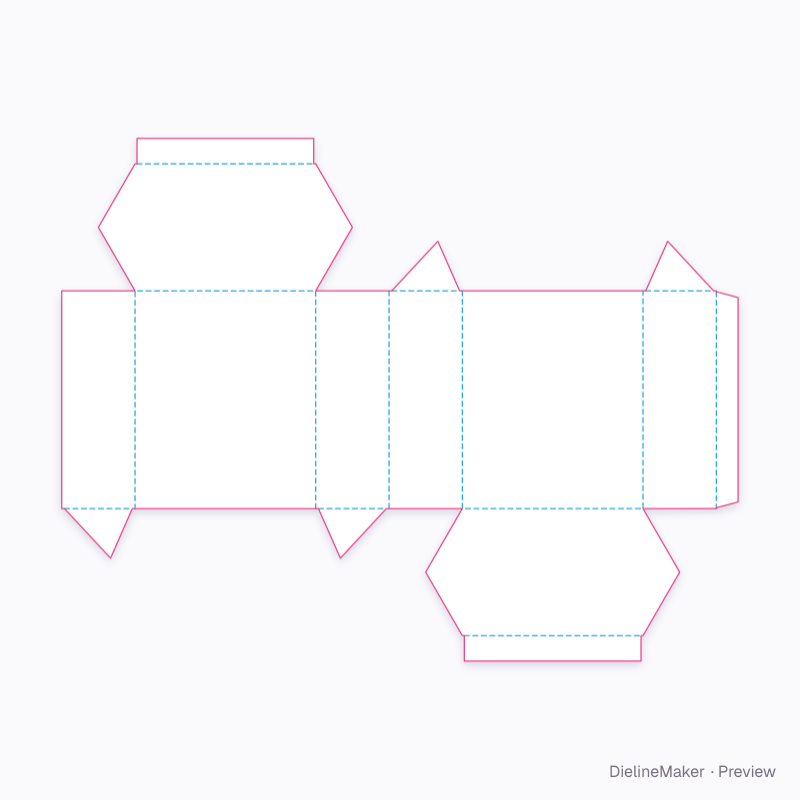

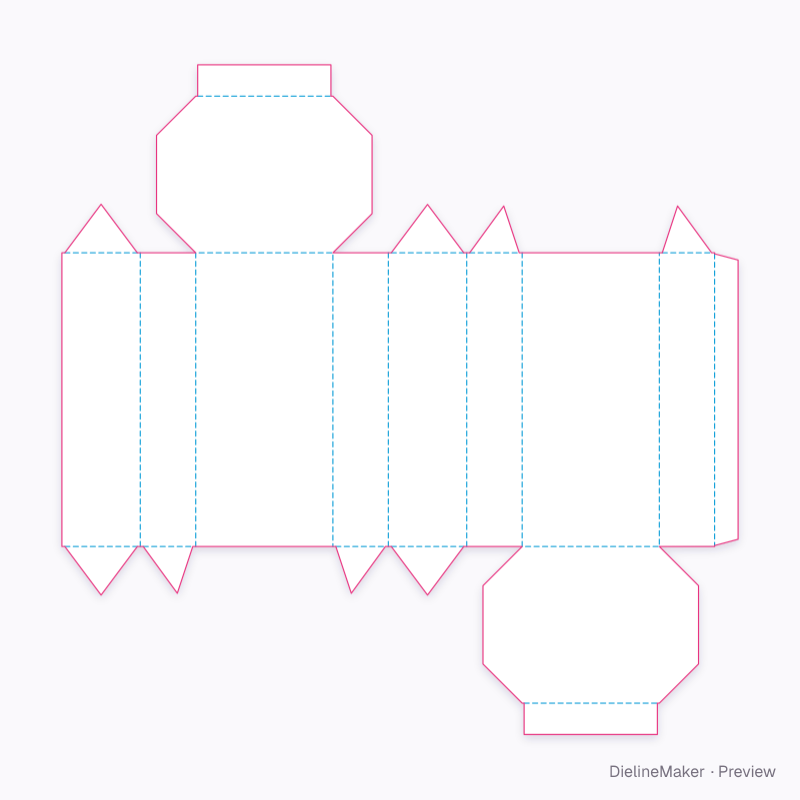

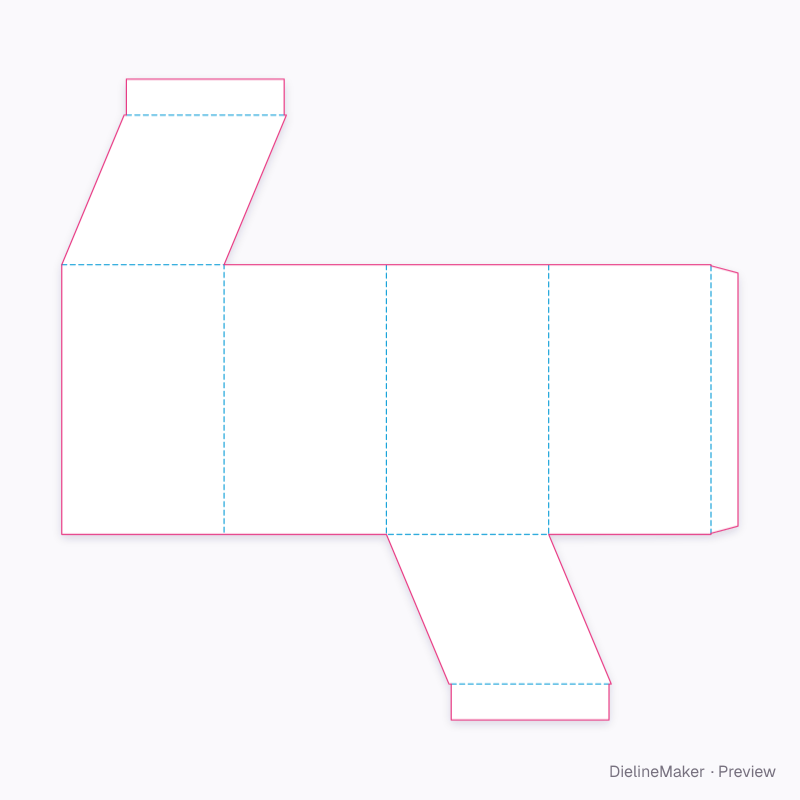

A tuck-end tube with an irregular cross-section: elongated hexagon, chamfered octagon, rhombus, rhomboid or trapezoid, with matching polygon lids at both ends. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 70 × 120 mm
Outside141 × 71 × 121 mm
Flat blank372.8 × 288 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-IRREGULAR-PRISM-TUCK-01
- Inside size
- Length 140 · Width 70 · Height 120 mm
- Size range
- Length 30–400 · Width 20–300 · Height 30–500 mm
- Manufacturing
- 140.5 × 70.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.066 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350GD2 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-IRREGULAR-PRISM-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Wall 1 | 40.4 × 120 | – × H |
| Wall 2 | 99.6 × 120 | – × H |
| Dust flap ×4 | 37.4 × 27.3 | – |
| Wall 3 | 40.4 × 120 | – × H |
| Top lid | 99.6 × 70 | – × W |
| Wall 4 | 40.4 × 120 | – × H |
| Top tuck | 97.6 × 14 | – |
| Wall 5 | 99.6 × 120 | – × H |
| Wall 6 | 40.4 × 120 | – × H |
| Bottom lid | 99.6 × 70 | – × W |
| Glue flap | 12 × 119 | – × H − 2T |
| Bottom tuck | 97.6 × 14 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Section5 options
- Chamfer / pointmm
- Rhomboid slant°
- Tuck depthmm
