Parametric structureDisplay
Auto-bottom cosmetic display dieline
A low-front folding-carton display with sloping side tops and a tall back. Choose a hand-assembled snap-lock, pre-glued crash-lock or tuck base. A ready-sized preset of the cutaway display carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 80 × 135 mm
Outside151 × 81 × 136 mm
Flat blank473.5 × 184.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 150 · Inside width 80 · Inside height 135 mm
- Size range
- Inside length 30–400 · Inside width 20–300 · Inside height 30–400 mm
- Manufacturing
- 150.5 × 80.5 × 135.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.059 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350GD2 350Black 350F-fluteE-flute WSBS 18 pt
- Good for

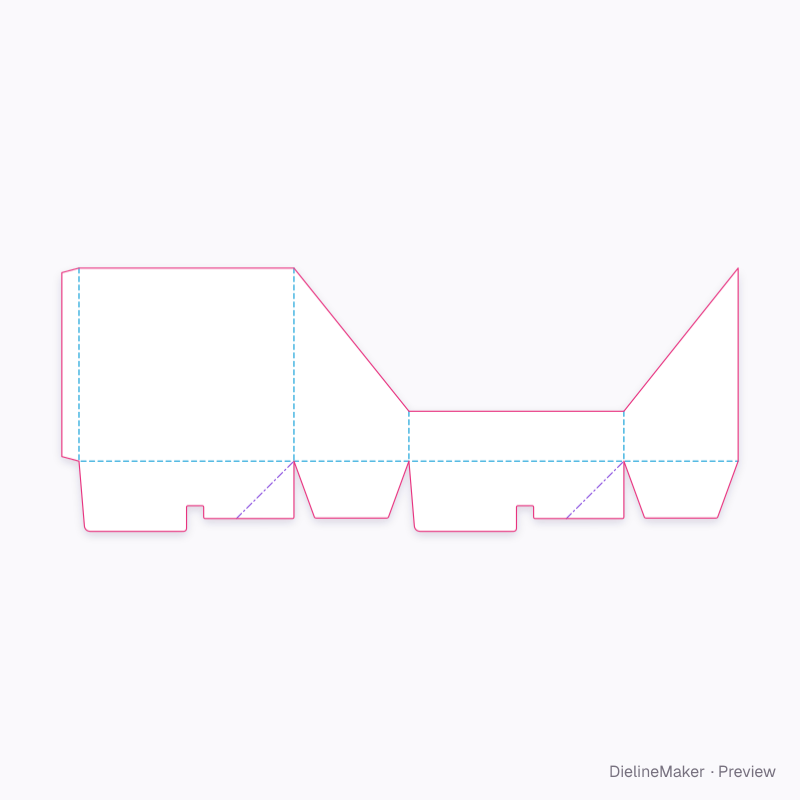

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 150.5 × 35 | L + T × – |
| Left side | 80.5 × 35 | W + T × – |
| Back | 150.5 × 135.5 | L + T × H + T |
| Right side | 80 × 35 | W × – |
| Glue flap | 12 × 135.5 | – × H + T |
| Crash-lock flap (back) | 150.5 × 49.3 | L + T × – |
| Glued web ×2 | 56.9 × 28 | – |
| Bottom side flap | 80.5 × 40 | W + T × – |
| Crash-lock flap (front) | 150.5 × 49.3 | L + T × – |
| Bottom side flap | 80 × 40 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Bottom3 options
- Front lip heightmm
- Tuck depthmm
- Slit lockon / off
- Fitted coveron / off
- Hanging headeron / off
