Parametric structureDisplay

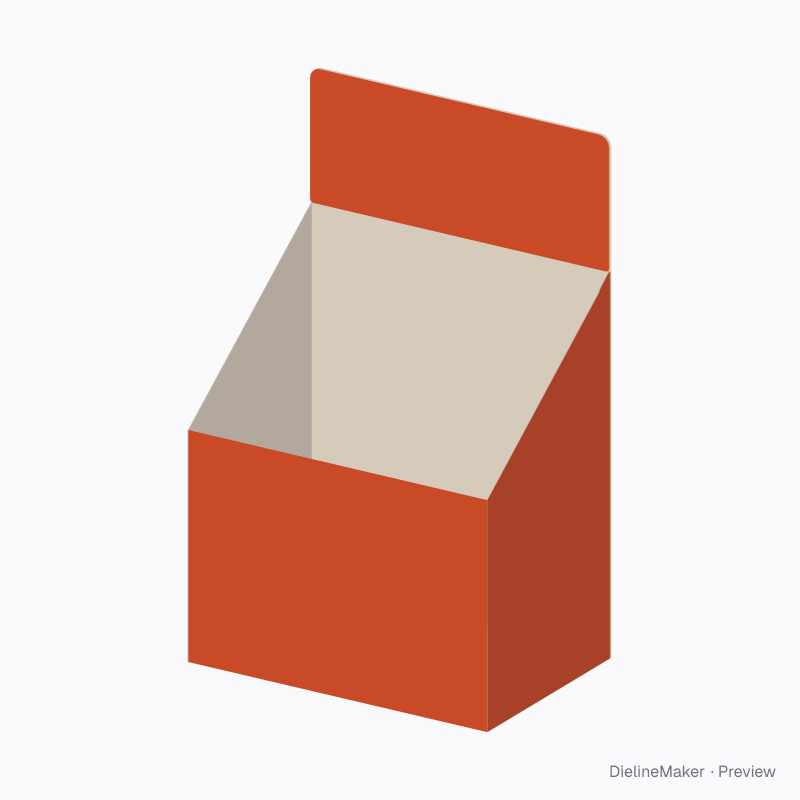

Dump bin dieline
A free-standing open-top bin for loose products: a glued corrugated tube with a crash-lock base that pops open, a lowered front and a fold-over header. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside590 × 390 × 700 mm
Outside596.4 × 396.4 × 700 mm
Flat blank2001.6 × 1426.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 590 · Depth 390 · Back height 700 mm
- Size range
- Width 200–1200 · Depth 150–1000 · Back height 150–1200 mm
- Manufacturing
- 593.2 × 393.2 × 700 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 1.793 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline

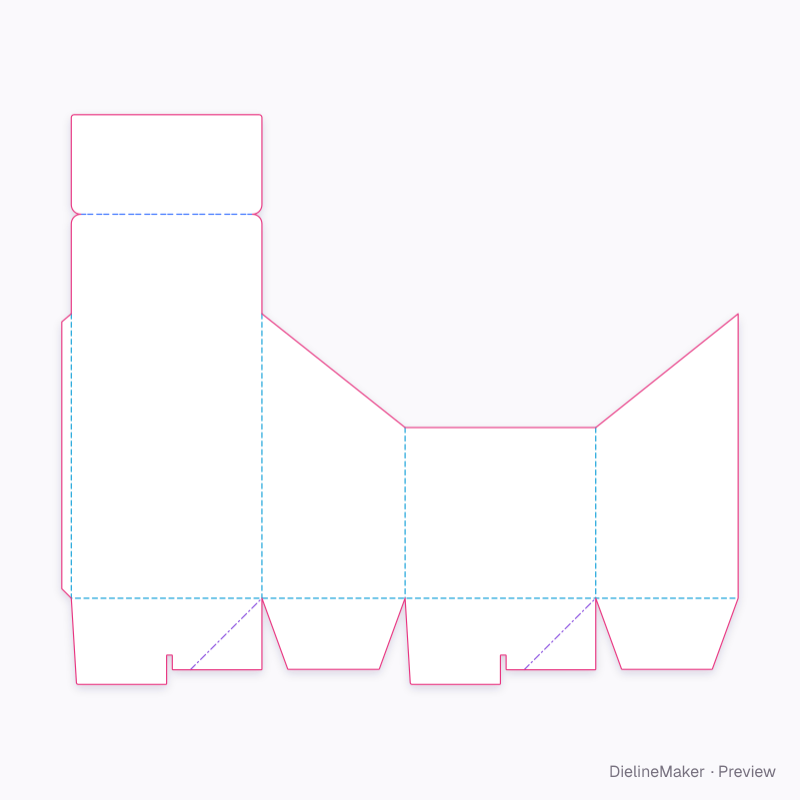

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Double crease
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 593.2 × 420 | L + T × front |
| Left side | 393.2 × 420 | W + T × H → front |
| Back | 593.2 × 700 | L + T × H + header |
| Right side | 390 × 420 | W × front → H |
| Glue flap | 32 × 700 | – × H |
| Header | 553.2 × 245 | L + T × header |
| Crash-lock flap (back) | 593.2 × 236.6 | L + T × – |
| Glued web | 278 × 138.6 | – |
| Bottom side flap | 393.2 × 195 | W + T × – |
| Crash-lock flap (front) | 593.2 × 236.6 | L + T × – |
| Glued web | 138.6 × 278 | – |
| Bottom side flap | 390 × 195 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Front heightmm
- Headermm
- Bottom2 options
- Hook reachmm
- Hook notchmm
Ready-sized dump bin presets
The same structure with sizes, boards and options set for a use.

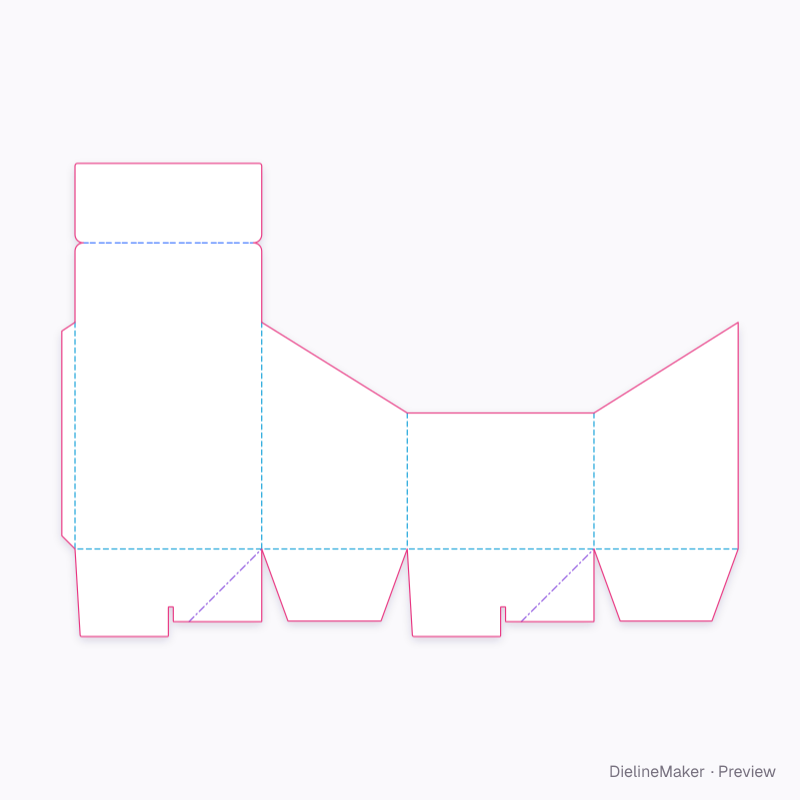

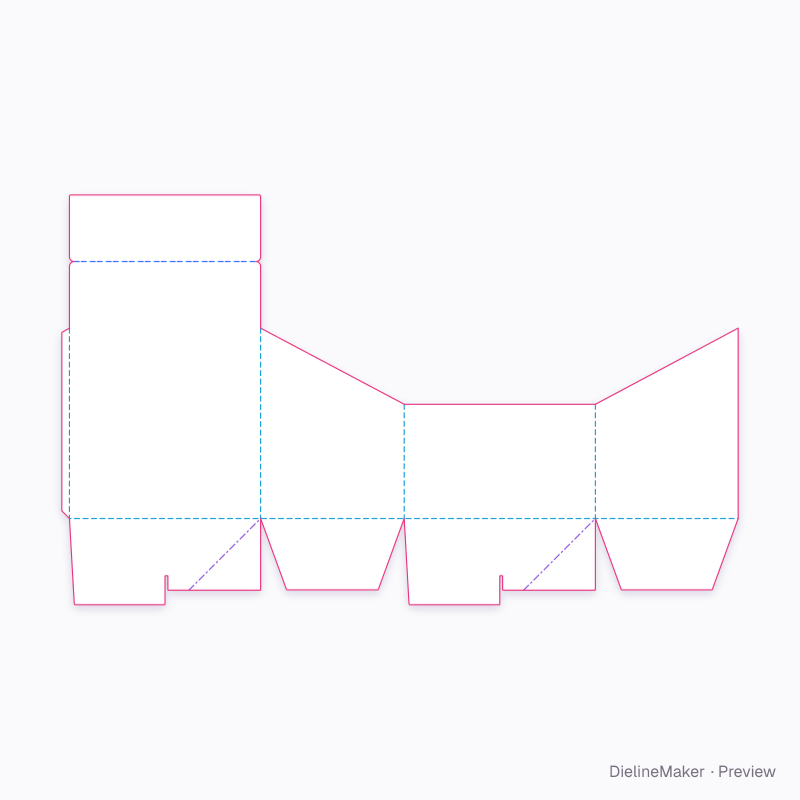

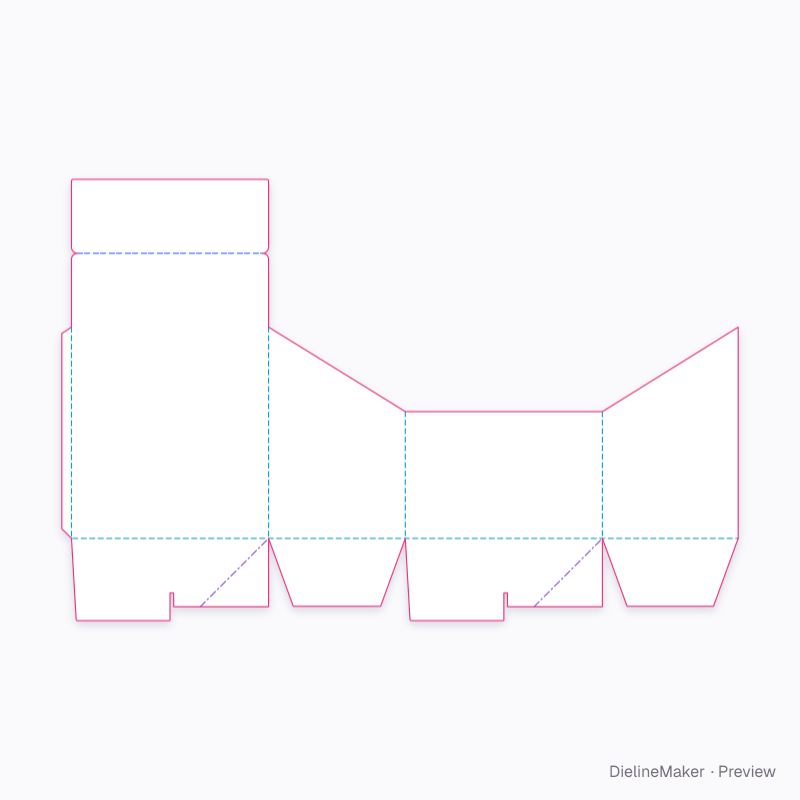

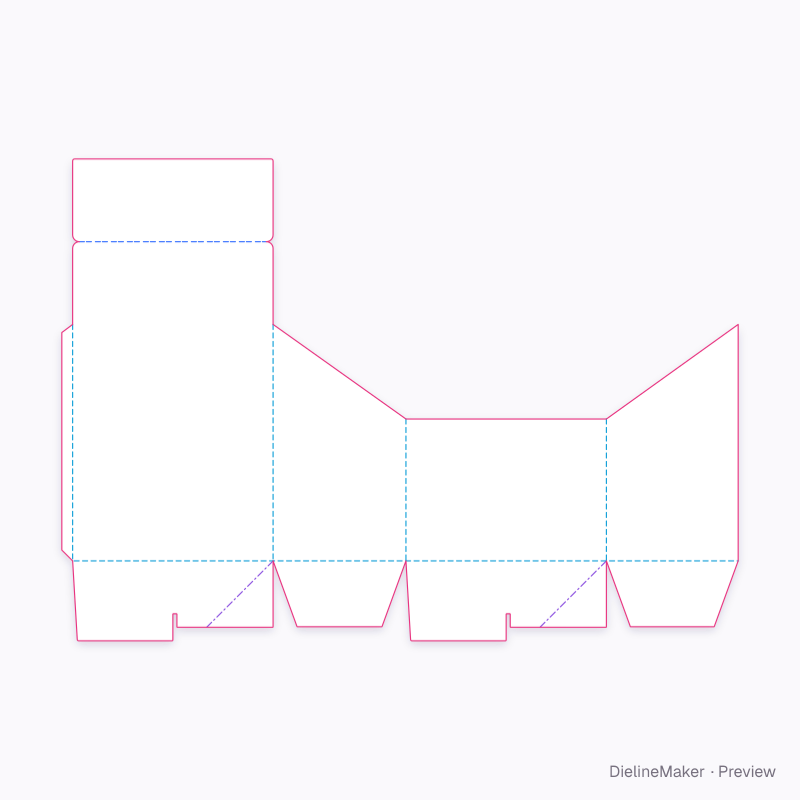

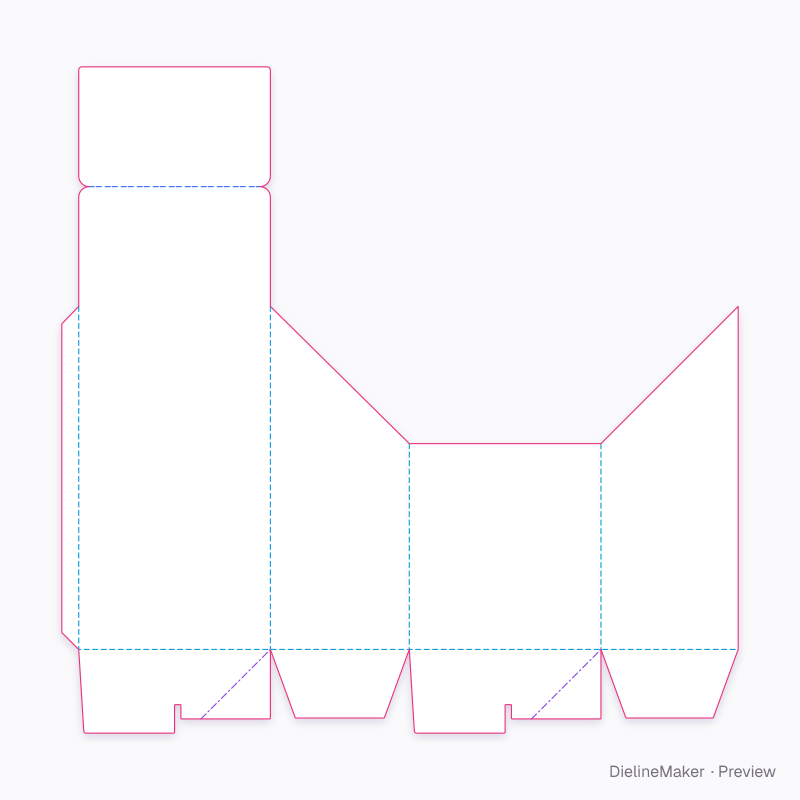

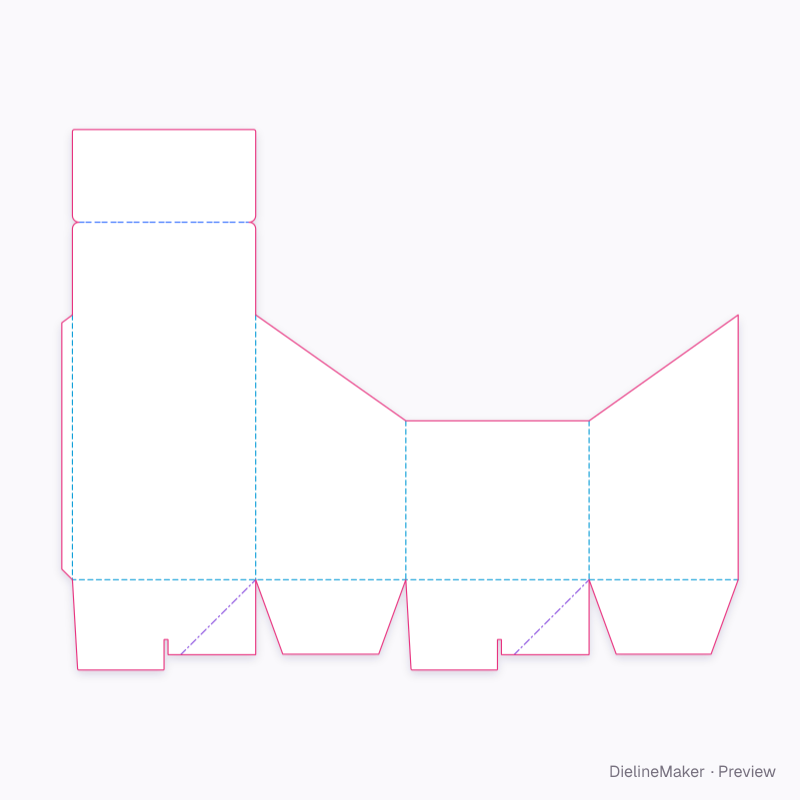

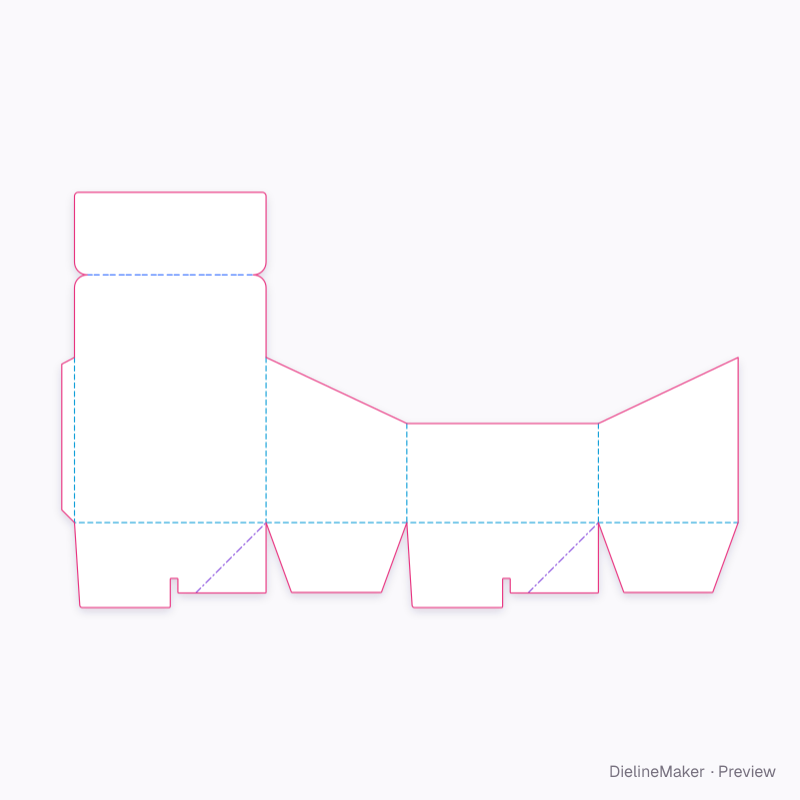

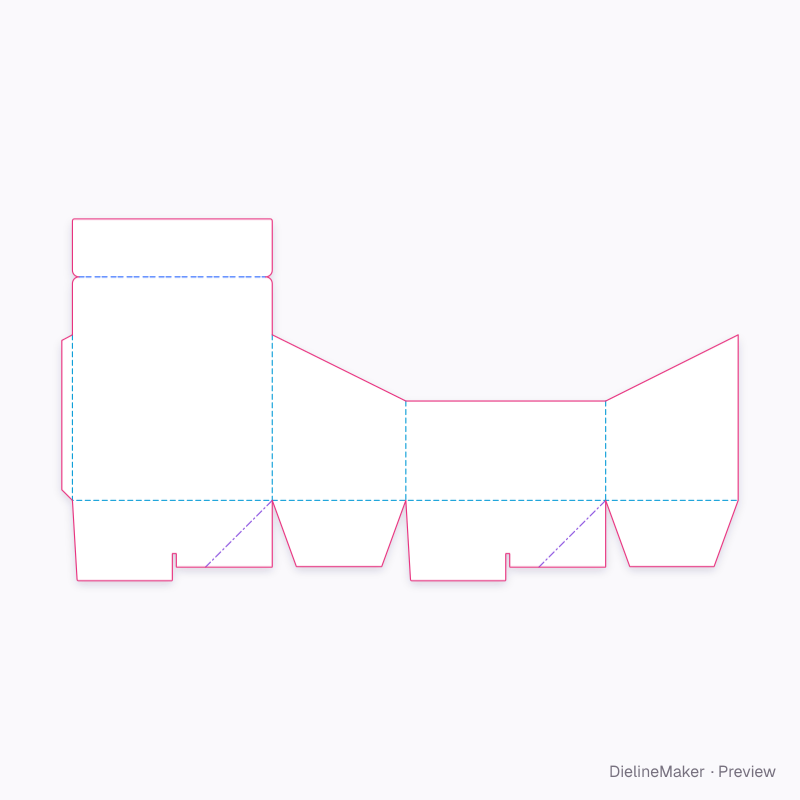

- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

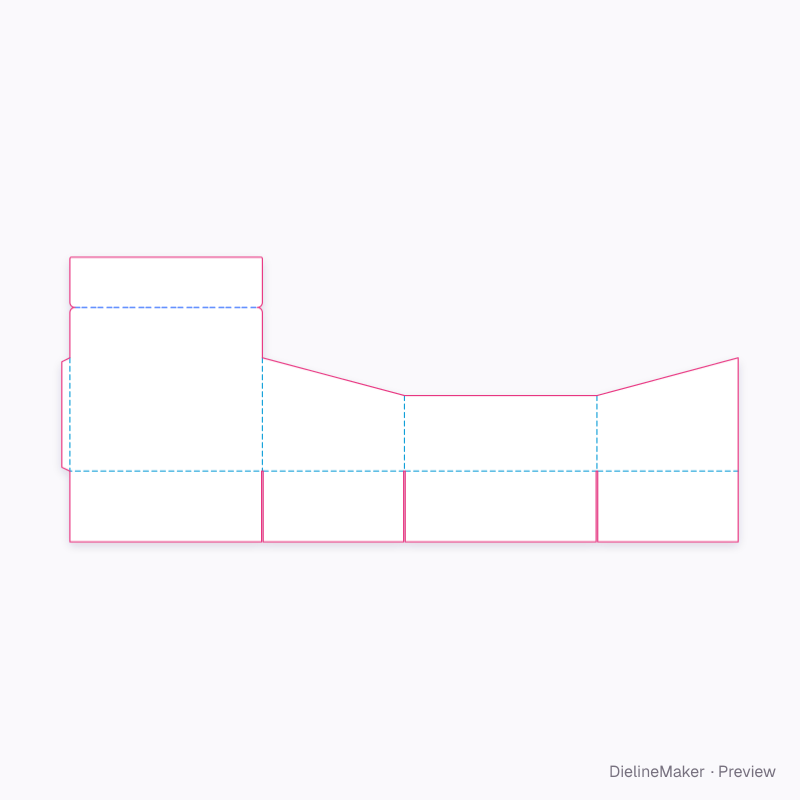

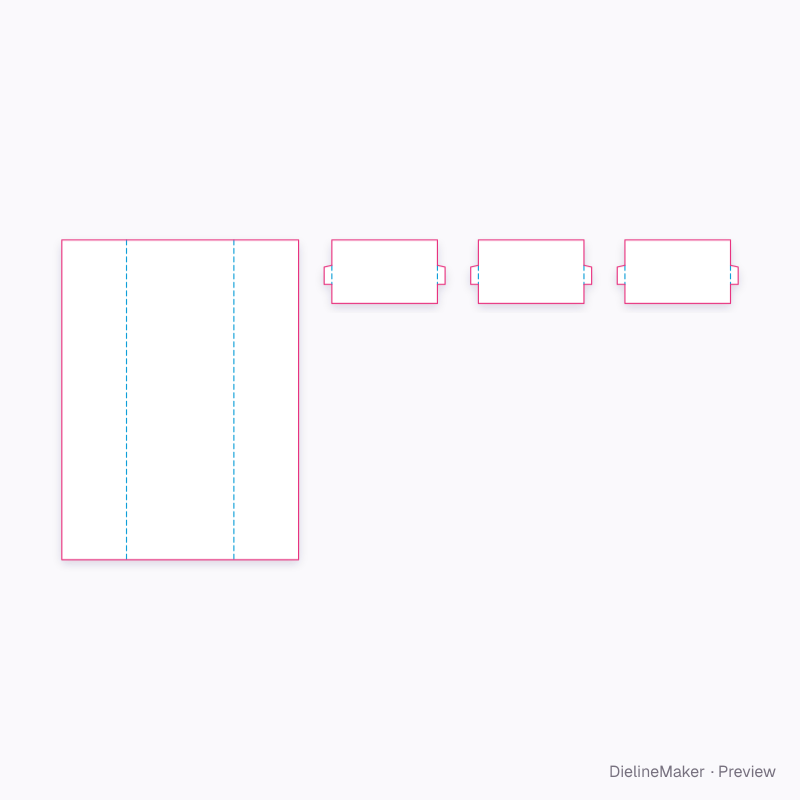

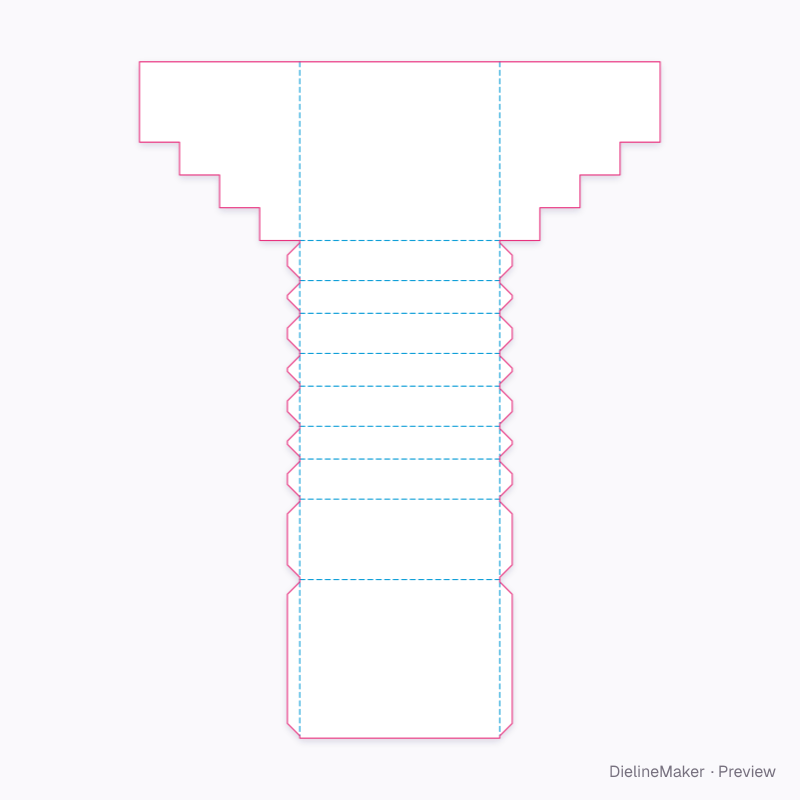

Similar structures

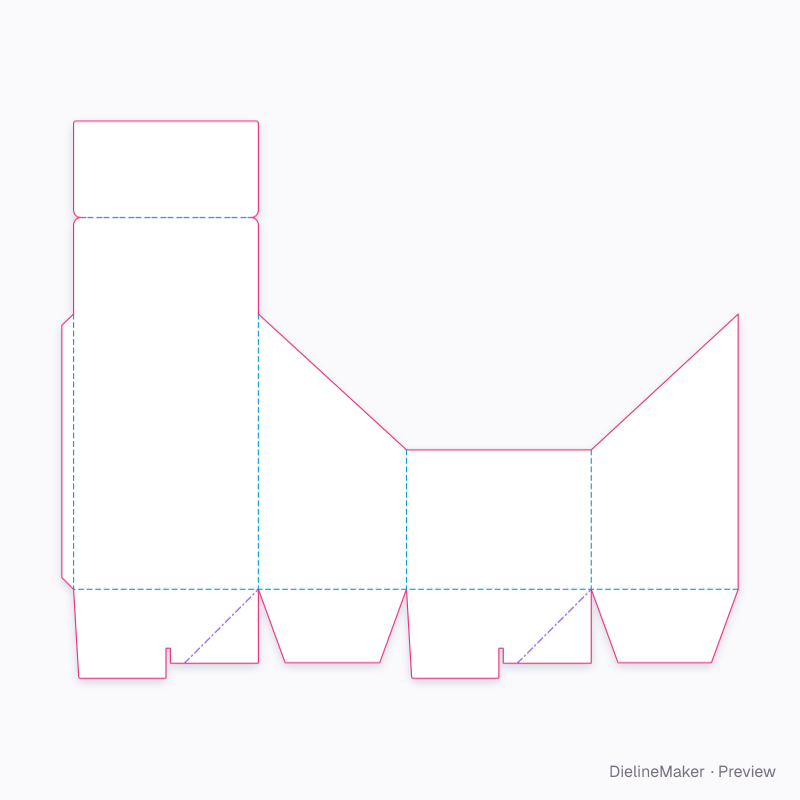

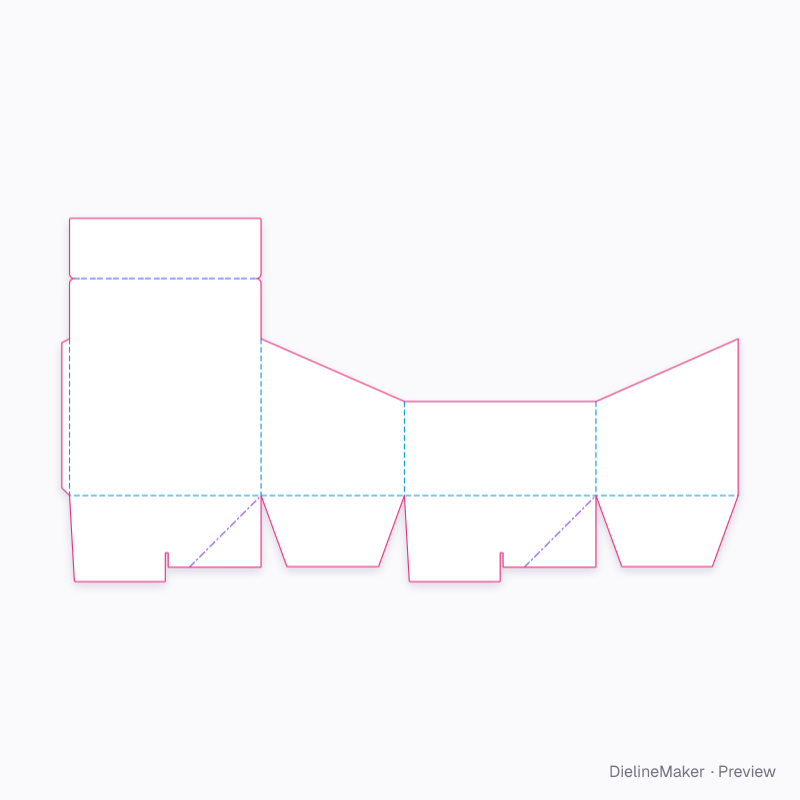

Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this dump bin yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
