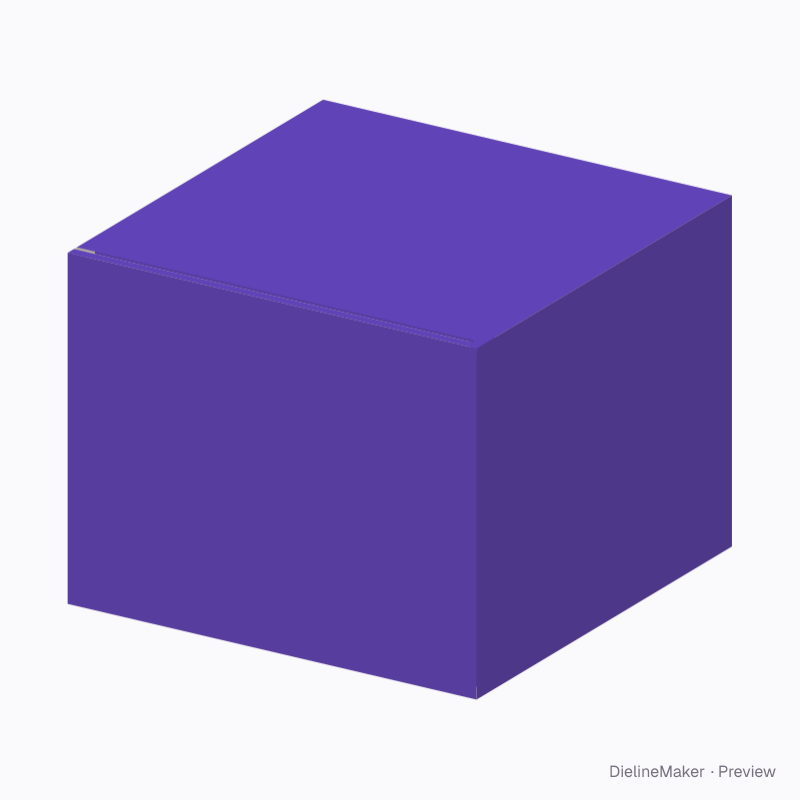

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DECK-MAILER-01Mailer
Single candle deck mailer dieline
A mailer whose front wall rolls over into a raised deck with round or rectangular openings and a support leg, all from one blank. Rectangular openings can retain folded walls and base returns; lid or open tray. A ready-sized preset of the mailer with integral support deck — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside140 × 140 × 110 mm
Outside143.2 × 143.2 × 113.2 mm
Flat blank360 × 765.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DECK-MAILER-01
- Inside size
- Length 140 · Depth 140 · Height 110 mm
- Size range
- Length 80–500 · Depth 60–400 · Height 30–250 mm
- Manufacturing
- 141.6 × 141.6 × 111.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.144 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KF-fluteSBS 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DECK-MAILER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 140 × 140 | – |
| Front | 140 × 110 | – × H |
| Back | 140 × 110 | – × H |
| End wall ×2 | 110 × 140 | H × – |
| Front roll | 140 × 3.4 | – |
| Glue flap ×4 | 20 × 105.8 | – |
| Lid | 140 × 135 | – |
| Front inner ply | 131.6 × 60 | – |
| Front tuck | 129.6 × 25 | – |
| Support deck | 131.6 × 132.4 | – |
| Deck support leg | 131.6 × 50 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 7 options; the template and 3D preview follow each change.
- Deck heightmm
- Openings acrosscount
- Opening rowscount
- Opening shape2 options
- Opening diametermm
- Hinged lidon / off
- Tuck depthmm
The mailer with integral support deck family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this single candle deck mailer yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
