DM-FRONT-LOCK-MAILER-01Mailer

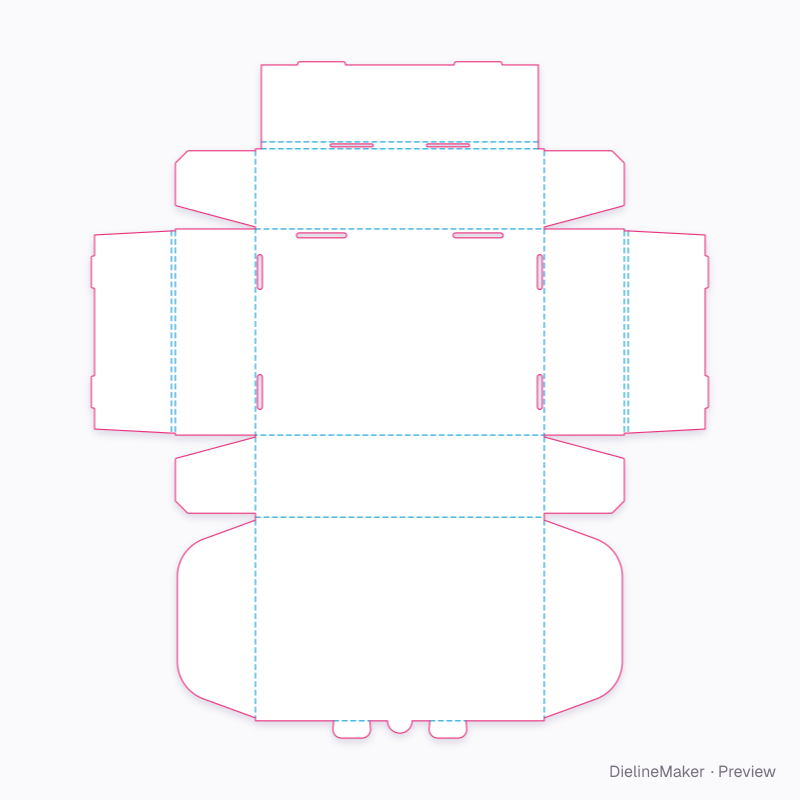

Front-lock mailer dieline
A roll-end mailer with a double front wall; tabs on the lid click into slots along its top. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside230 × 160 × 70 mm
Outside246 × 168.8 × 73.2 mm
Flat blank530.8 × 563.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-FRONT-LOCK-MAILER-01
- Inside size
- Length 230 · Width 160 · Height 70 mm
- Size range
- Length 80–600 · Width 50–450 · Height 25–250 mm
- Manufacturing
- 244.4 × 167.2 × 71.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.214 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KF-fluteB-fluteSBS 350FBB 400Kraft 350Black 350SBS 18 pt

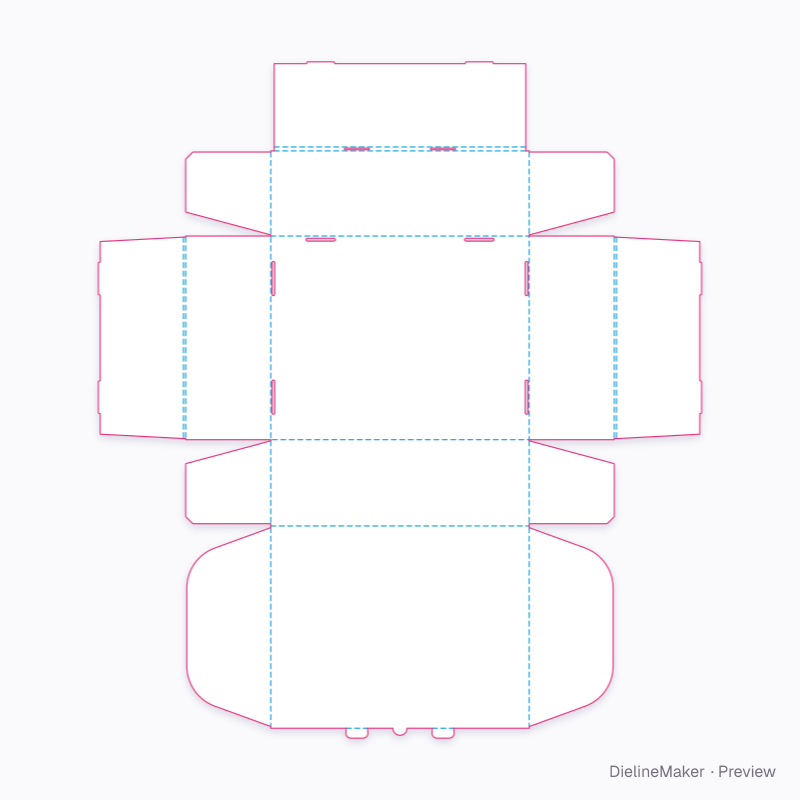

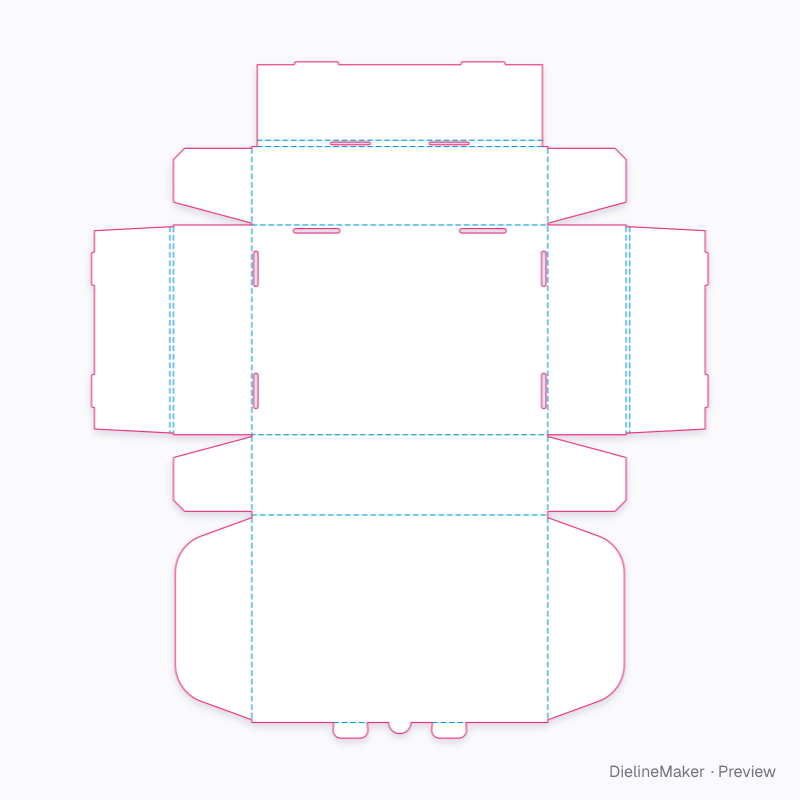

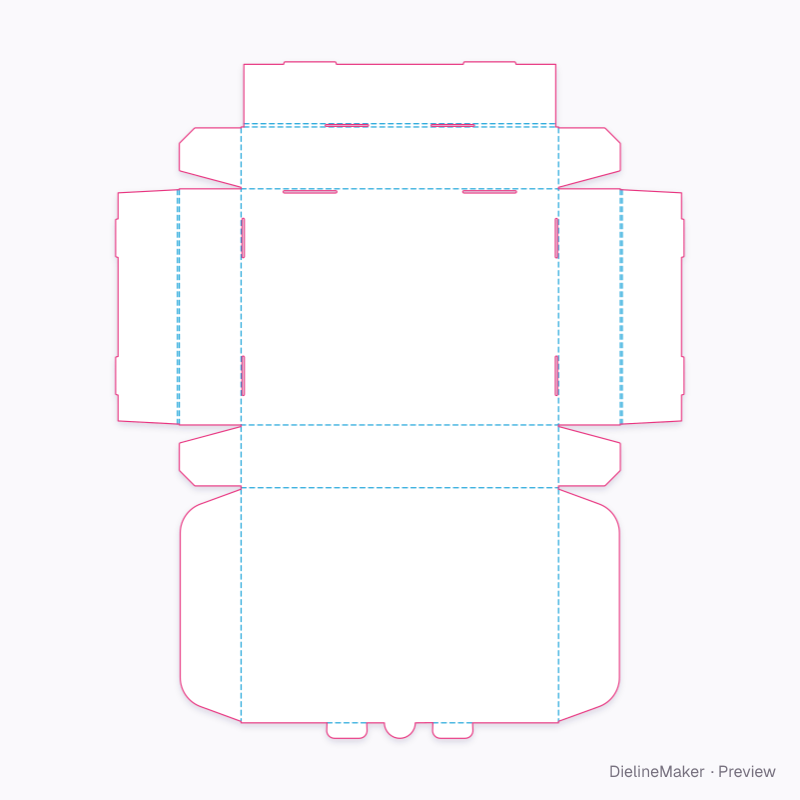

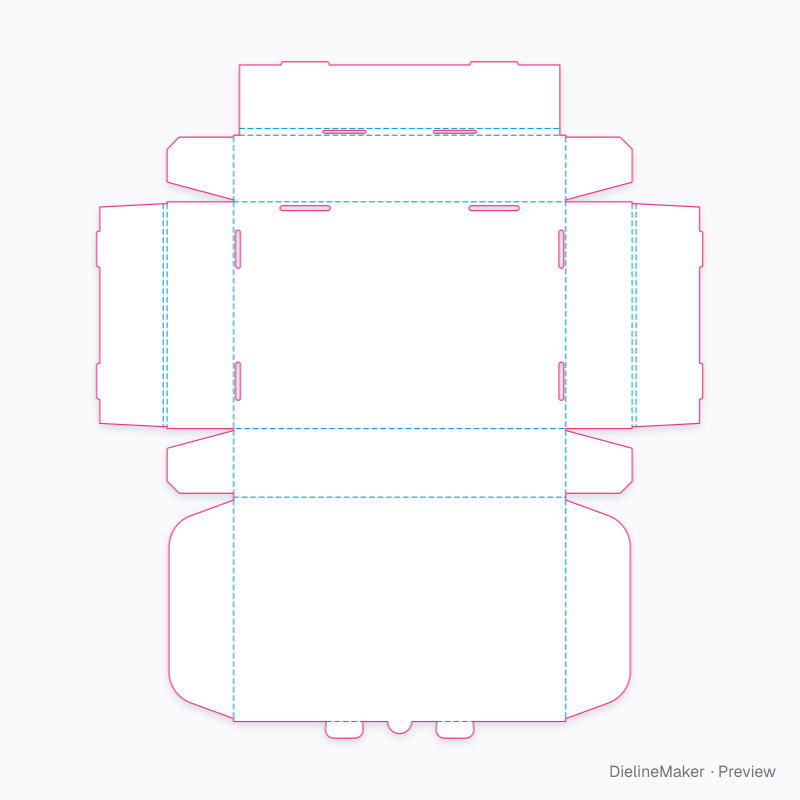

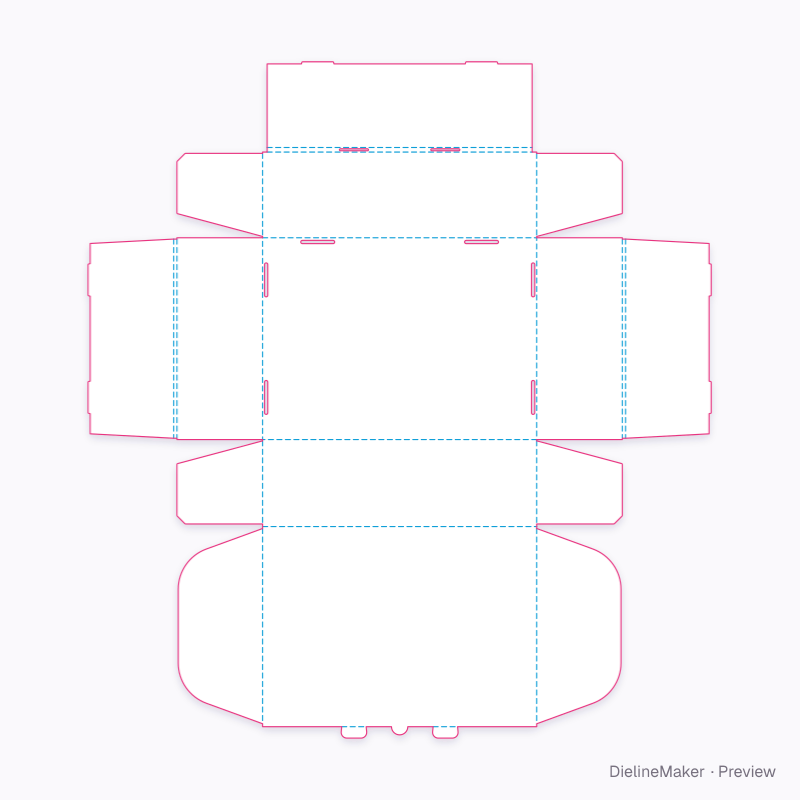

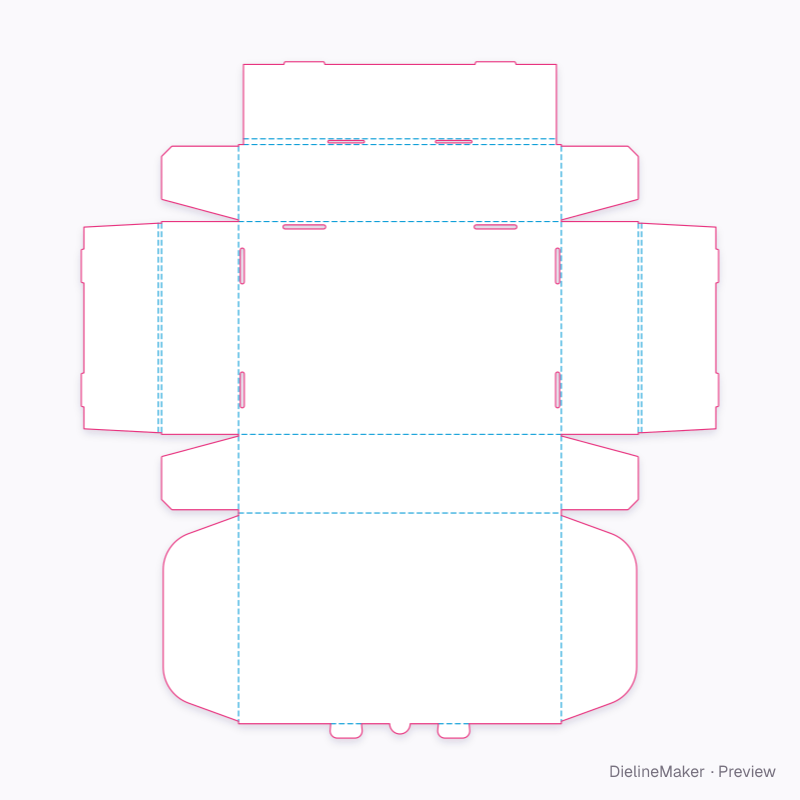

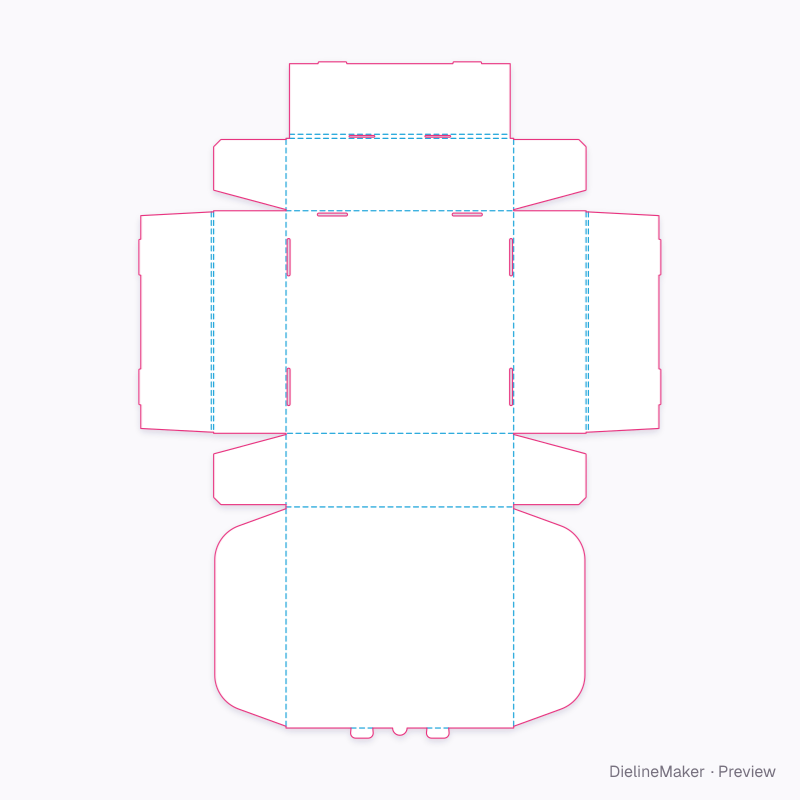

- Good for

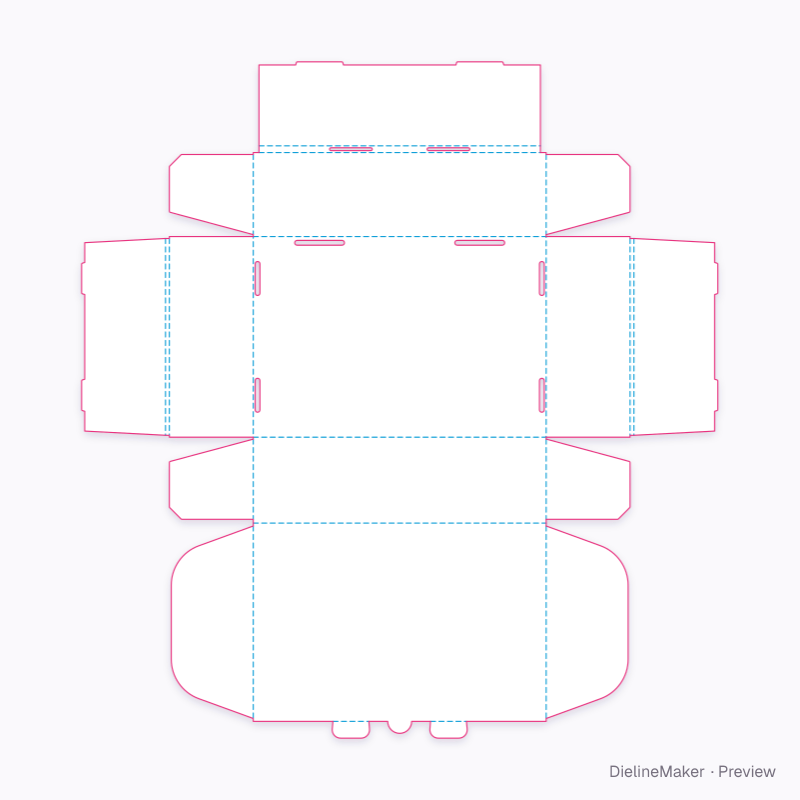

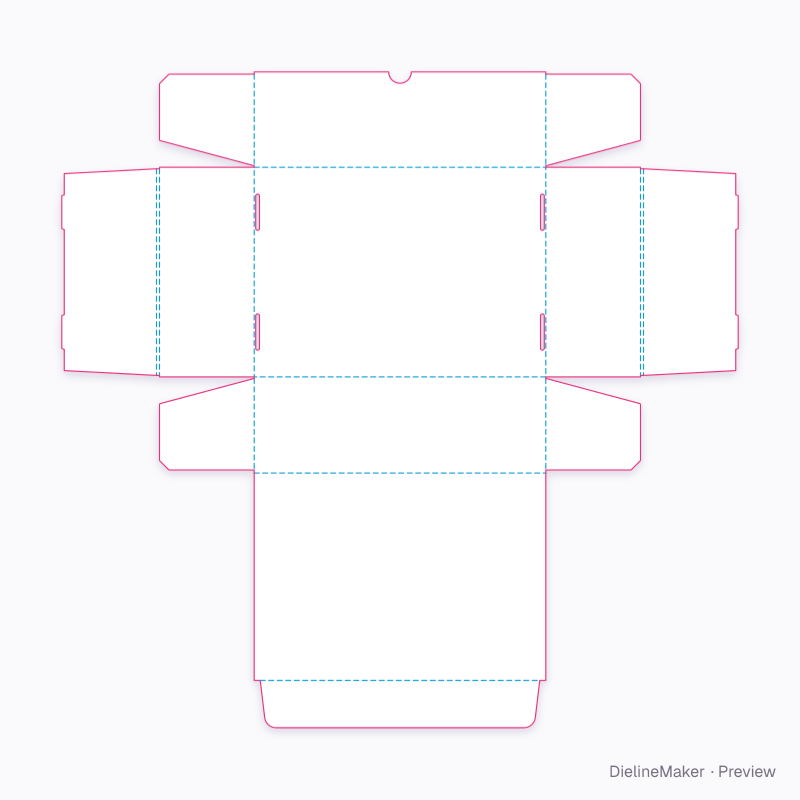

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-FRONT-LOCK-MAILER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 244.4 × 167.2 | – |
| Front | 244.4 × 70 | – × H |
| Front roll | 234.8 × 5.6 | – |
| Front (inside) | 234.8 × 70 | – × H |
| Back | 244.4 × 71.6 | – × H + T |
| Front ear ×2 | 70 × 66.8 | – × H − 2T |
| Back ear ×2 | 70 × 66.8 | – × H − 2T |
| Left end | 70 × 167.2 | H × – |
| Left end roll | 3.2 × 164 | – |
| Left end (inside) | 70 × 164 | H × – |
| Right end | 70 × 167.2 | H × – |
| Right end roll | 3.2 × 164 | – |
| Right end (inside) | 70 × 164 | H × – |
| Lid | 244.4 × 175.2 | – |
| Lid ear ×2 | 68.4 × 160.4 | H − T × – |
| Lock tab ×2 | 30 × 14 | – |
