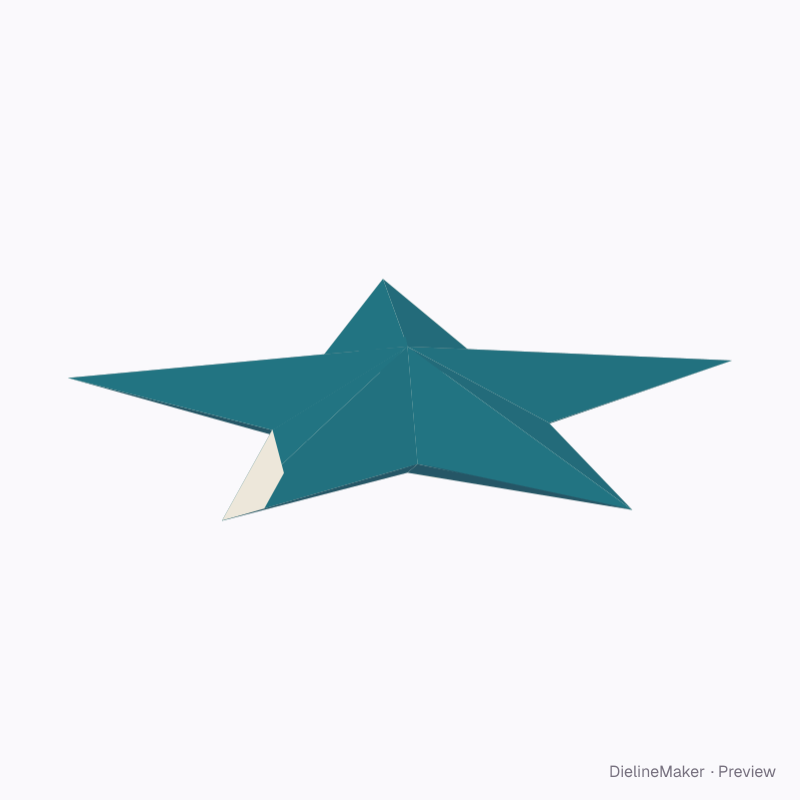

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Hollow dimensional star dieline
A hollow star made from one four-face sheet per point. Raised front and back centres form the dimensional ridges; the separate spikes close on their own seams and bond together around the inner valleys. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 180 × 35 mm
OutsideØ 180 × 35 mm
Flat blank90.5 × 99.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Outer point diameter 180 · Front-to-back depth 35 mm
- Size range
- Outer point diameter 40–600 · Front-to-back depth 5–200 mm
- Manufacturing
- Ø 180 × 35 mm score to score · inside vs outside sizes
- Parts
- 5 parts — Star point 1 · join to 5, Star point 2 · join to 1, Star point 3 · join to 2, Star point 4 · join to 3, Star point 5 · join to 4
- Board area
- 0.027 m² · about 84 up on a 720 × 1020 mm sheet
- Default board
- Art paper 170 g · 0.16 mm caliper
- Board options
- Paper 170SBS 300Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Star pointscount
- Inner valley diametermm
- Odd-point joining tabsmm
- Even-point joining tabsmm

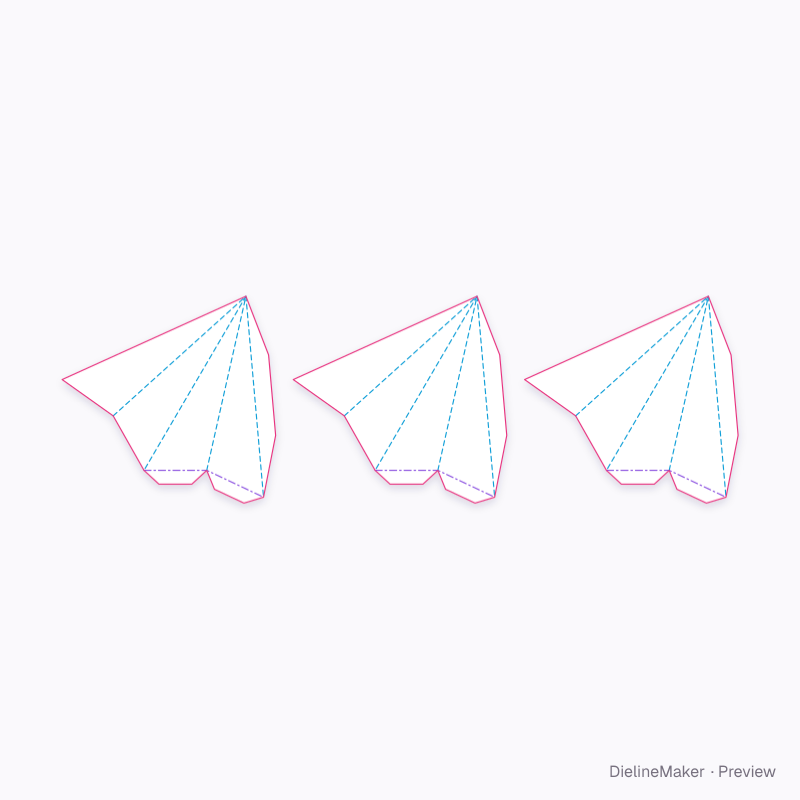

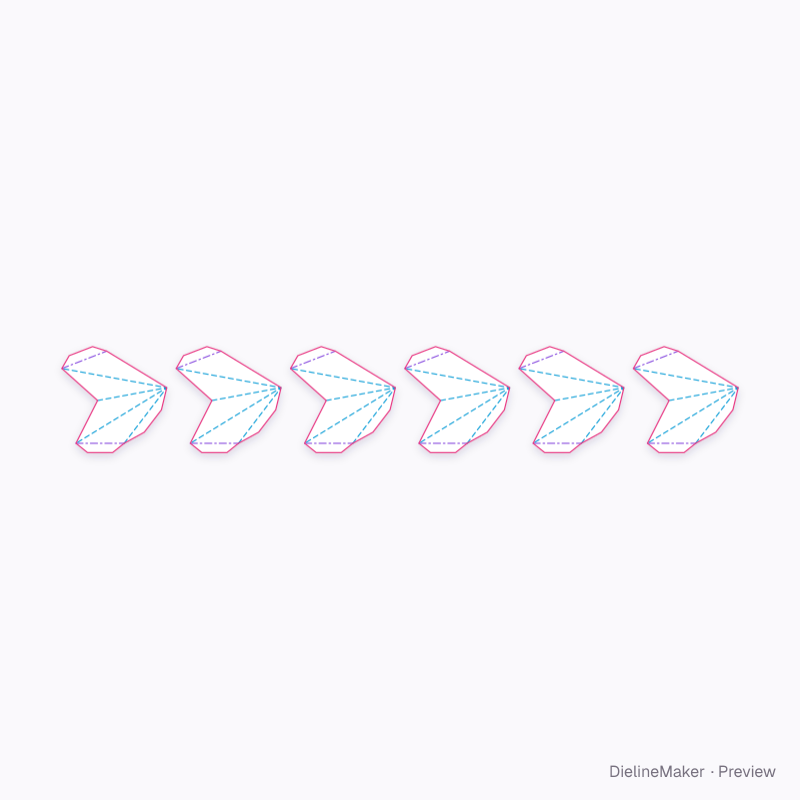

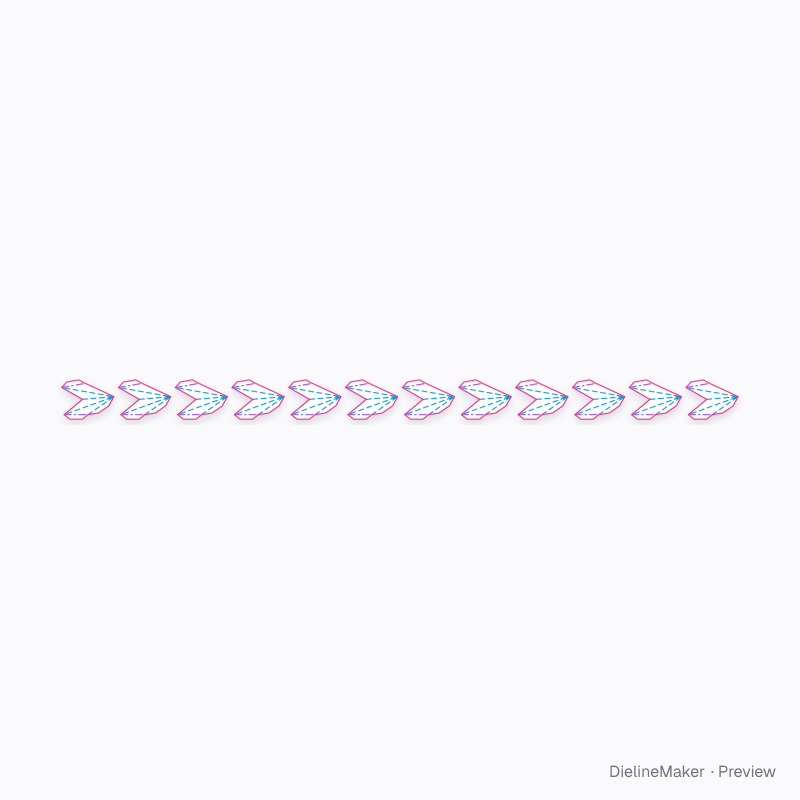

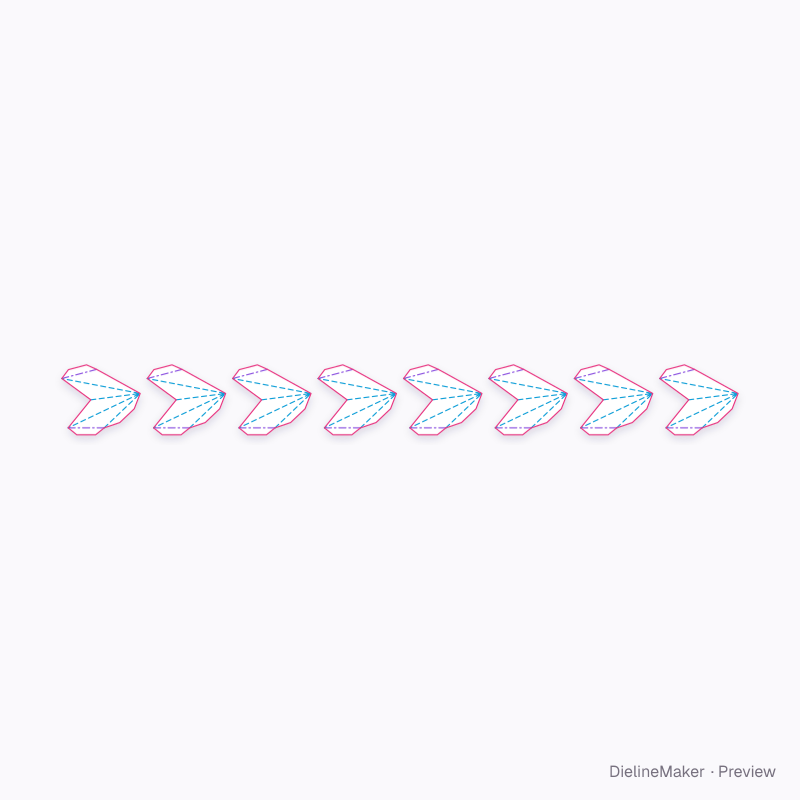

Ready-sized hollow dimensional star presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset

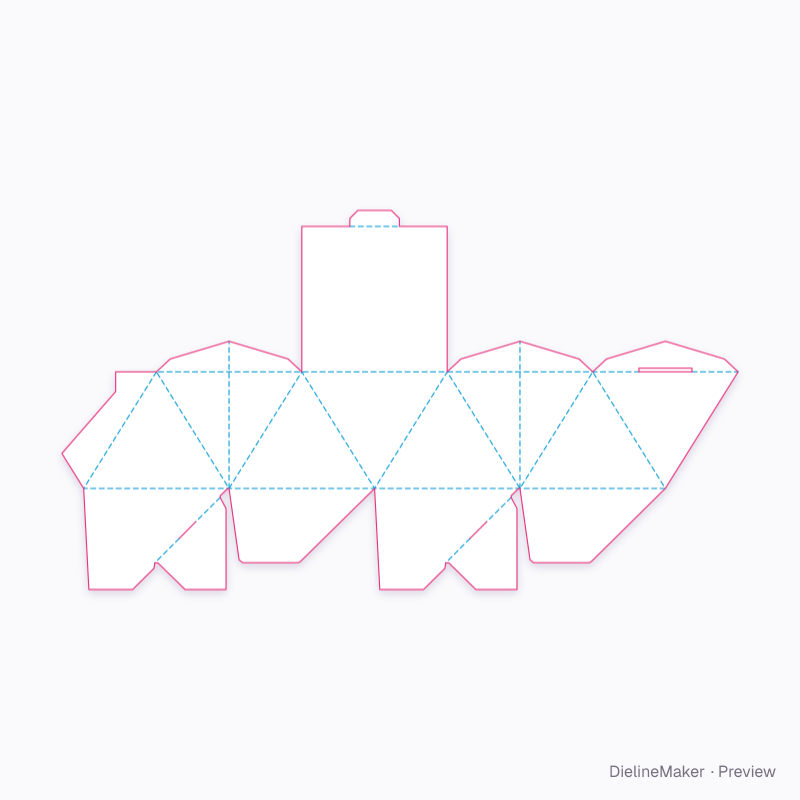

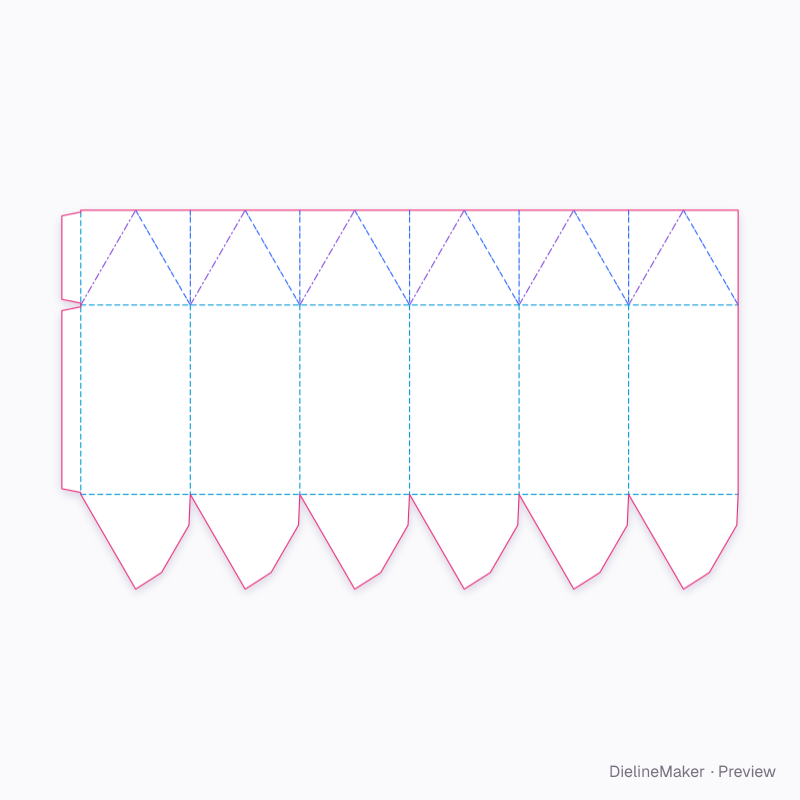

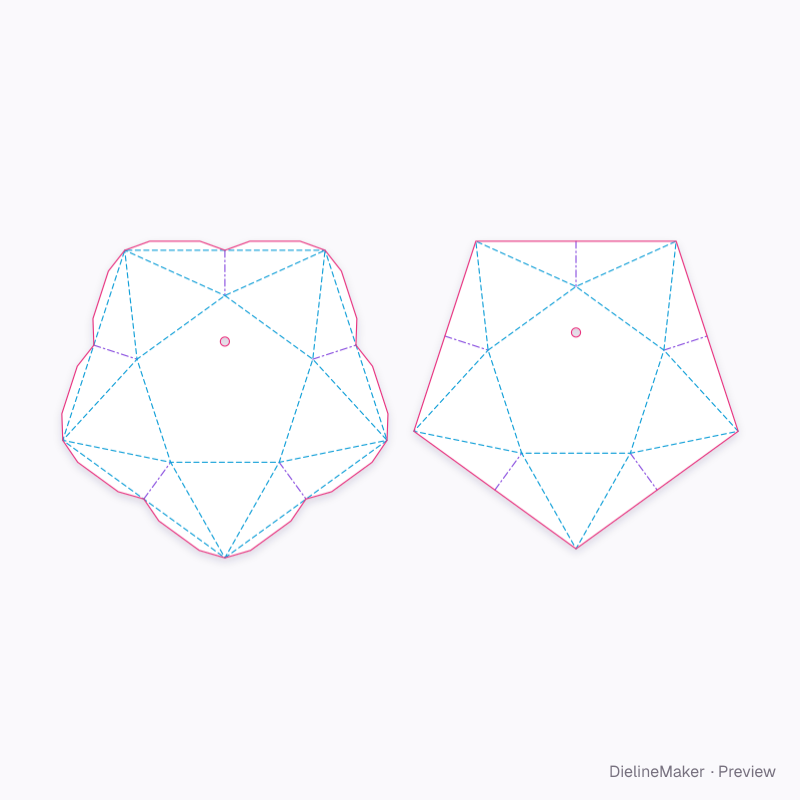

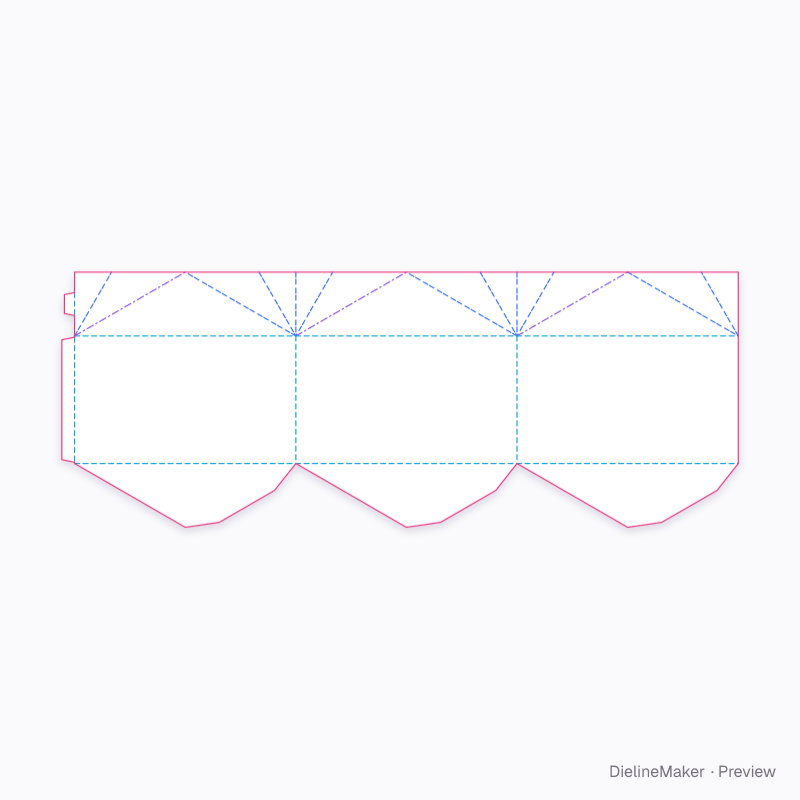

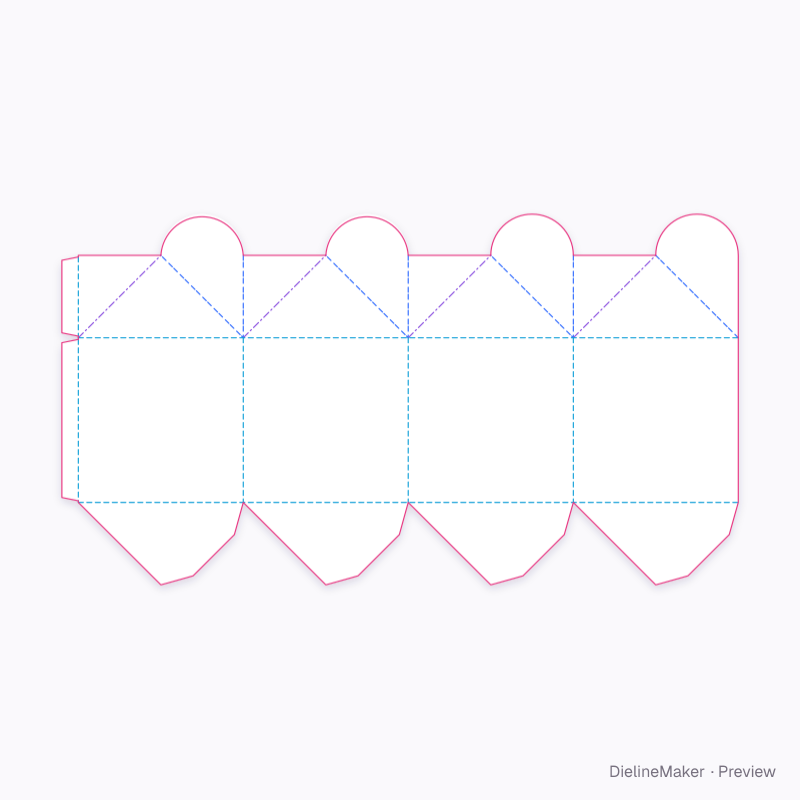

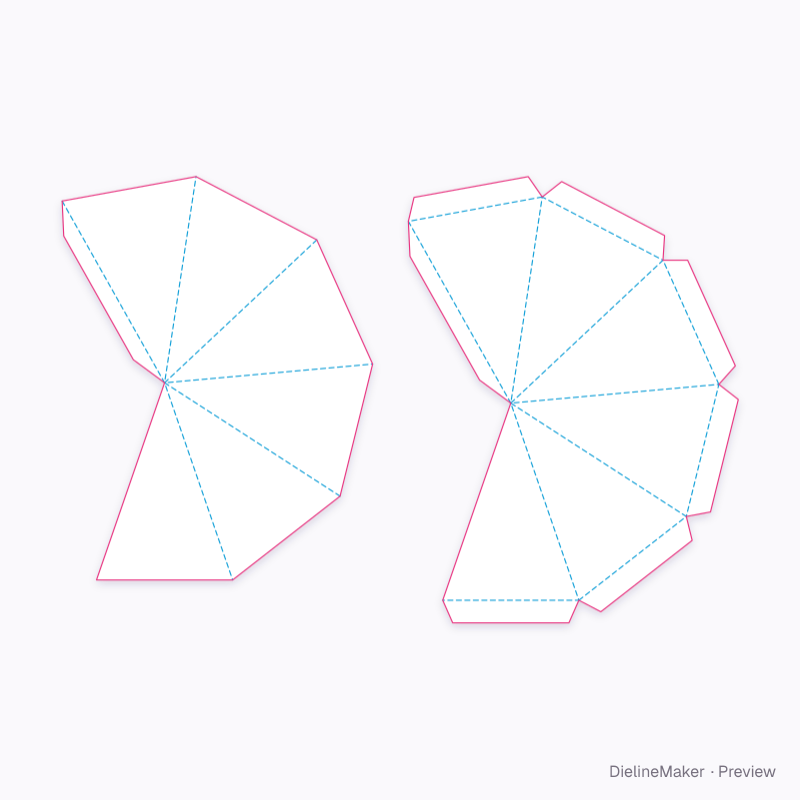

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this hollow dimensional star yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
