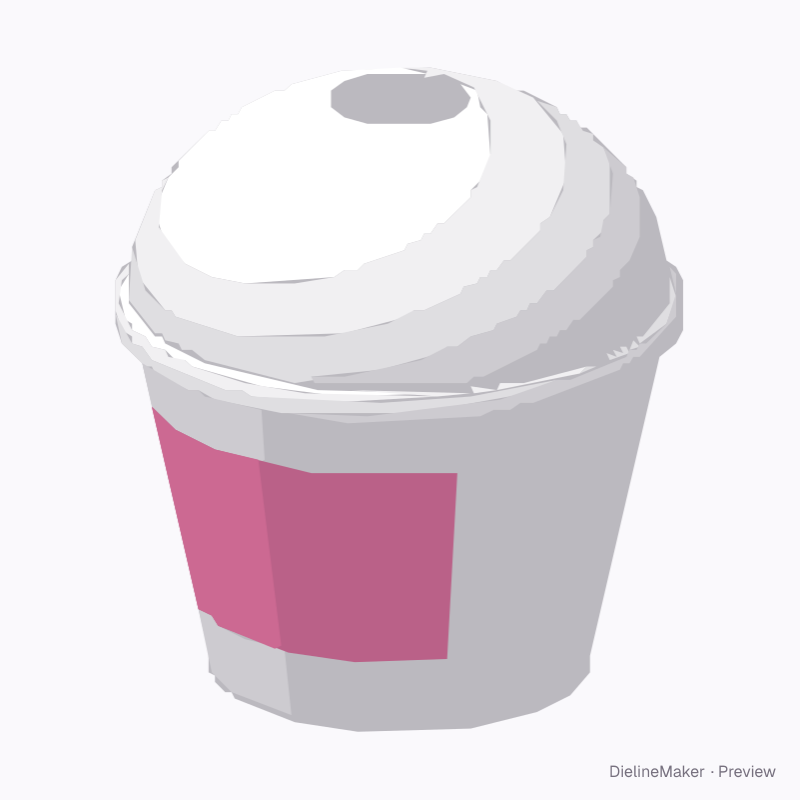

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Small gelato sundae cup 5 oz label template
A clear tapered cup with a hollow dome lid and a real straw or spoon opening. Exported front/back labels are exact conical sectors kept below the rim; PET forming and lid tooling require the supplier’s drawing. Sizes are editable visual starting points, not certified fill capacities. A ready-sized preset of the clear dome-lid dessert cup — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 85 × 60 mm
Artwork area62.3 × 37 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Cup rim diameter 85 · Cup body height 60 mm
- Size range
- Cup rim diameter 65–125 · Cup body height 45–180 mm
- Parts
- 2 parts — Front tapered-cup label, Back tapered-cup label
- Artwork area
- 0.004 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Base diametermm
- Label vertical height (0 = auto)mm
- Back labelon / off
- Dome heightmm
- Dome opening diametermm
- Fit dome on cupon / off
The clear dome-lid dessert cup family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this small gelato sundae cup 5 oz yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
