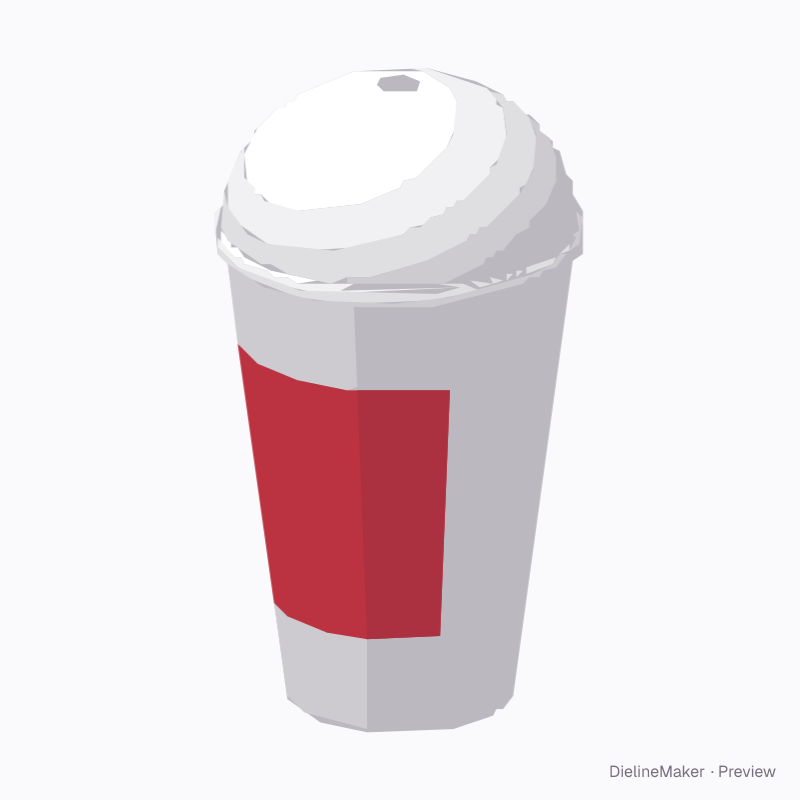

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Smoothie cup 16 oz label template
A clear tapered cup with a hollow dome lid and a real straw or spoon opening. Exported front/back labels are exact conical sectors kept below the rim; PET forming and lid tooling require the supplier’s drawing. Sizes are editable visual starting points, not certified fill capacities. A ready-sized preset of the clear dome-lid dessert cup — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 98 × 136 mm
Artwork area78.6 × 79.9 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Cup rim diameter 98 · Cup body height 136 mm
- Size range
- Cup rim diameter 65–125 · Cup body height 45–180 mm
- Parts
- 2 parts — Front tapered-cup label, Back tapered-cup label
- Artwork area
- 0.011 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 6 options; the template and 3D preview follow each change.
- Base diametermm
- Label vertical height (0 = auto)mm
- Back labelon / off
- Dome heightmm
- Dome opening diametermm
- Fit dome on cupon / off
The clear dome-lid dessert cup family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this smoothie cup 16 oz yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
