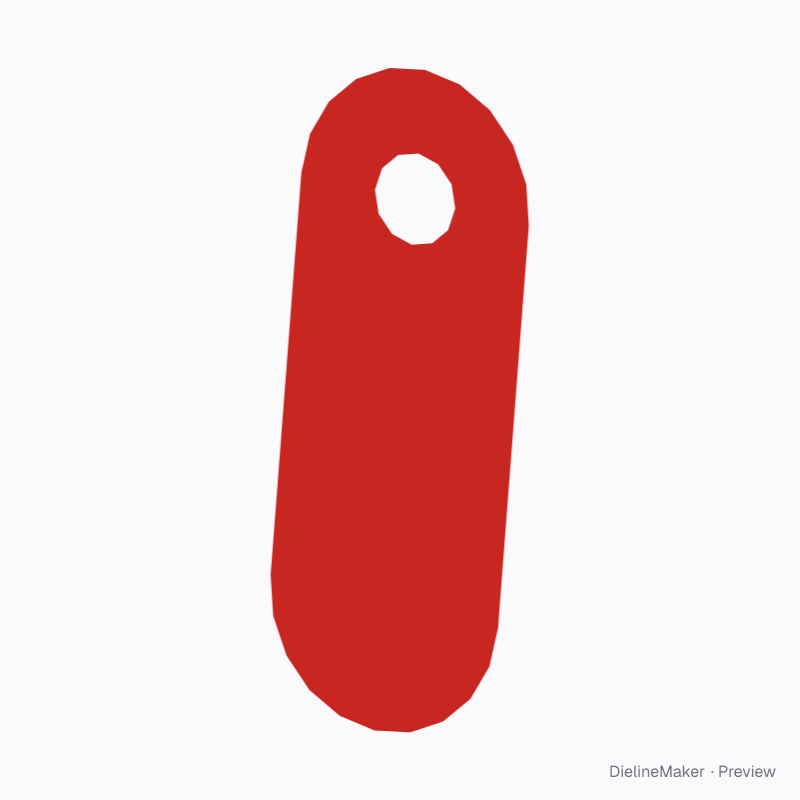

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DOORHANGER-CAPSULE-01Cards & tags
Capsule door hanger dieline
A 90 × 230 mm hanger with fully rounded top and bottom ends and a closed round knob hole. A ready-sized preset of the door hanger — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside90 × 230 mm
Outside90 × 230 mm
Flat blank90 × 230 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DOORHANGER-CAPSULE-01
- Inside size
- Width 90 · Height 230 mm
- Size range
- Width 70–160 · Height 150–400 mm
- Manufacturing
- 90 × 230 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.019 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Knob holemm
- Slit4 options
- Top2 options
- Bottom2 options
- Corner radiusmm
- Tear-off couponon / off
The door hanger family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this capsule door hanger yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
