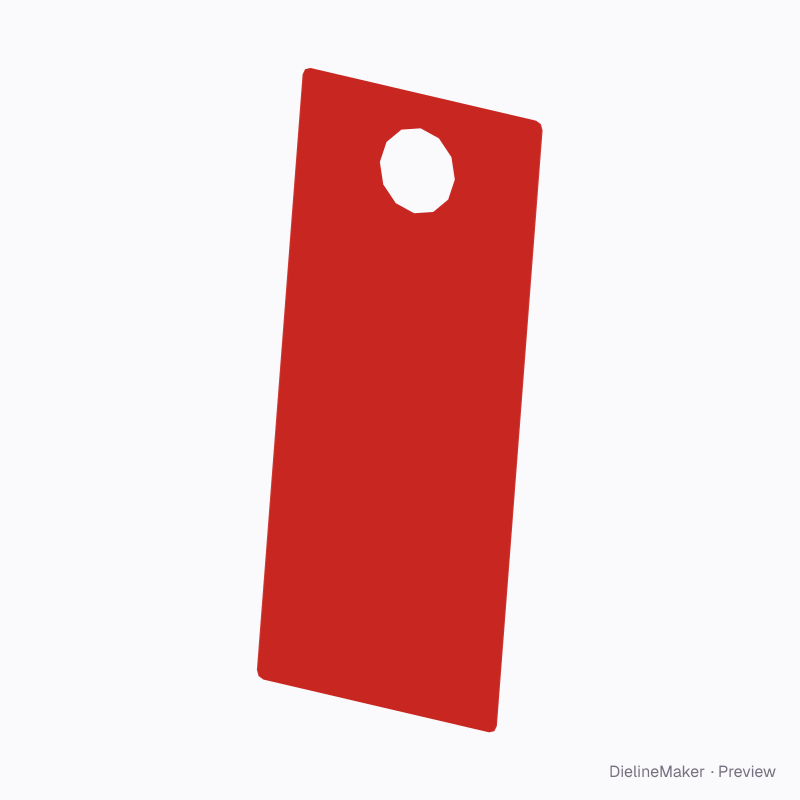

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCards & tags
4 × 9 in door hanger dieline
101.6 × 228.6 mm finished format with editable dimensions and artwork. A ready-sized preset of the door hanger — change its size and the cut outline, bleed and safe area are redrawn to match.
Inside101.6 × 228.6 mm
Outside101.6 × 228.6 mm
Flat blank101.6 × 228.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 101.6 · Height 228.6 mm
- Size range
- Width 70–160 · Height 150–400 mm
- Manufacturing
- 101.6 × 228.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.023 m² · about 27 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350PET 0.3SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 6 options; the template and 3D preview follow each change.
- Knob holemm
- Slit4 options
- Top2 options
- Bottom2 options
- Corner radiusmm
- Tear-off couponon / off
The door hanger family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 4 × 9 in door hanger yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
