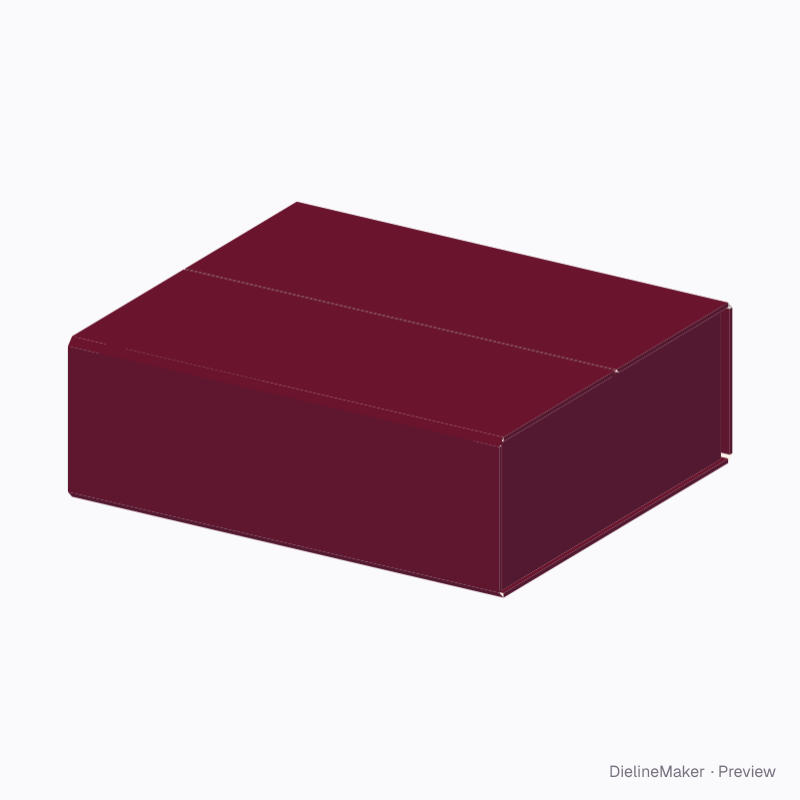

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DOUBLE-DOOR-RIGID-01Rigid
Double-door gift box dieline
Two half covers opening over a gift tray. A ready-sized preset of the double-door rigid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 180 × 70 mm
Outside228.2 × 197.2 × 77.6 mm
Flat blank262.5 × 574.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DOUBLE-DOOR-RIGID-01
- Inside size
- Length 220 · Depth 180 · Height 70 mm
- Size range
- Length 60–500 · Depth 50–400 · Height 20–300 mm
- Manufacturing
- 224 × 187 × 74 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Cover wrap, Tray wrap, Case boards, Tray board
- Board area
- 0.483 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DOUBLE-DOOR-RIGID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseCover wrap | 228.2 × 190.1 | – |
| Back hingeCover wrap | 228.2 × 5 | – |
| Back spineCover wrap | 228.2 × 70.5 | – |
| Back door hingeCover wrap | 228.2 × 5 | – |
| Back doorCover wrap | 228.2 × 94.6 | – |
| Front hingeCover wrap | 228.2 × 5 | – |
| Front spineCover wrap | 228.2 × 70.5 | – |
| Front door hingeCover wrap | 228.2 × 5 | – |
| Front doorCover wrap | 228.2 × 94.6 | – |
| Base left rimCover wrap | 2.2 × 190.1 | – |
| Base left turn-inCover wrap | 15 × 190.1 | – |
| Base right rimCover wrap | 2.2 × 190.1 | – |
| Base right turn-inCover wrap | 15 × 190.1 | – |
| Back spine left rimCover wrap | 2.2 × 70.5 | – |
| Back spine left turn-inCover wrap | 15 × 70.5 | – |
| Back spine right rimCover wrap | 2.2 × 70.5 | – |
42 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Door closure2 options
- Ribbon widthmm
- Door linerson / off
- Insert2 options
- Bottle diametermm
