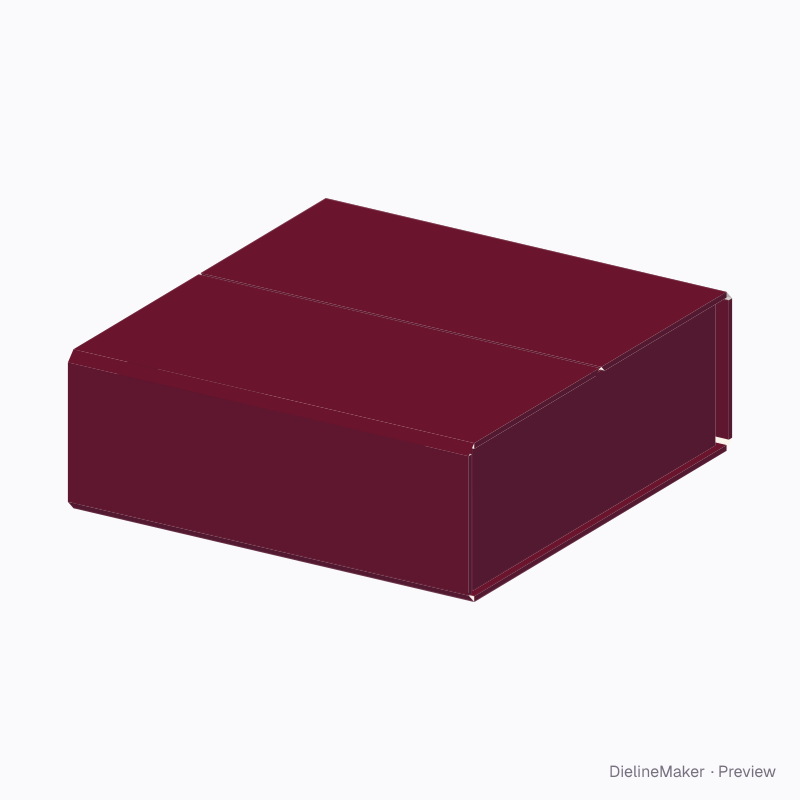

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DOUBLE-DOOR-RIGID-01Rigid
Double-door jewellery box dieline
A rigid presentation box whose two half covers swing open from opposite sides and meet over the middle of a wrapped tray. Stand it on end for a vertical double-door bottle box. A ready-sized preset of the double-door rigid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 120 × 40 mm
Outside127.2 × 133.8 × 46.1 mm
Flat blank160.5 × 385.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DOUBLE-DOOR-RIGID-01
- Inside size
- Length 120 · Depth 120 · Height 40 mm
- Size range
- Length 60–500 · Depth 50–400 · Height 20–300 mm
- Manufacturing
- 123 × 125.3 × 43 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Cover wrap, Tray wrap, Case boards, Tray board
- Board area
- 0.183 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 1.5 mm · 1.5 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for

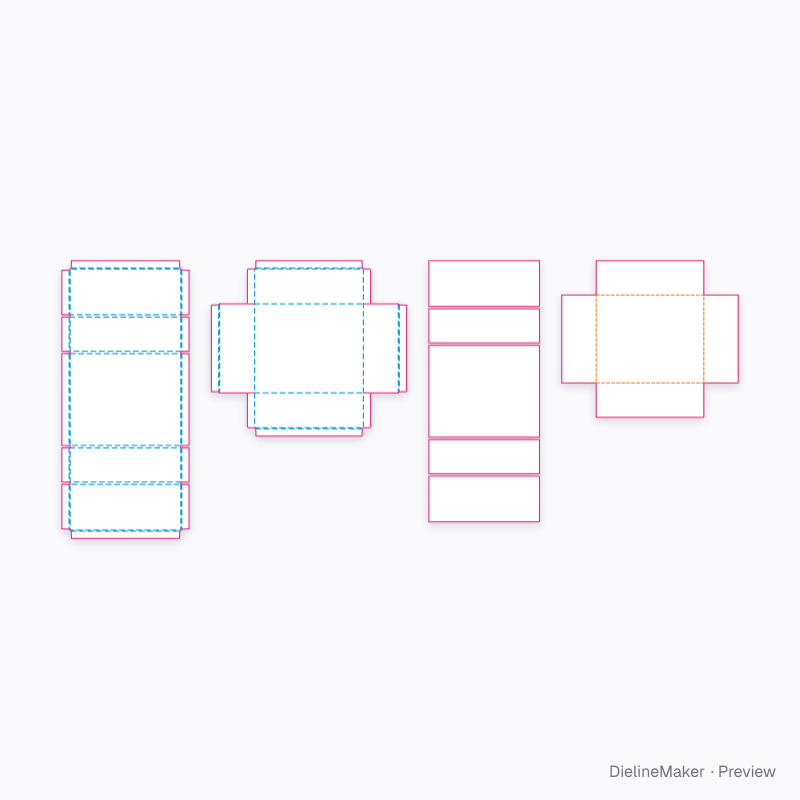

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Kiss cut
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DOUBLE-DOOR-RIGID-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.5 mm for Rigid greyboard 1.5 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseCover wrap | 127.2 × 128.1 | – |
| Back hingeCover wrap | 127.2 × 4 | – |
| Back spineCover wrap | 127.2 × 40.5 | – |
| Back door hingeCover wrap | 127.2 × 4 | – |
| Back doorCover wrap | 127.2 × 63.6 | – |
| Front hingeCover wrap | 127.2 × 4 | – |
| Front spineCover wrap | 127.2 × 40.5 | – |
| Front door hingeCover wrap | 127.2 × 4 | – |
| Front doorCover wrap | 127.2 × 63.6 | – |
| Base left rimCover wrap | 1.7 × 128.1 | – |
| Base left turn-inCover wrap | 15 × 128.1 | – |
| Base right rimCover wrap | 1.7 × 128.1 | – |
| Base right turn-inCover wrap | 15 × 128.1 | – |
| Back spine left rimCover wrap | 1.7 × 40.5 | – |
| Back spine left turn-inCover wrap | 15 × 40.5 | – |
| Back spine right rimCover wrap | 1.7 × 40.5 | – |
42 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Door closure2 options
- Ribbon widthmm
- Door linerson / off
- Insert2 options
- Bottle diametermm

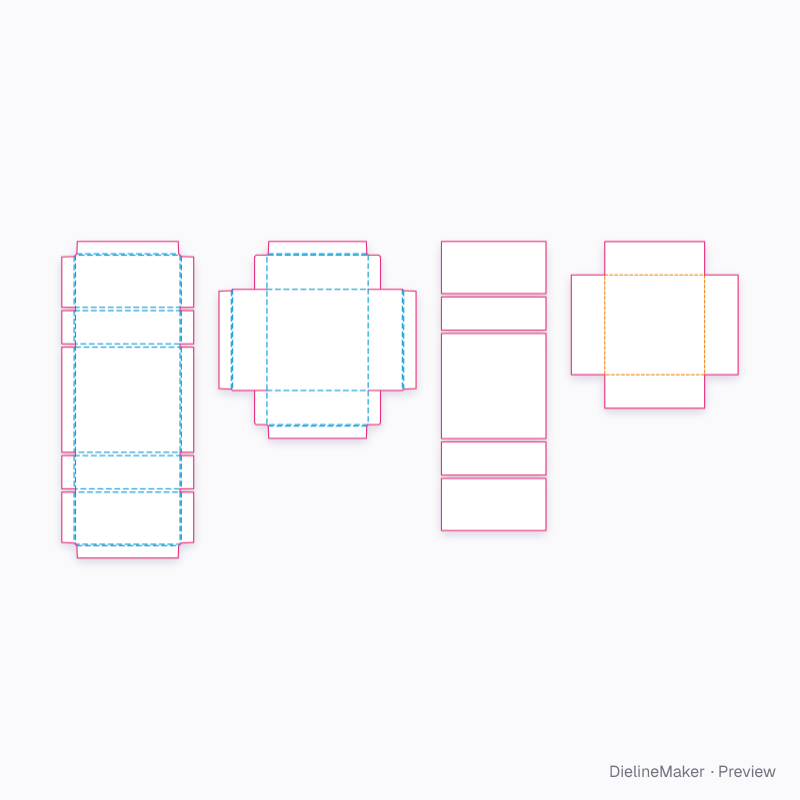

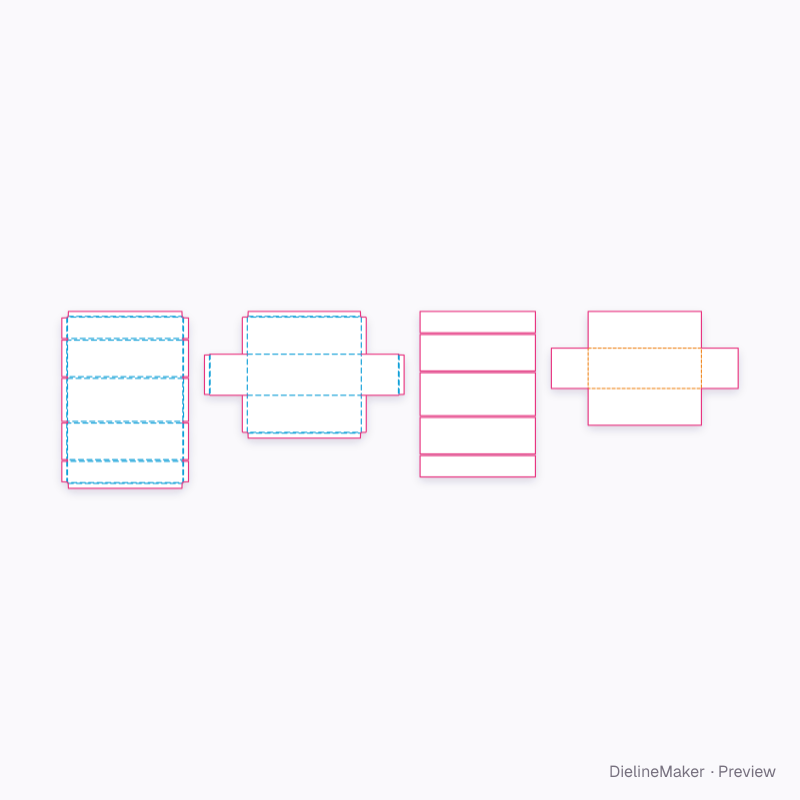

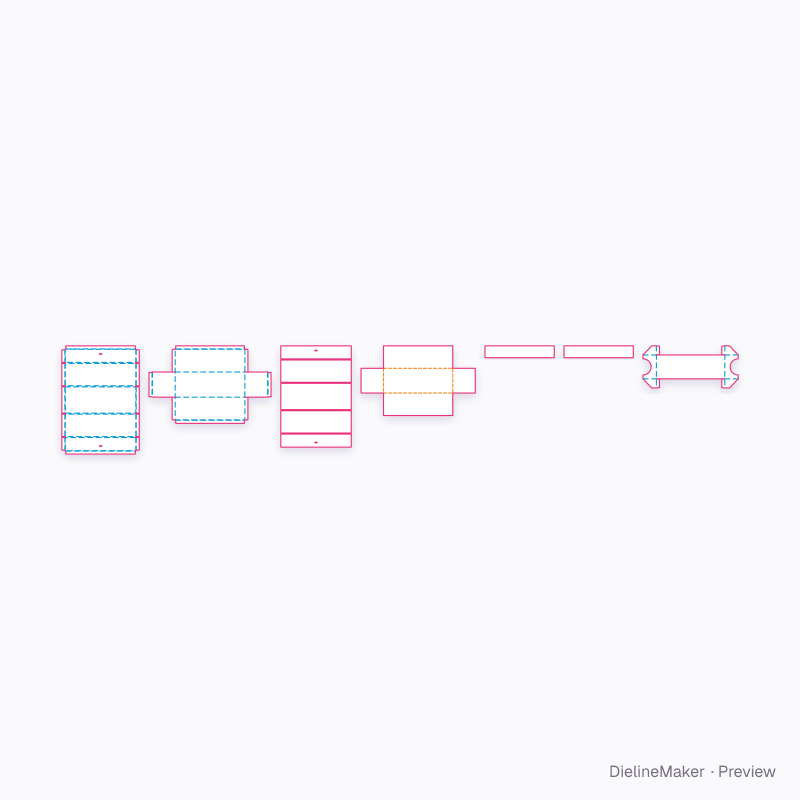

The double-door rigid box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this double-door jewellery box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
