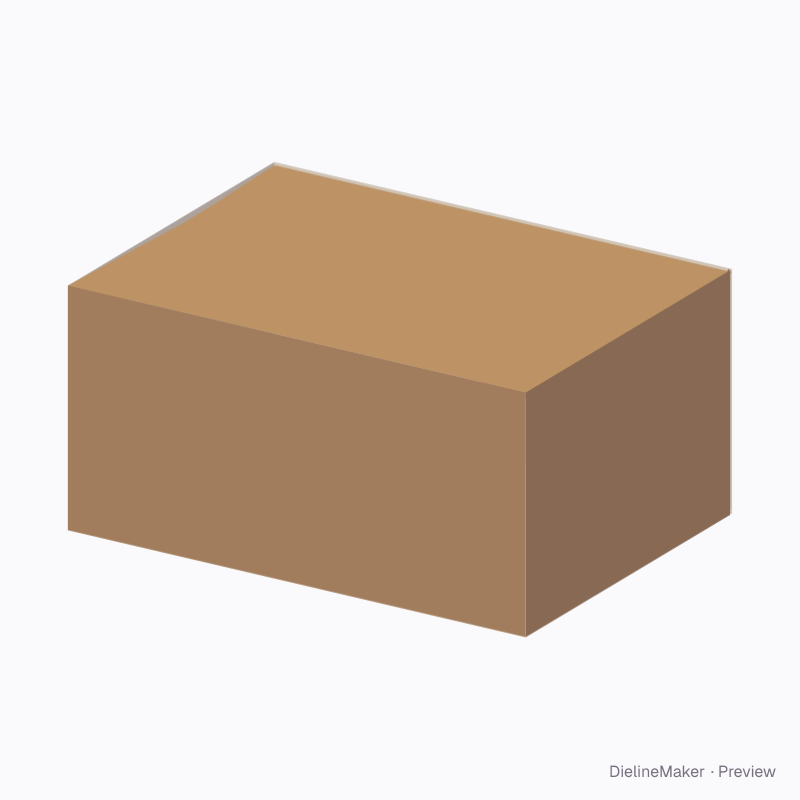

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0220Shipping
Small lock box 250×180×120 dieline
E-flute box for light goods, locked at both ends in seconds. A ready-sized preset of the double lock box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 180 × 120 mm
Outside253.2 × 183.2 × 126.4 mm
Flat blank884.8 × 357.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0220
- Inside size
- Length 250 · Width 180 · Height 120 mm
- Size range
- Length 100–1000 · Width 60–700 · Height 50–1000 mm
- Manufacturing
- 251.6 × 181.6 × 123.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.247 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0220 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 251.6 × 123.2 | L + T × H + 2T |
| Left side | 181.6 × 123.2 | W + T × H + 2T |
| Back | 251.6 × 123.2 | L + T × H + 2T |
| Right side | 180 × 123.2 | W × H + 2T |
| Glue flap | 20 × 123.2 | – × H + 2T |
| Snap end ×2 | 181.6 × 60 | W + T × – |
| Snap end ×2 | 180 × 60 | W × – |
| Snap bottom | 251.6 × 117 | L + T × – |
| Snap tuck ×2 | 251.6 × 115.4 | L + T × – |
| Snap top | 251.6 × 117 | L + T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Tongue widthmm
- Tongue heightmm
- Hand holeson / off
