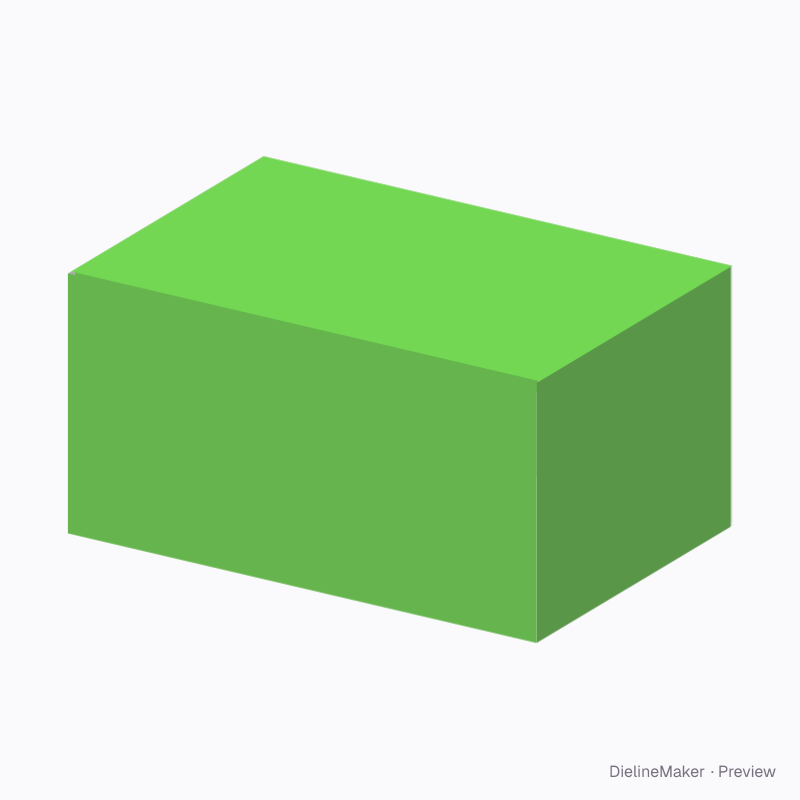

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0215Shipping
Tuck-top lock-bottom box dieline
A glued corrugated tube with a 1-2-3 lock bottom that folds shut by hand and a tuck-in lid on top. No tape, quick to pack and easy to reopen. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 150 mm
Outside303.2 × 203.2 × 156.4 mm
Flat blank1024.8 × 505.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0215
- Inside size
- Length 300 · Width 200 · Height 150 mm
- Size range
- Length 80–800 · Width 50–600 · Height 50–800 mm
- Manufacturing
- 301.6 × 201.6 × 153.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.353 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0215 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 301.6 × 153.2 | L + T × H + 2T |
| Left side | 201.6 × 153.2 | W + T × H + 2T |
| Back | 301.6 × 153.2 | L + T × H + 2T |
| Right side | 200 × 153.2 | W × H + 2T |
| Glue flap | 20 × 153.2 | – × H + 2T |
| Snap end | 201.6 × 66.7 | W + T × – |
| Snap end | 200 × 66.7 | W × – |
| Snap bottom | 301.6 × 130 | L + T × – |
| Snap tuck | 301.6 × 128.4 | L + T × – |
| Top closure | 301.6 × 198.4 | L + T × W − T |
| Top tuck | 298.4 × 24 | L − T × – |
| Top dust flap | 194.2 × 112 | – |
| Top dust flap | 192.6 × 112 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Tuck depthmm
- Thumb notchon / off
- Tongue widthmm
- Tongue heightmm

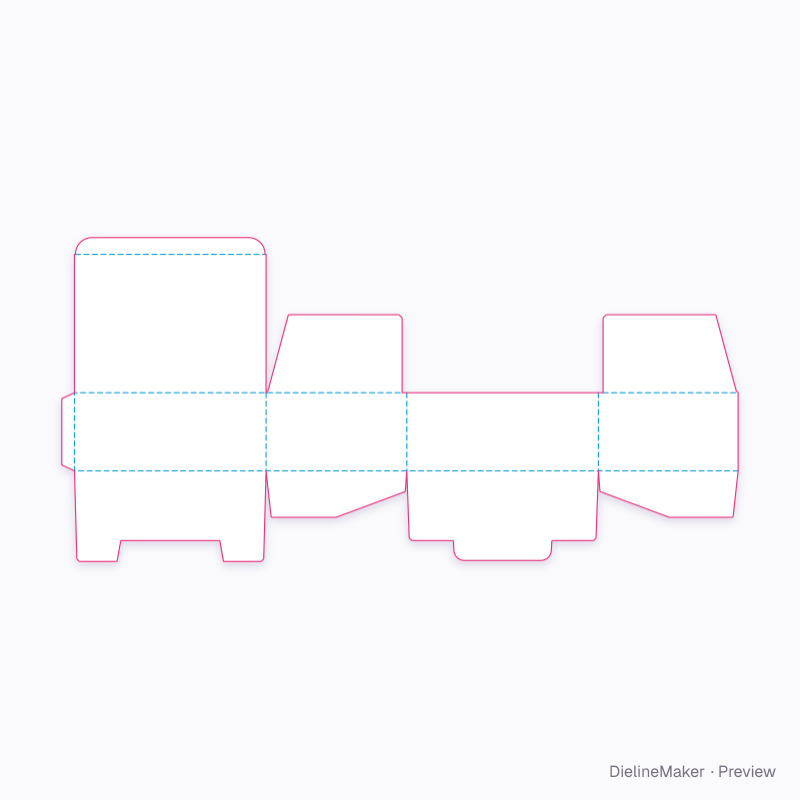

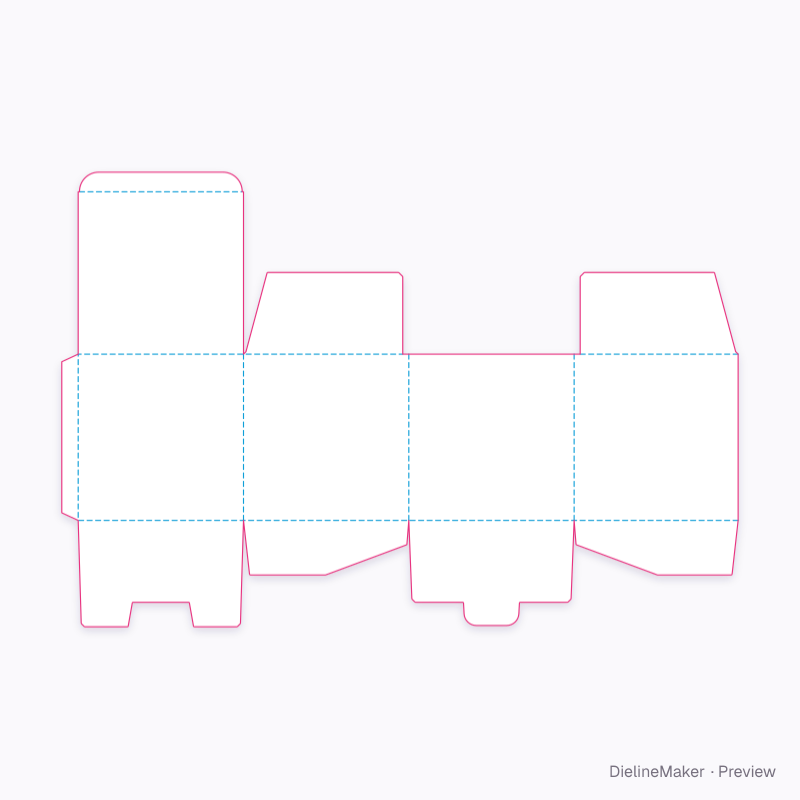

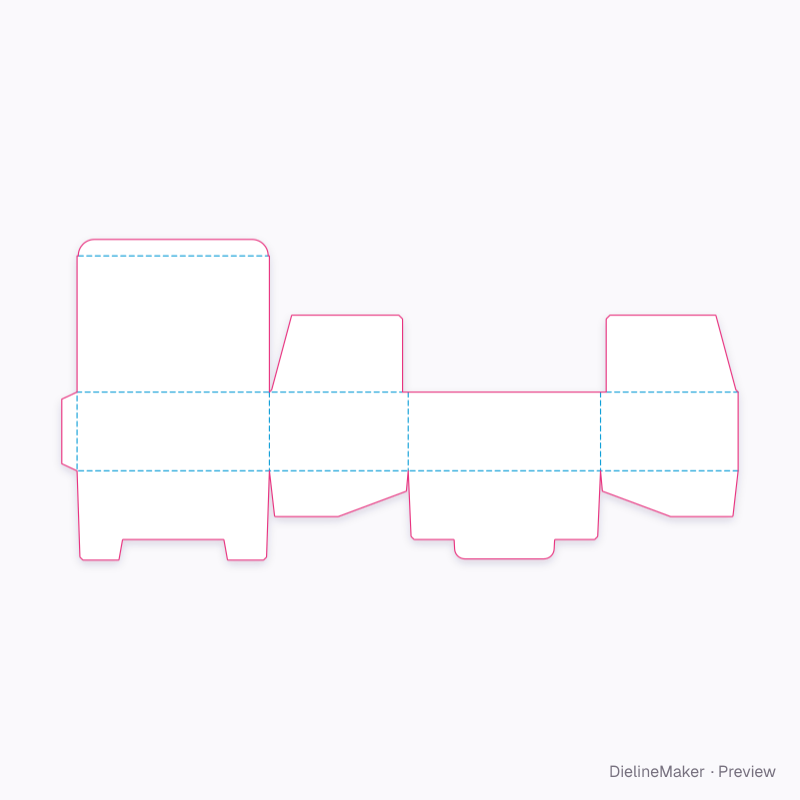

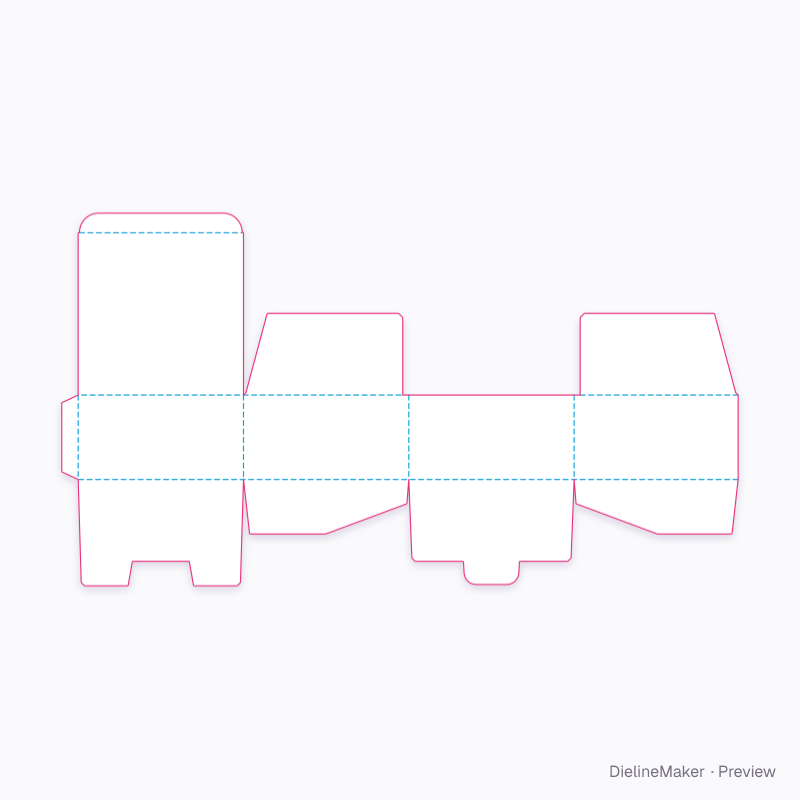

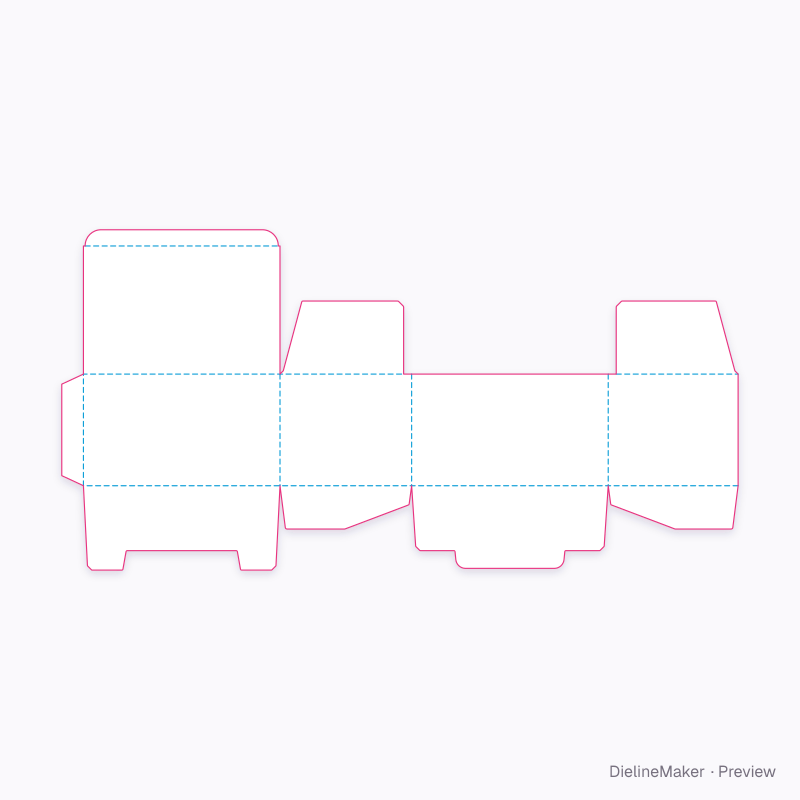

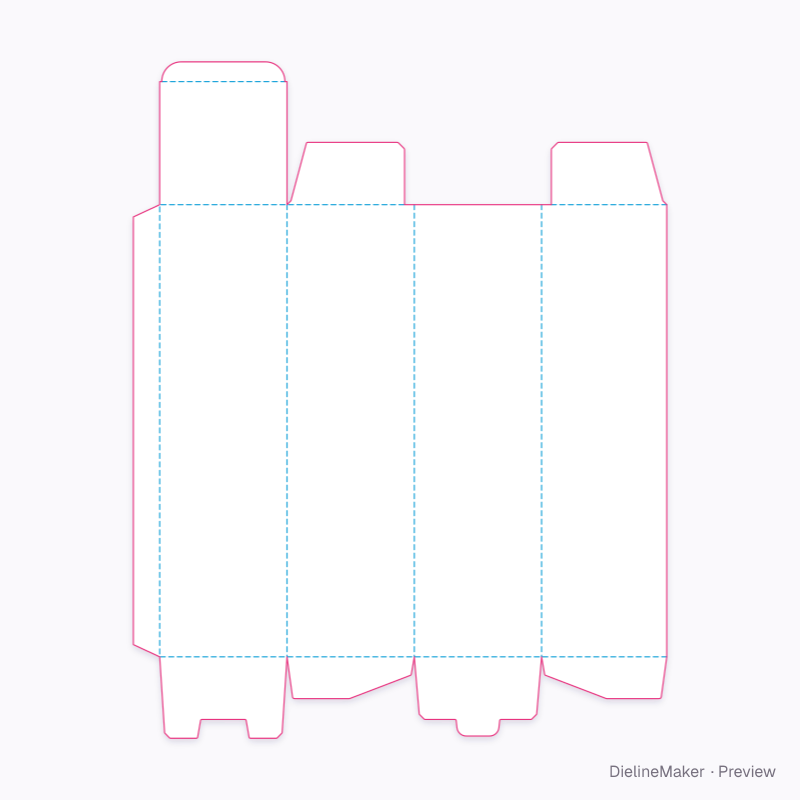

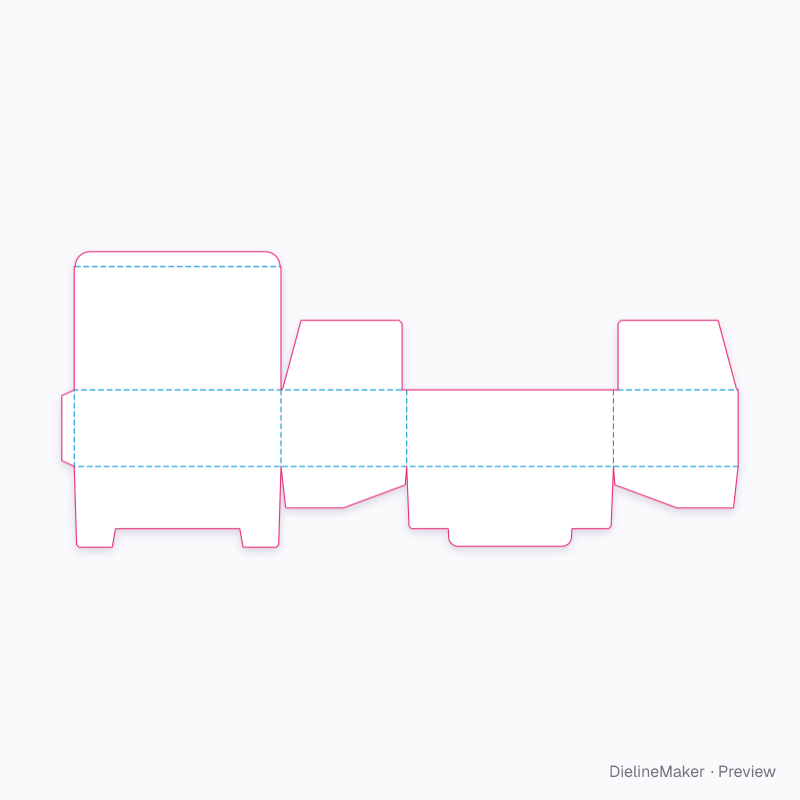

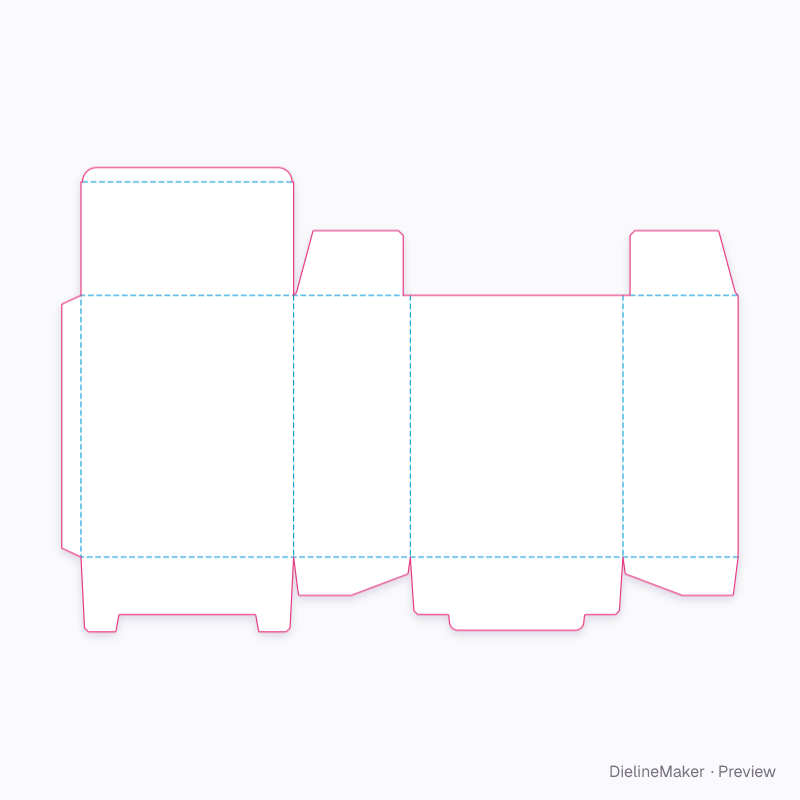

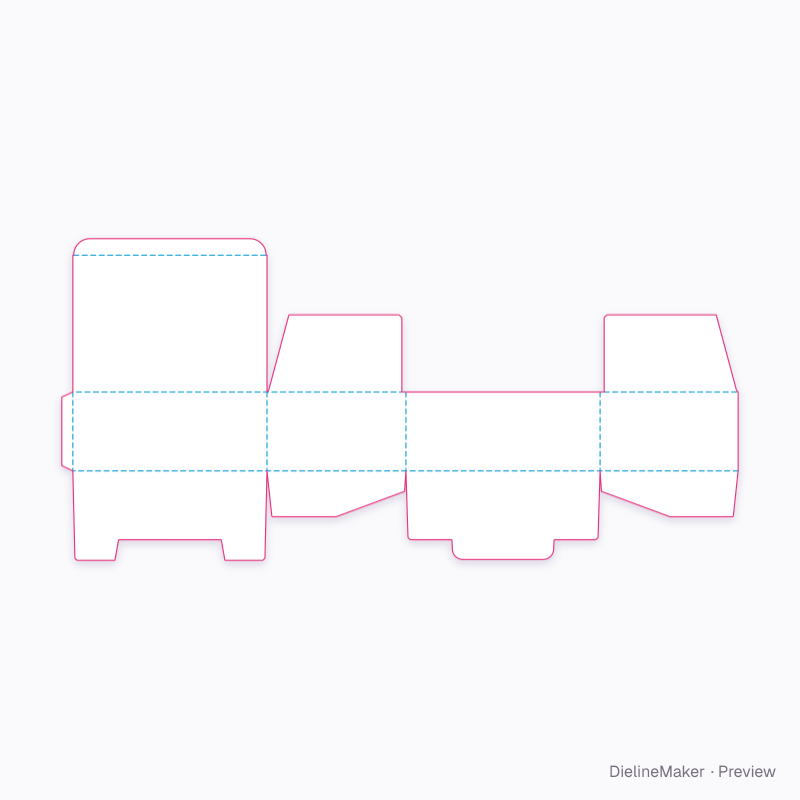

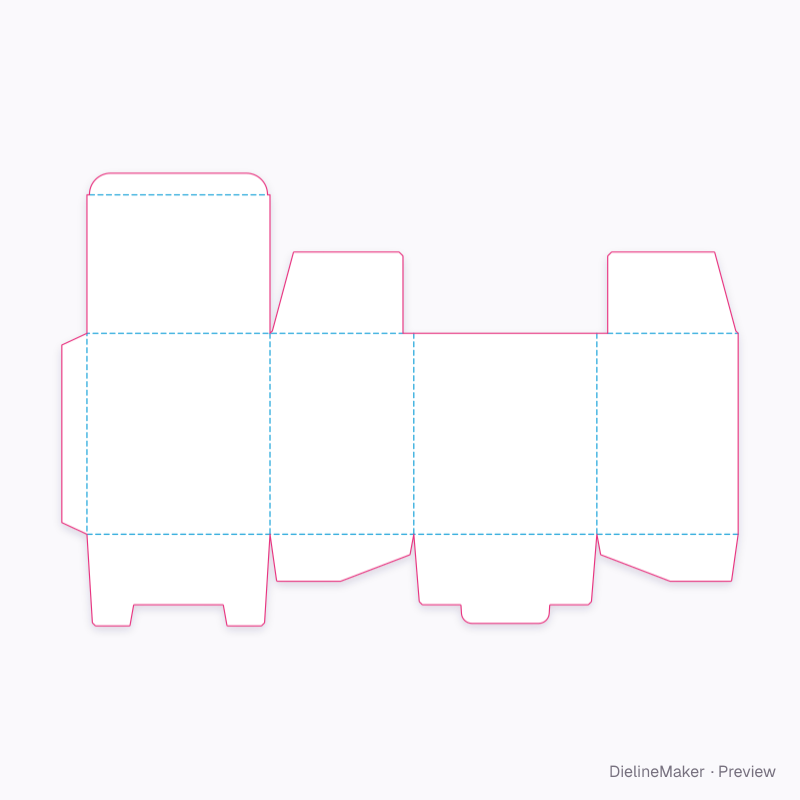

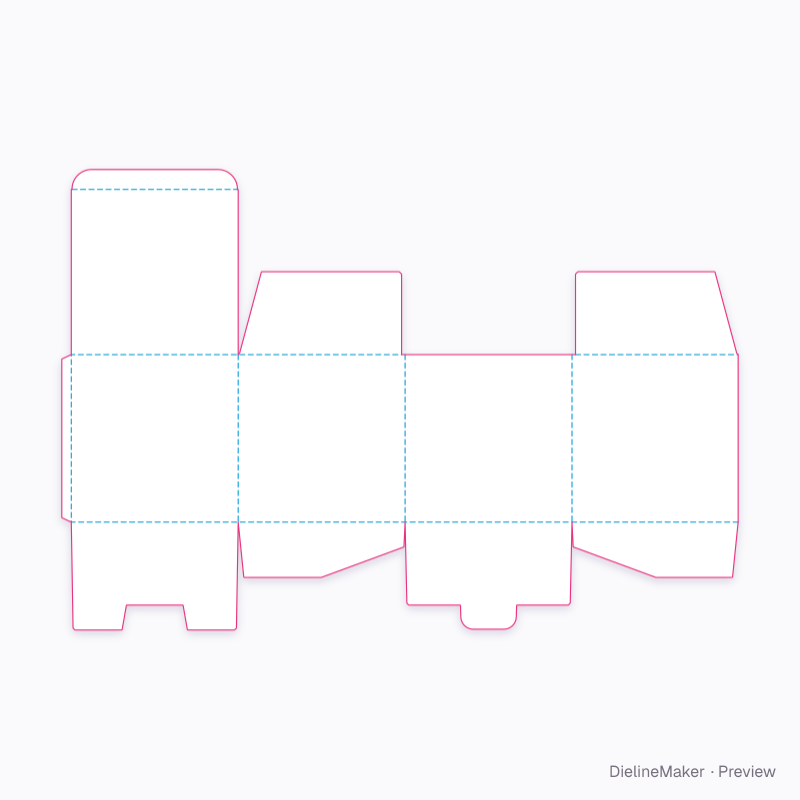

Ready-sized tuck-top lock-bottom box presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

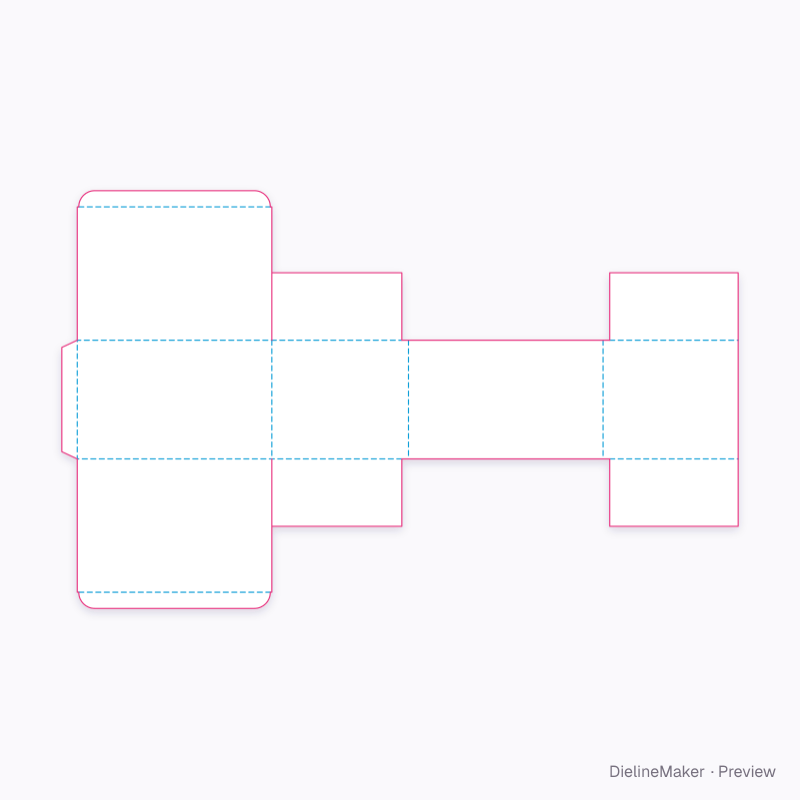

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tuck-top lock-bottom box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
