DM-DOUBLE-WALL-TUBE-01Sleeves
Rolled-edge double-wall tube dieline
A sleeve or tube whose walls are two plies thick from one blank: the blank wraps round twice, or every wall rolls over a full-height return. Optional matching window through both plies. A ready-sized preset of the double-wall folding tube — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside90 × 90 × 200 mm
Outside90.9 × 90.9 × 200.9 mm
Flat blank372 × 401.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DOUBLE-WALL-TUBE-01
- Inside size
- Width 90 · Depth 90 · Length 200 mm
- Size range
- Width 30–600 · Depth 10–400 · Length 30–800 mm
- Manufacturing
- 90.5 × 90.5 × 200.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.146 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350E-flute WSBS 18 pt
- Good for

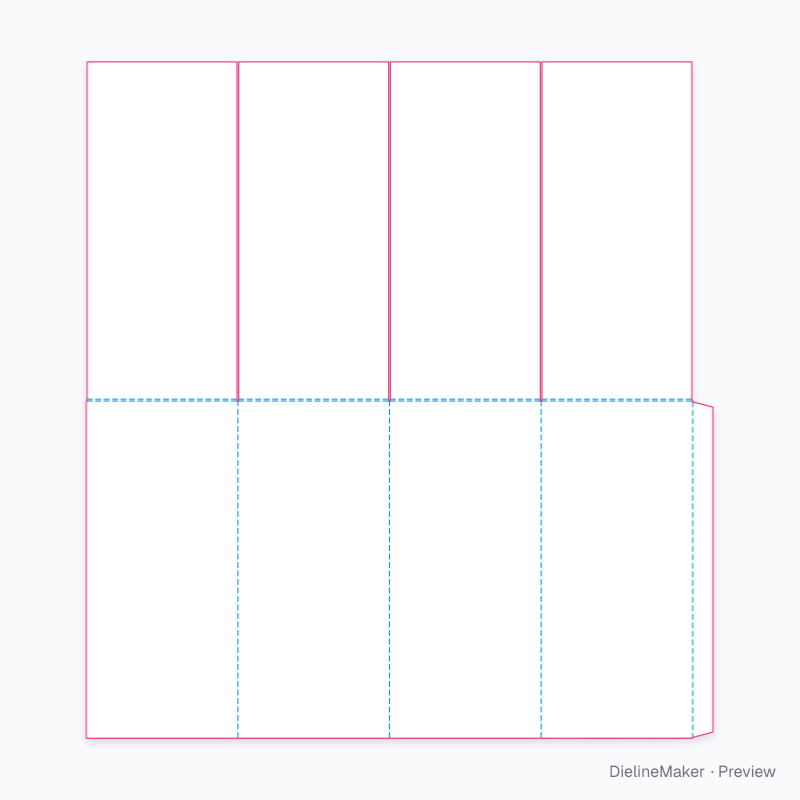

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DOUBLE-WALL-TUBE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 90 × 200 | – × H |
| Right side | 90 × 200 | – × H |
| Front wall roll | 89.1 × 1.1 | – |
| Back | 90 × 200 | – × H |
| Right wall roll | 89.1 × 1.1 | – |
| Front wall inner ply | 89.1 × 200 | – × H |
| Left side | 90 × 200 | – × H |
| Back wall roll | 89.1 × 1.1 | – |
| Right wall inner ply | 89.1 × 200 | – × H |
| Glue flap | 12 × 199 | – |
| Left wall roll | 89.1 × 1.1 | – |
| Back wall inner ply | 89.1 × 200 | – × H |
| Left wall inner ply | 89.1 × 200 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction2 options
- Windowon / off
- Ends2 options

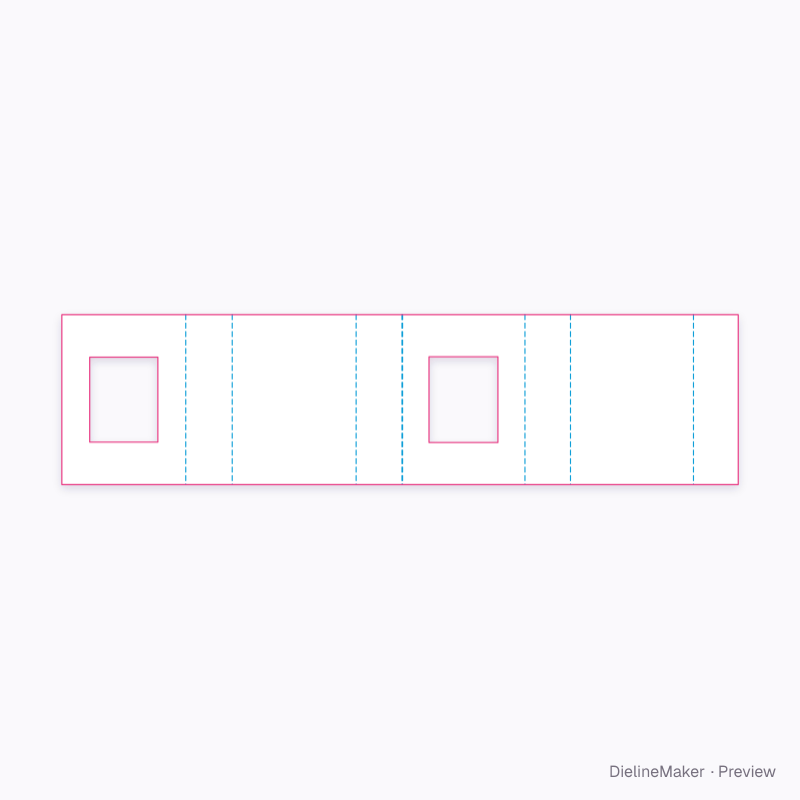

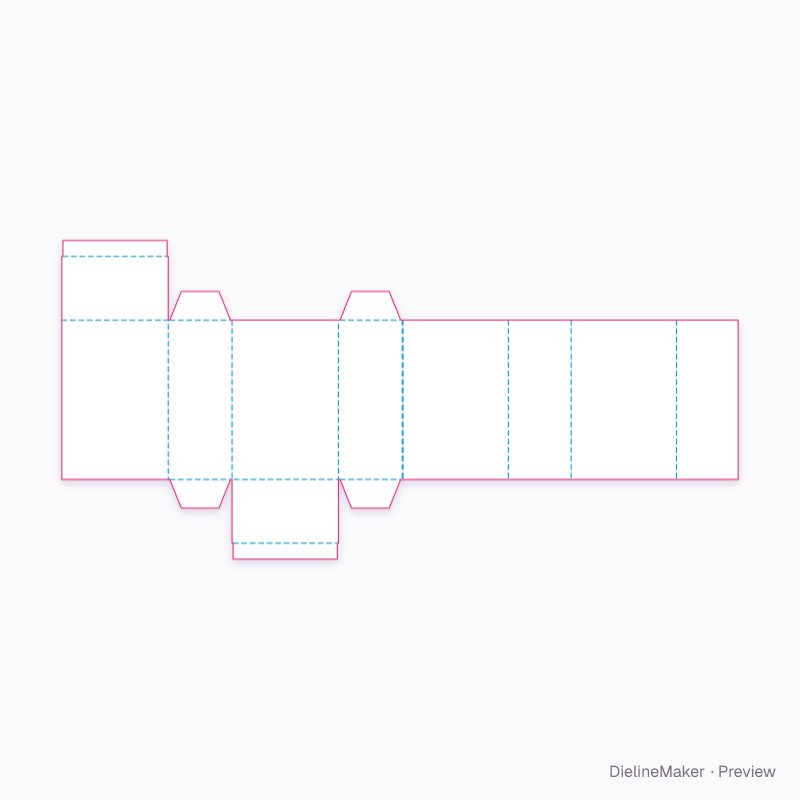

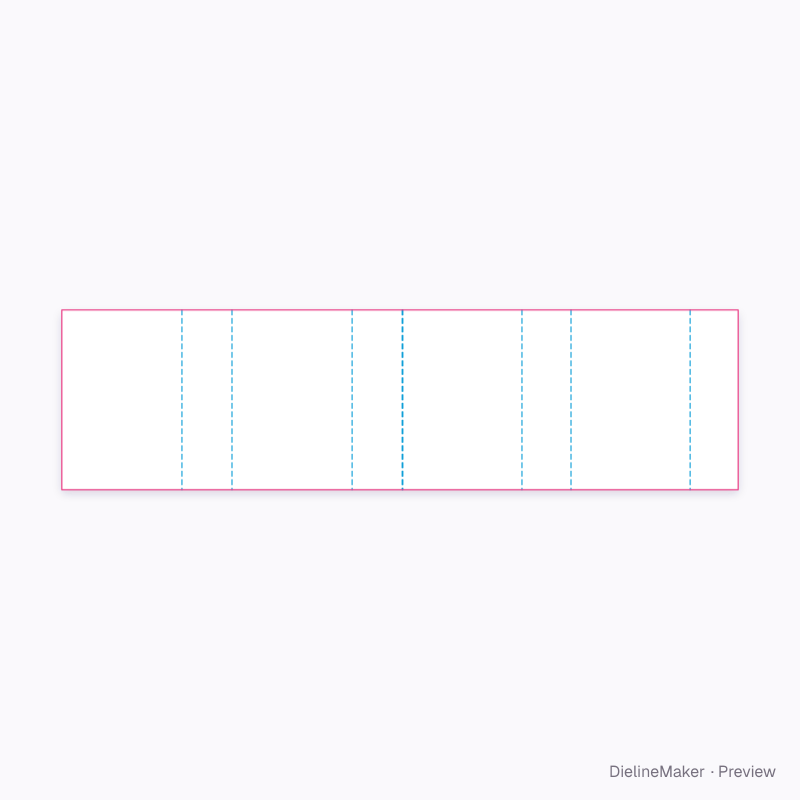

The double-wall folding tube family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this rolled-edge double-wall tube yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
