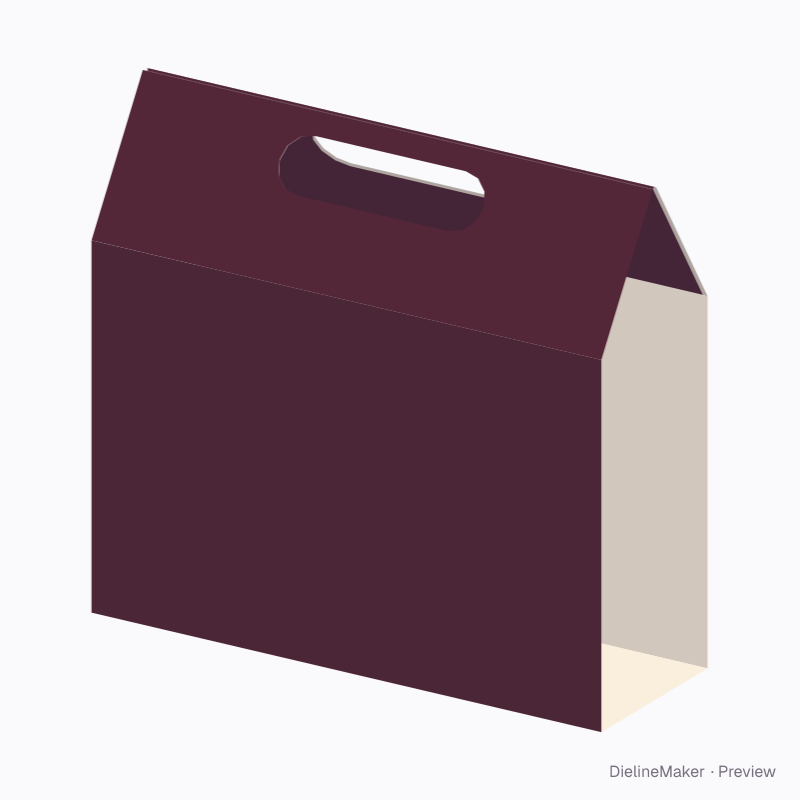

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-HANDLED-CARRY-WRAP-01Sleeves
Handled carry wrap / document wallet dieline
A carry wrap or wallet from one blank: front and back walls rise into doubled handle extensions with matching hand holes that meet above the contents. Open ends or glued side gussets. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside240 × 80 × 160 mm
Outside240.9 × 80.9 × 160.9 mm
Flat blank240 × 683.7 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-HANDLED-CARRY-WRAP-01
- Inside size
- Length 240 · Depth 80 · Height 160 mm
- Size range
- Length 60–600 · Depth 5–300 · Height 30–600 mm
- Manufacturing
- 240.5 × 80.5 × 160.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.164 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350FBB 400GD2 350E-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-HANDLED-CARRY-WRAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 240 × 80 | L × W |
| Front | 240 × 160 | L × H |
| Back | 240 × 160 | L × H |
| Handle ×2 | 240 × 71.4 | L × – |
| Handle roll ×2 | 238 × 1.1 | – |
| Handle inner ply ×2 | 238 × 69.4 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Ends2 options
- Handle heightmm
- Hand hole widthmm
- Hand hole heightmm

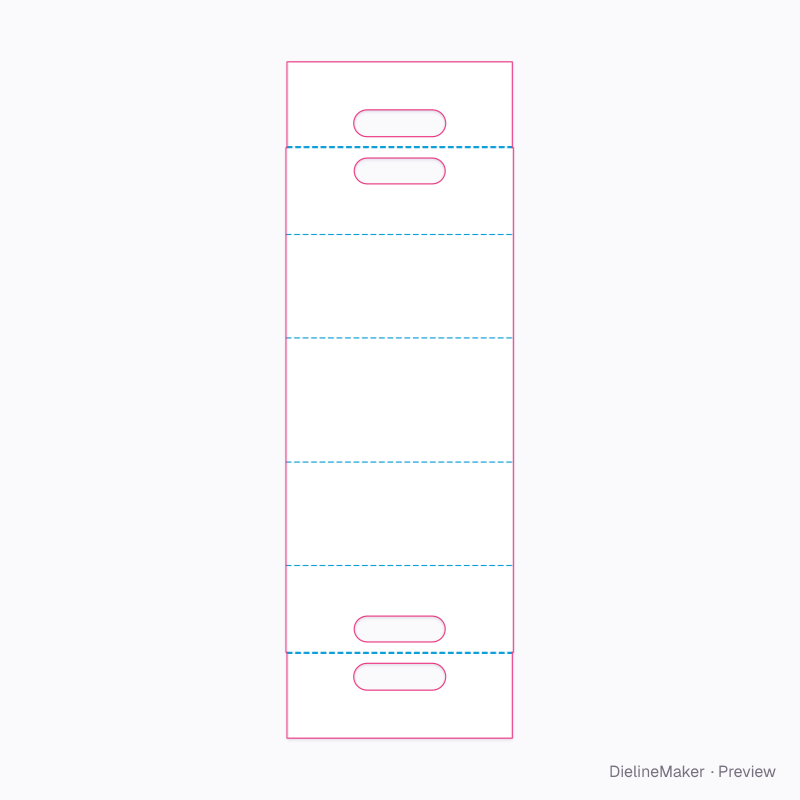

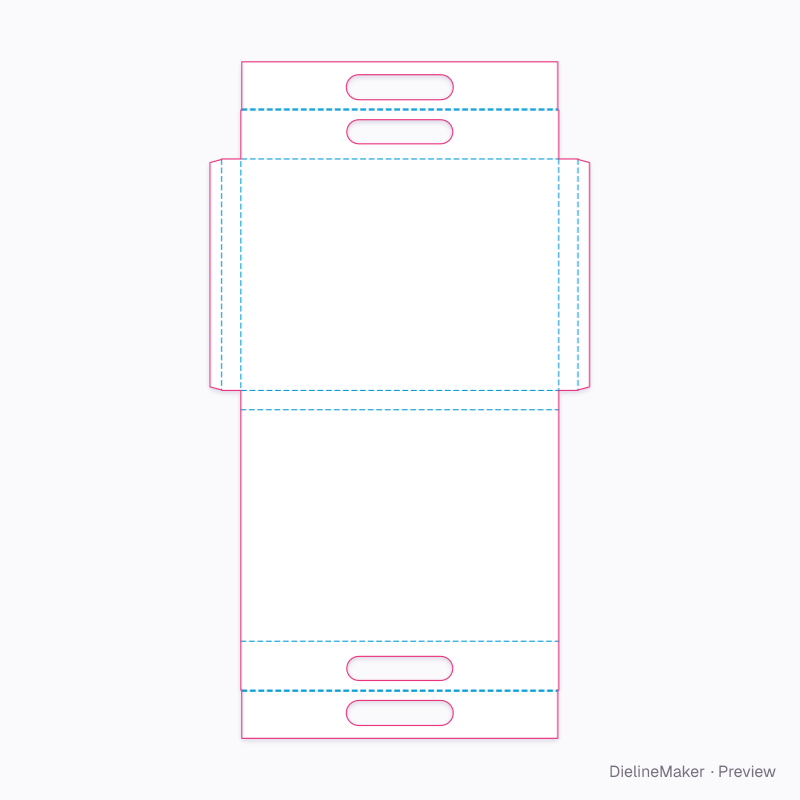

Ready-sized handled carry wrap / document wallet presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this handled carry wrap / document wallet yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
