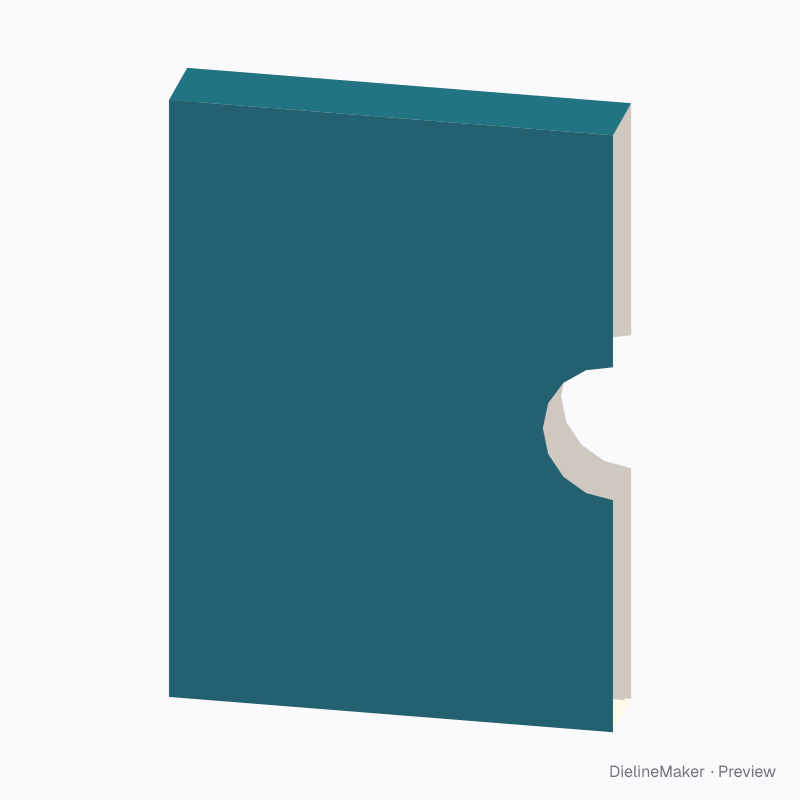

Preview image

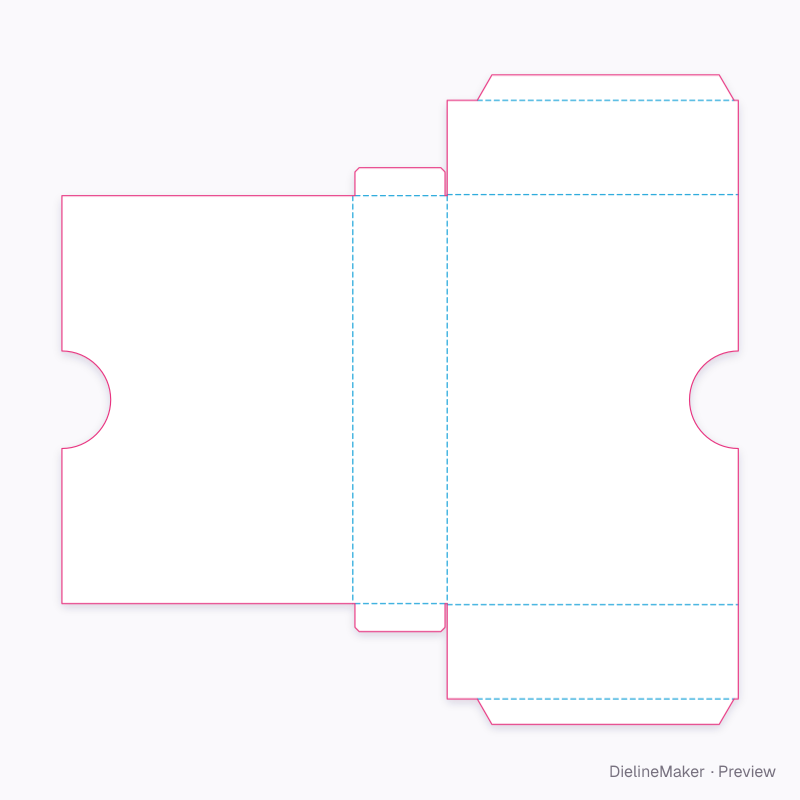

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureSleeves
Slipcase dieline
A five-sided sleeve open along one edge: the spine, top and bottom are closed, with thumb cuts at the opening. For book, record and DVD box sets. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside158 × 30 × 224 mm
Outside158.5 × 31 × 225 mm
Flat blank347 × 309.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 158 · Width 30 · Height 224 mm
- Size range
- Length 60–400 · Width 8–200 · Height 60–450 mm
- Manufacturing
- 158.3 × 30.5 × 224.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.089 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Black 350Kraft 350GD2 350F-fluteE-flute WSBS 18 pt
- Good for

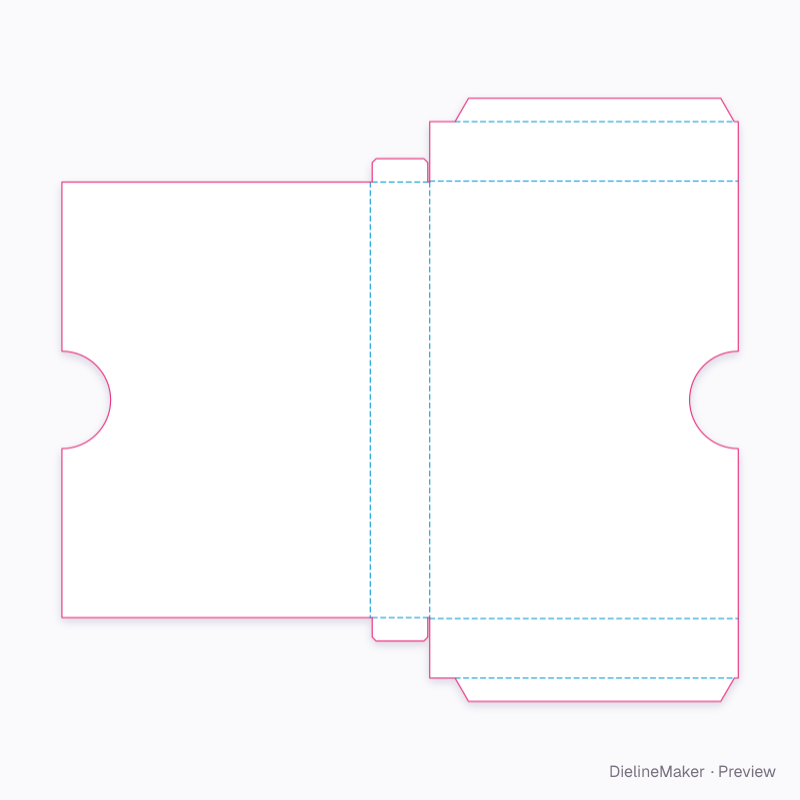

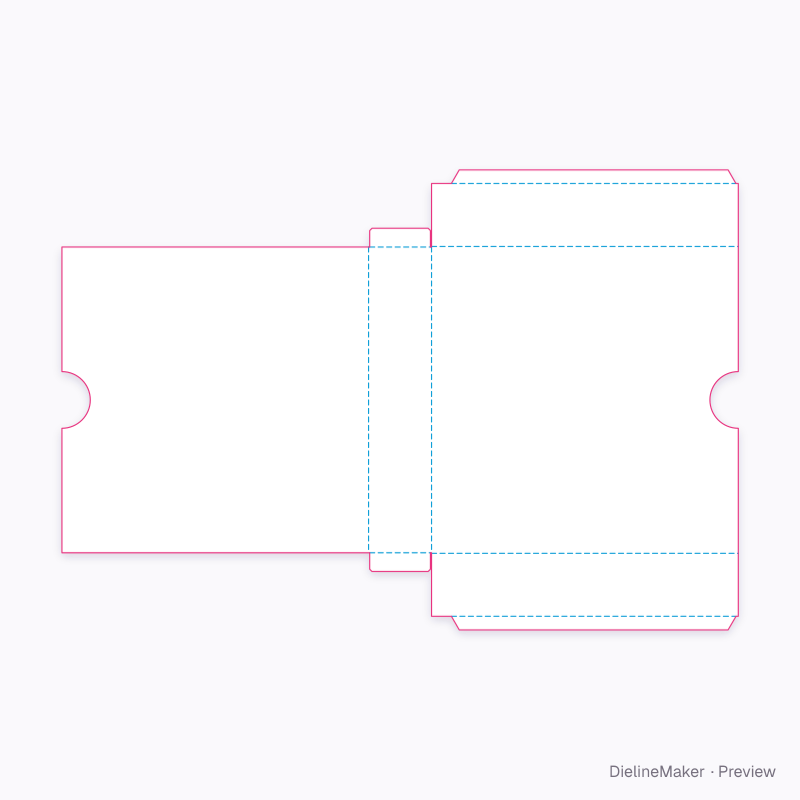

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 158.3 × 224.5 | L + T/2 × H + T |
| Spine | 30.5 × 223.5 | W + T × H − T |
| Back | 158.3 × 223.5 | L + T/2 × H − T |
| Top | 158.3 × 30.5 | L + T/2 × W + T |
| Glue tab ×2 | 143.3 × 12 | – |
| Spine ear ×2 | 28.5 × 12 | – |
| Bottom | 158.3 × 30.5 | L + T/2 × W + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Thumb cutson / off
- Thumb cut radiusmm

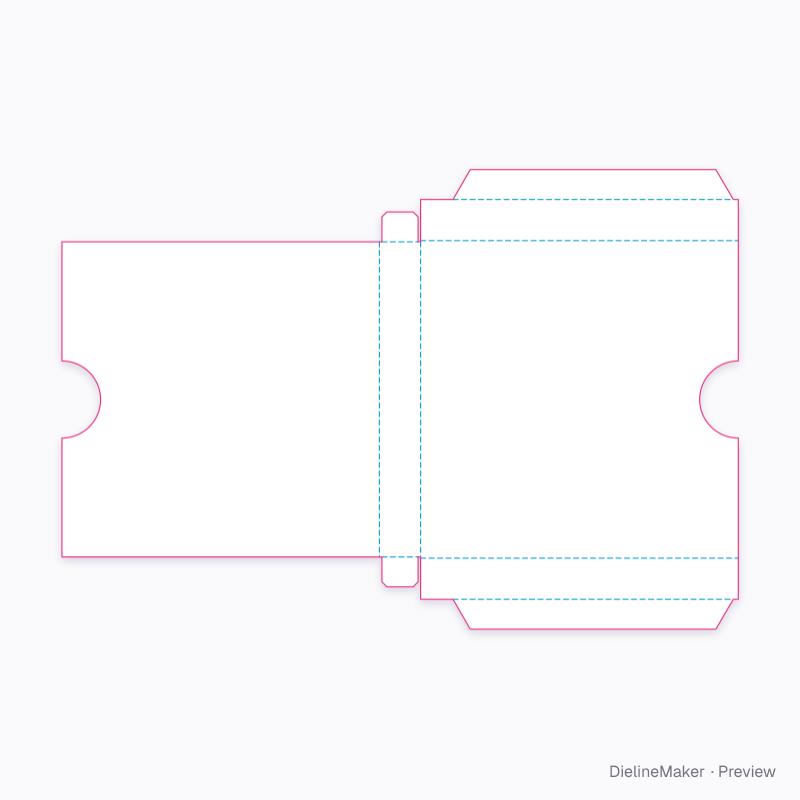

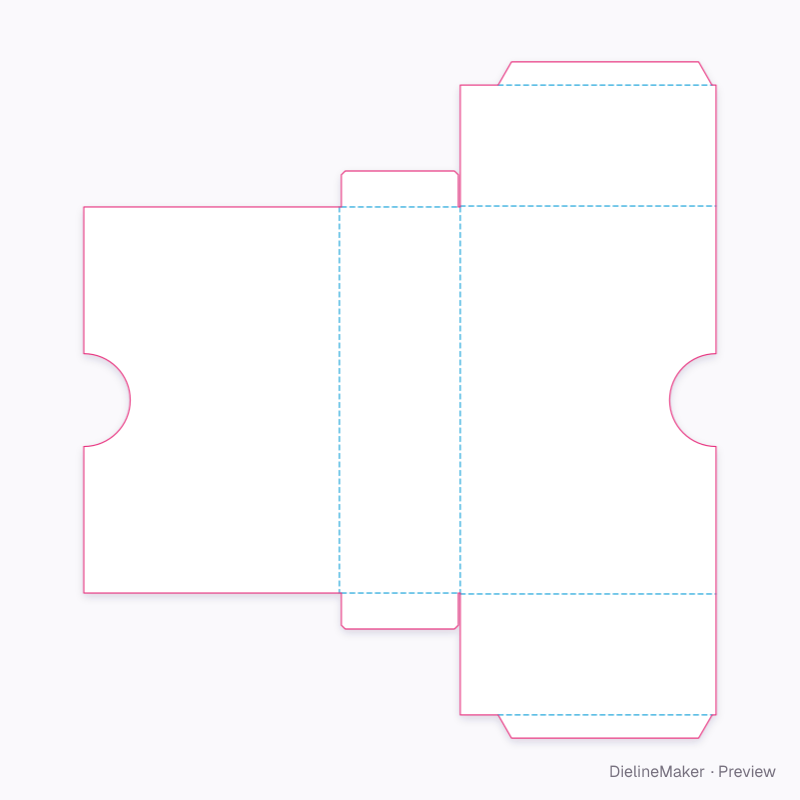

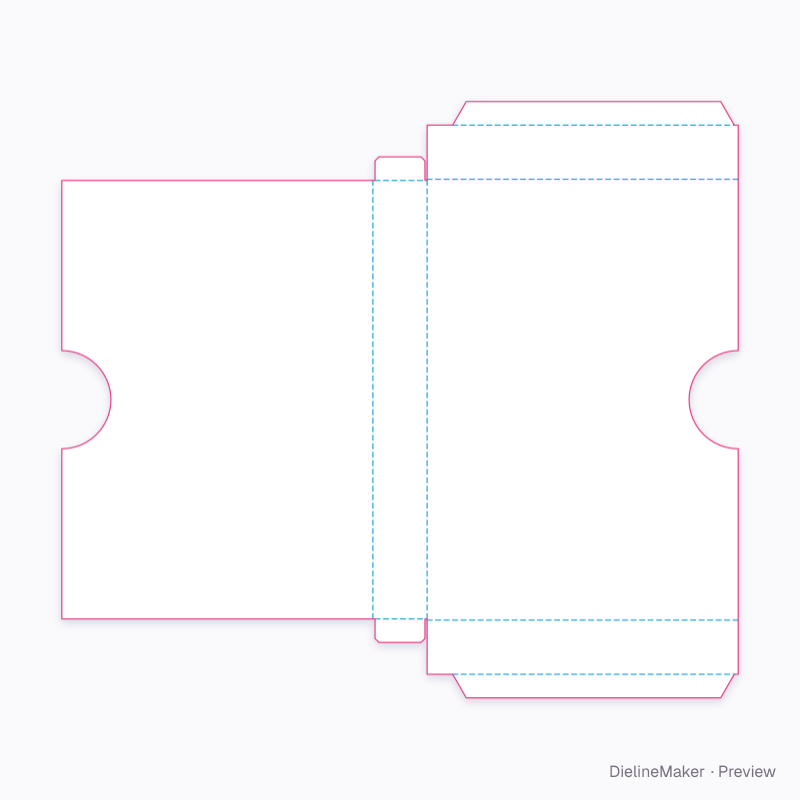

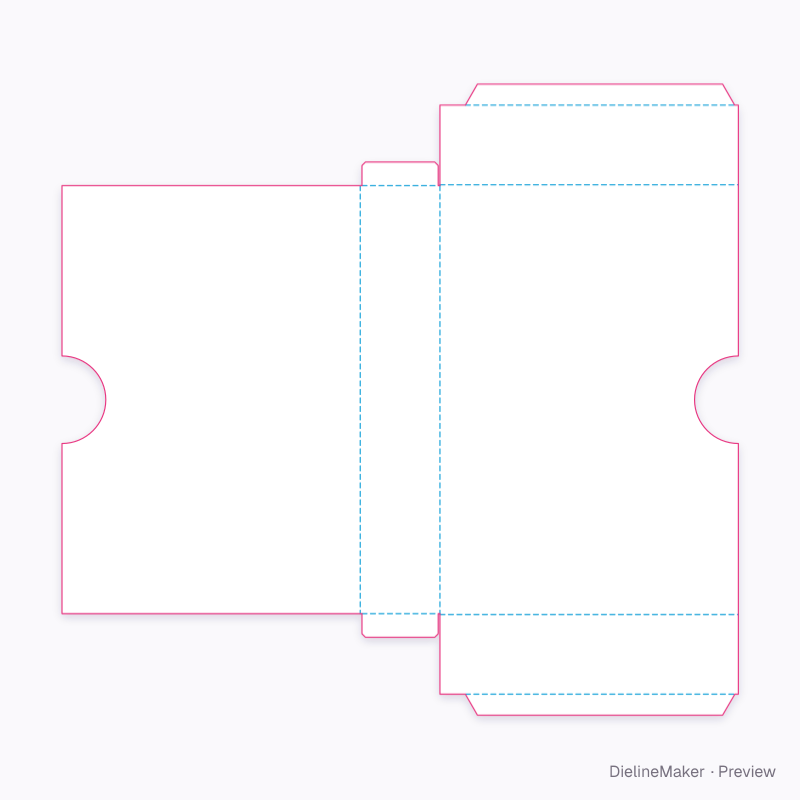

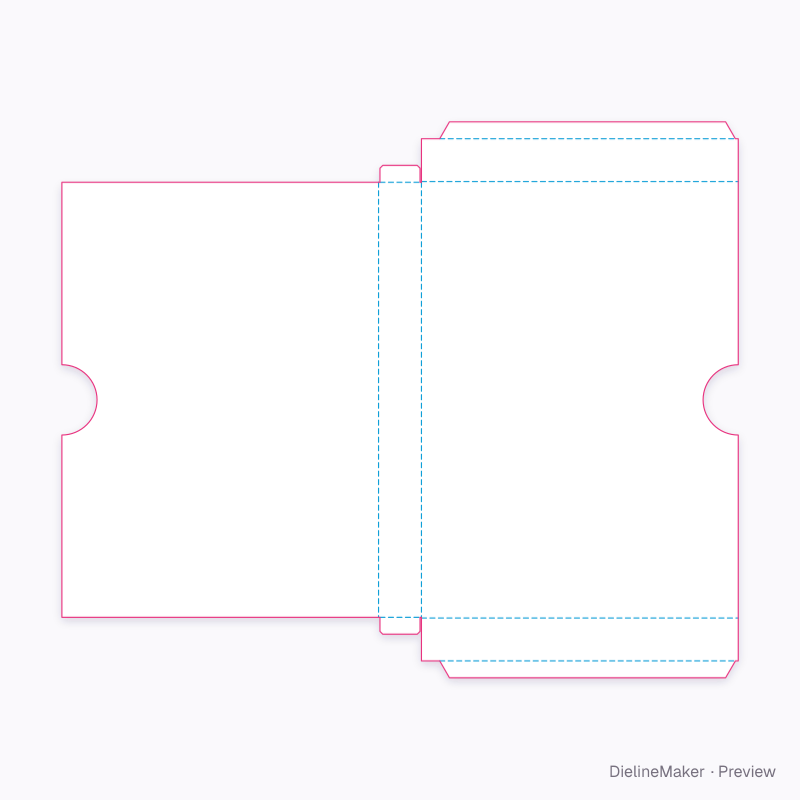

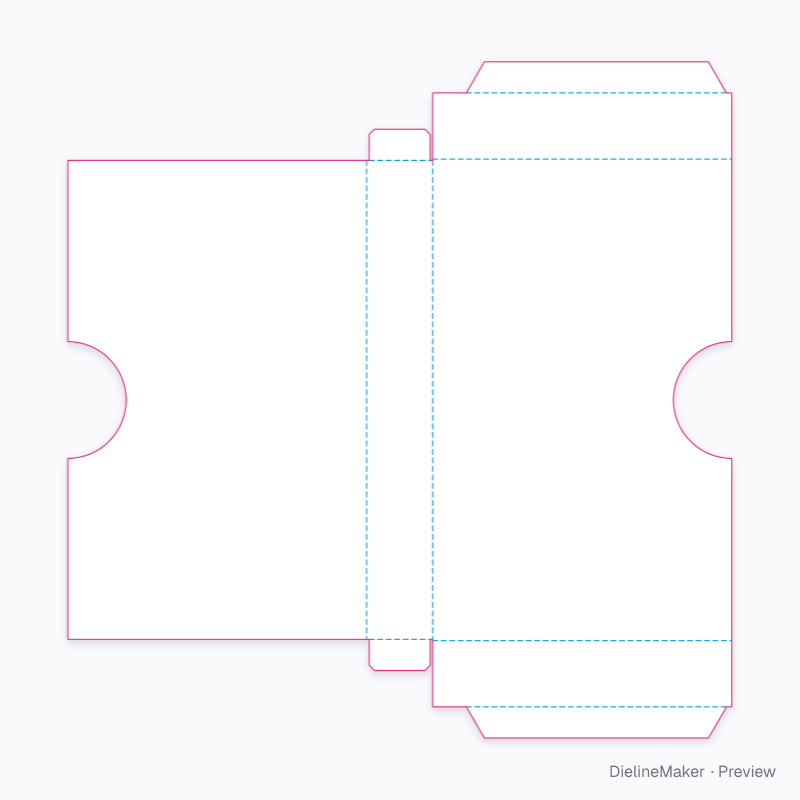

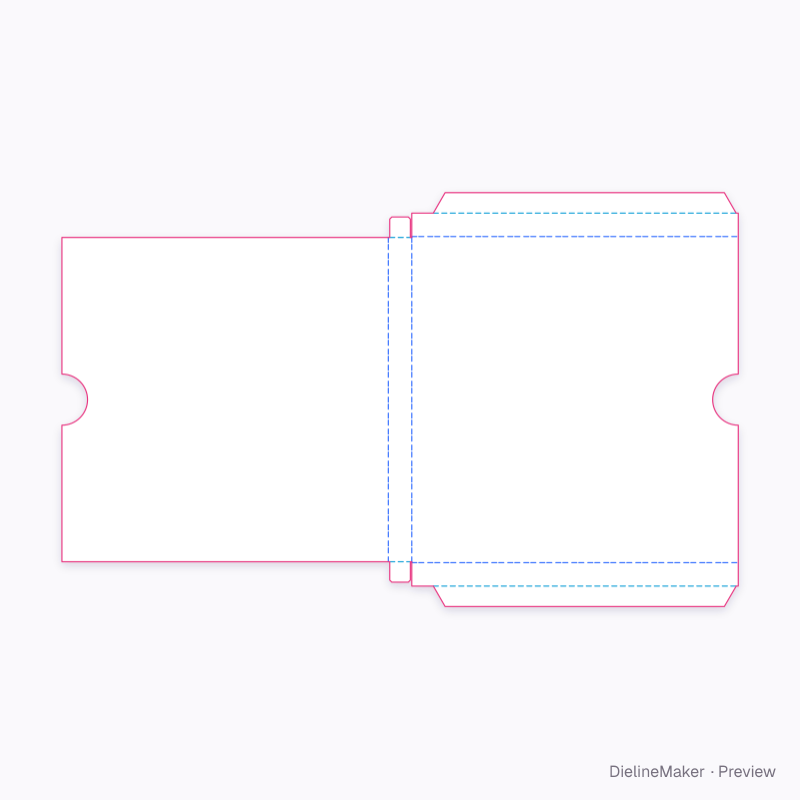

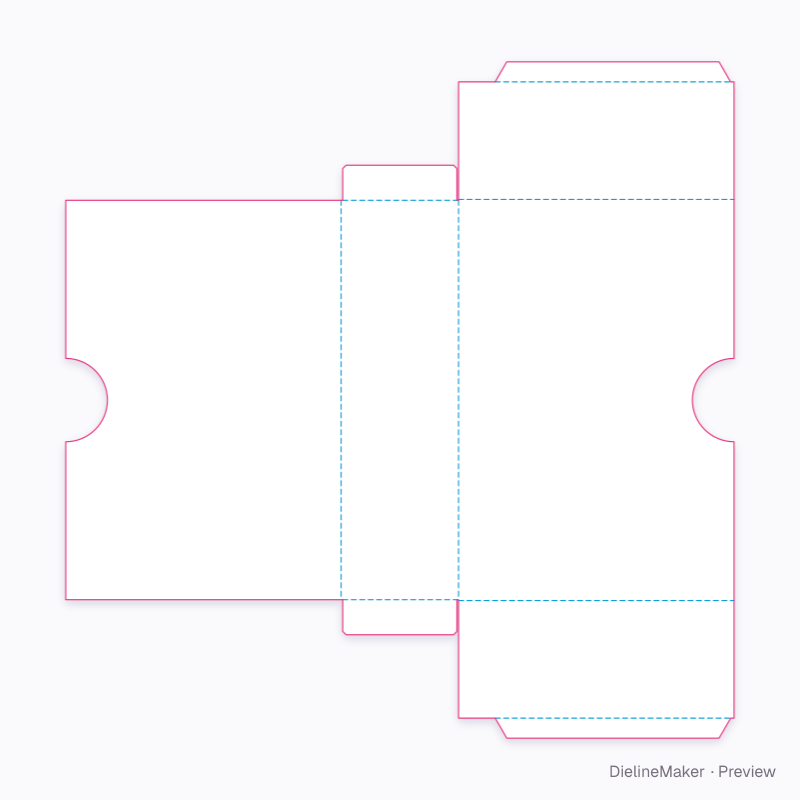

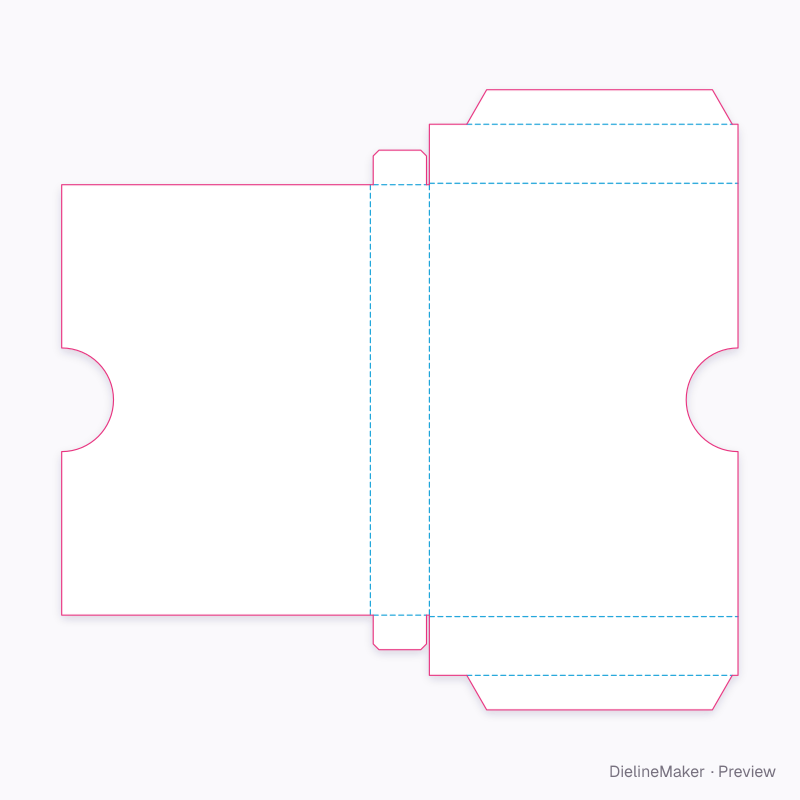

Ready-sized slipcase presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

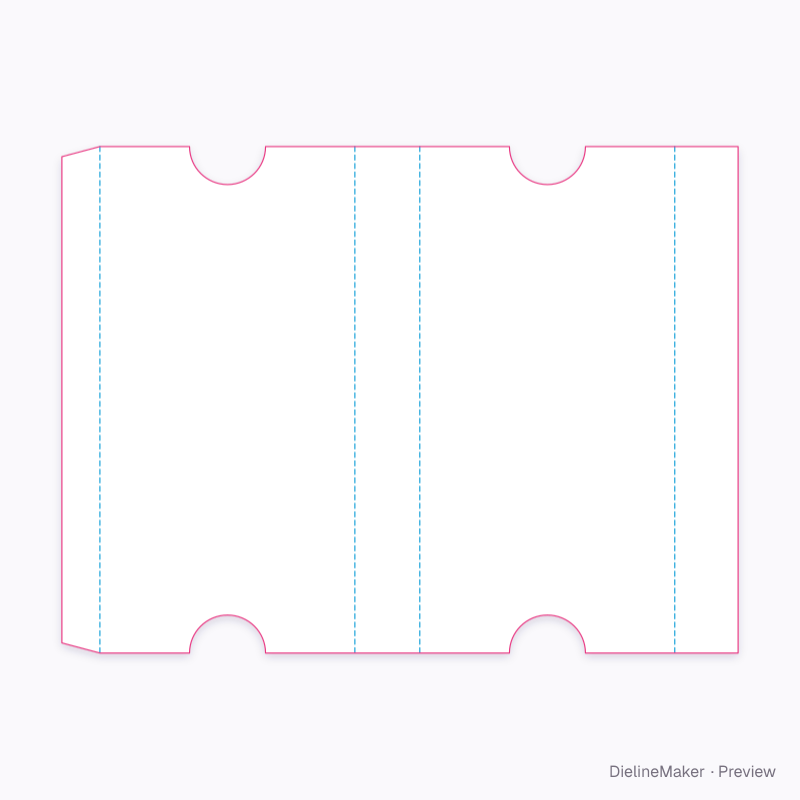

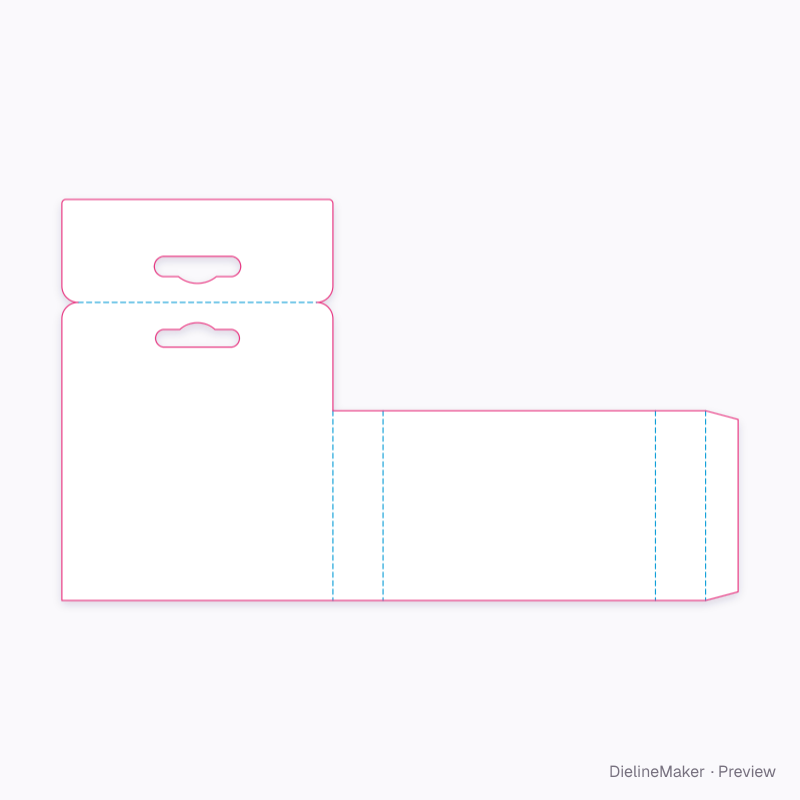

Similar structures
