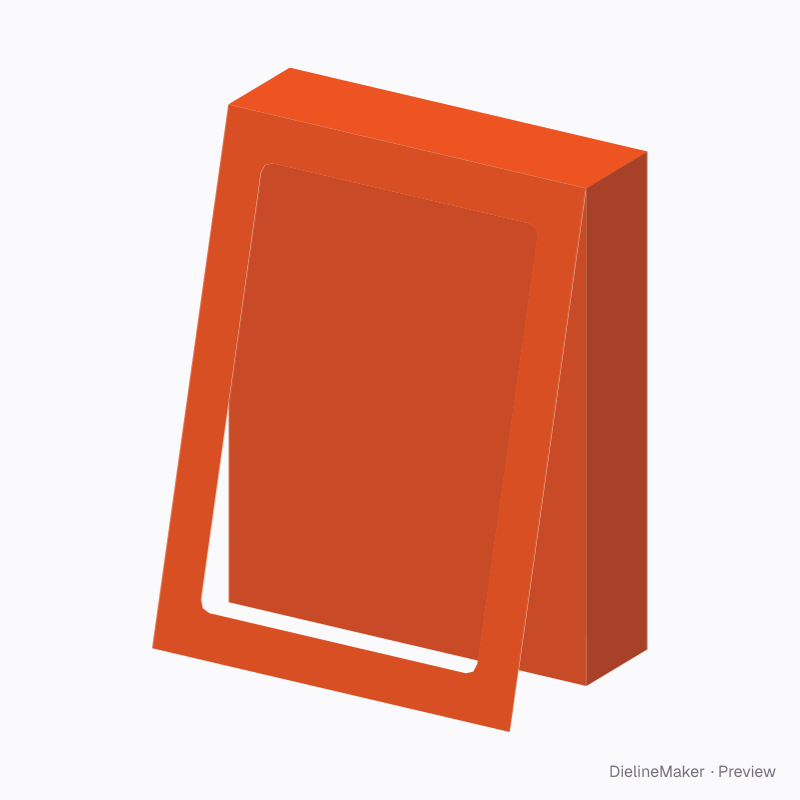

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-EASEL-FRAME-CASE-01Display
Leaning frame with support case dieline
A windowed front frame leaning against a rectangular support case behind it. A ready-sized preset of the easel frame with support case — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 60 × 280 mm
Outside221 × 61 × 281 mm
Flat blank575 × 415 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-EASEL-FRAME-CASE-01
- Inside size
- Width 220 · Case depth 60 · Height 280 mm
- Size range
- Width 80–600 · Case depth 30–300 · Height 80–800 mm
- Manufacturing
- 220.5 × 60.5 × 280.5 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Support case, Easel frame
- Board area
- 0.325 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400E-flute WKraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-EASEL-FRAME-CASE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BackSupport case | 220 × 280 | L × H |
| Left sideSupport case | 60 × 280 | W × H |
| TopSupport case | 220 × 60 | L × W |
| Glue flapSupport case | 216 × 15 | – |
| FrontSupport case | 220 × 280 | L × H |
| Glue flap ×2Support case | 56 × 15 | – |
| Dust flap ×2Support case | 60 × 24 | W × – |
| TuckSupport case | 220 × 15 | L × – |
| Right sideSupport case | 60 × 280 | W × H |
| BaseSupport case | 220 × 60 | L × W |
| Glue flapSupport case | 15 × 276 | – |
| Windowed frameEasel frame | 220 × 289.9 | L × – |
| Frame back ply rollEasel frame | 220 × 0.5 | L × – |
| Frame back ply inner plyEasel frame | 220 × 287.9 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Frame lean°
- Frame bordermm
