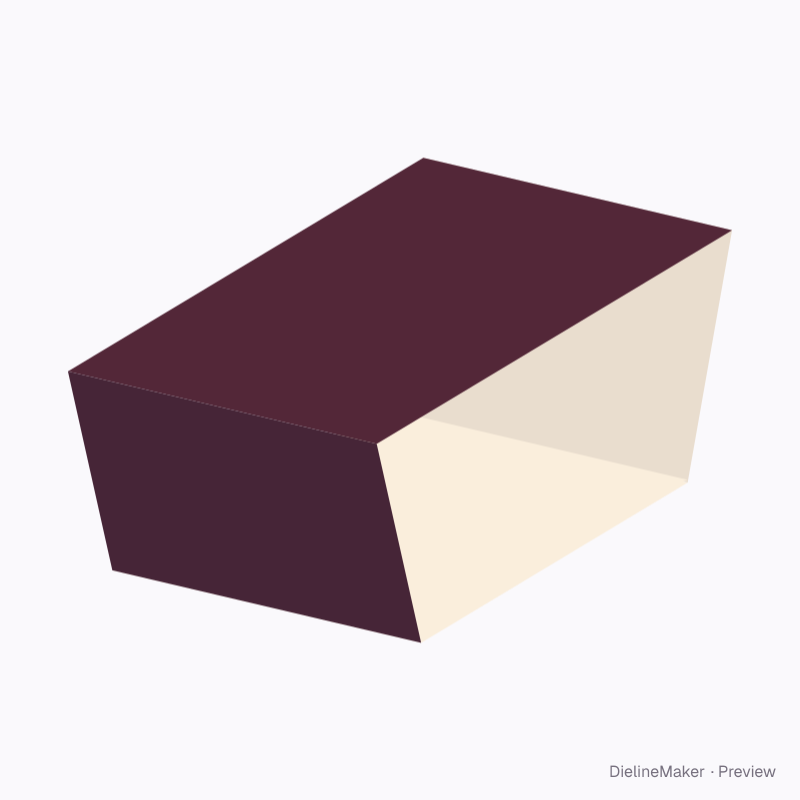

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ANGLED-BAND-01Sleeves
Angled glued band dieline
Angled band glued at a bottom corner, open at both ends. A ready-sized preset of the angled glued sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 110 × 40 mm
Outside61 × 111 × 41 mm
Flat blank60 × 290 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ANGLED-BAND-01
- Inside size
- Length (A) 60 · Top width (B) 110 · Height 40 mm
- Size range
- Length (A) 40–500 · Top width (B) 40–300 · Height 20–200 mm
- Manufacturing
- 60.5 × 110.5 × 40.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.017 m² · about 30 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350PET 0.3SBS 18 pt
- Good for

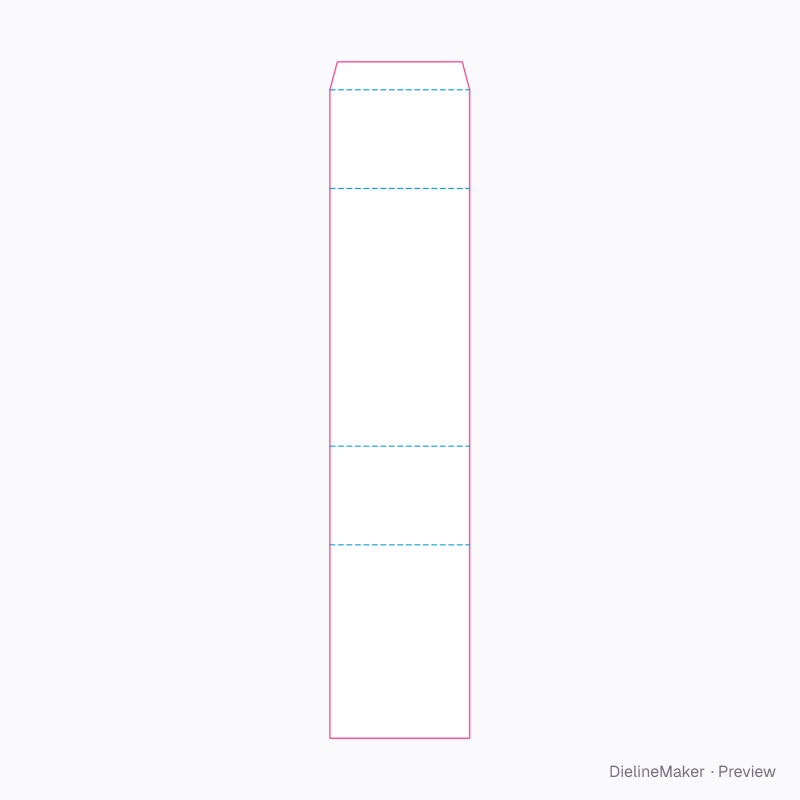

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ANGLED-BAND-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Top | 60 × 110.5 | L × W + T |
| Sloping side ×2 | 60 × 42.3 | L × – |
| Bottom | 60 × 82.9 | L × – |
| Glue flap | 60 × 12 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction3 options
- Bottom width (b)mm
