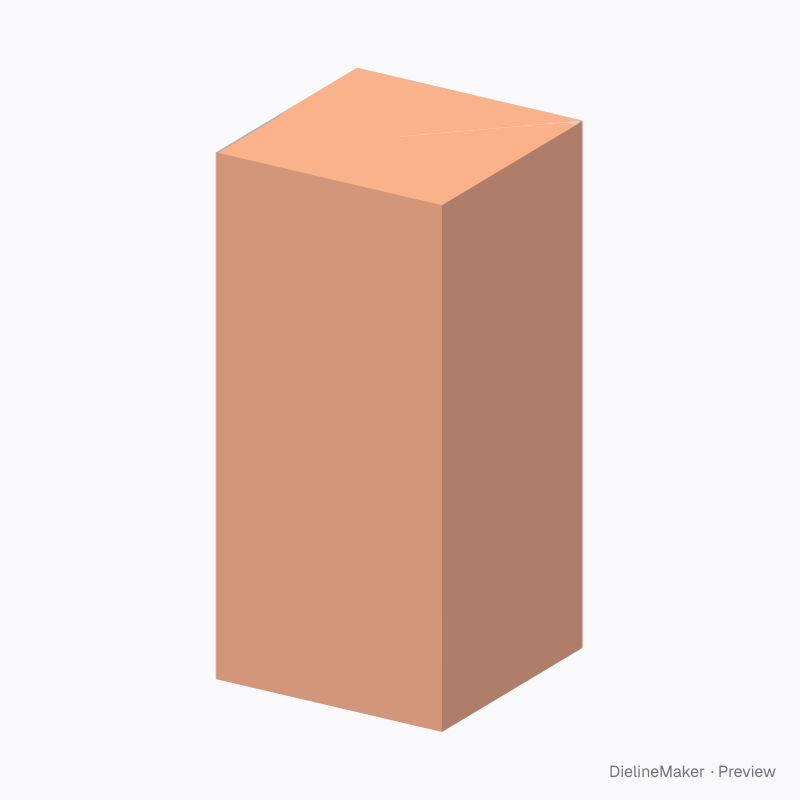

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA A82.82.00.00Tuck end
A82.82.00.00 rosette base / rosette top dieline
Long-seam cartons with winged dustproof, claw-lock, buffer or rosette ends from the ECMA reference, combined with tuck or crash-lock ends. A ready-sized preset of the special-closure folding carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside70 × 70 × 150 mm
Outside71 × 71 × 151 mm
Flat blank293.5 × 256.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A82.82.00.00
- Inside size
- Length 70 · Width 70 · Body height 150 mm
- Size range
- Length 45–400 · Width 20–200 · Body height 30–500 mm
- Manufacturing
- 70.5 × 70.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.068 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A82.82.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 70.5 × 150.5 | – × H + T |
| Left side | 70.5 × 150.5 | – × H + T |
| Back | 70.5 × 150.5 | – × H + T |
| Right side | 70 × 150.5 | – × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| Rosette flap ×6 | 70.5 × 52.9 | – |
| Rosette diagonal fold ×8 | 49.9 × 24.9 | – |
| Rosette flap ×2 | 70 × 52.6 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Construction6 options
- Glue flapmm
- Tuck depthmm
- Buffer heightmm
